SATCO Lighting S11754 30W T8 L...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$20.36

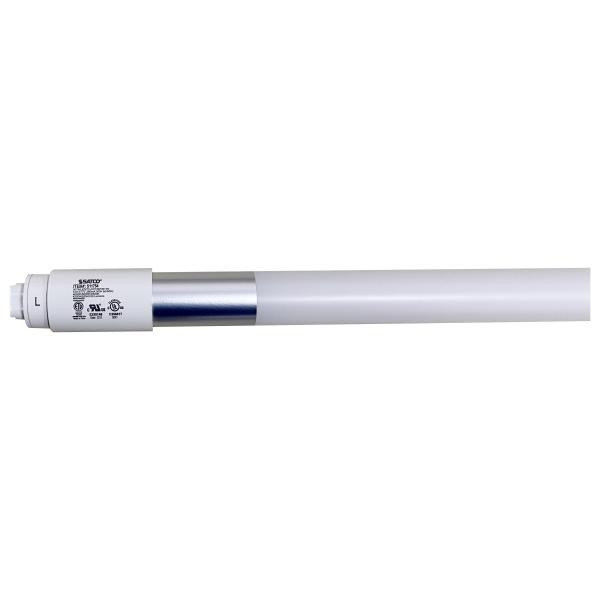

Satco Lighting SAT-S11754 30 Watt T8 LED - Recessed Double Contact HO/VHO Base - CCT Selectable - Type B - Ballast Bypass - PET Shatterproof Coated - White Finish - 72 Inches - 120-277 Volt

SATCO Lighting S11754 30W T8 LED, Recessed Double Contact HO/VHO Base, CCT Selectable, Type B, Ballast Bypass, PET Shatterproof Coated, 72 Inches

(No reviews yet) Write a Review

Model: S11754
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$20.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SATCO Lighting S11754 30W T8 LED, Recessed Double Contact HO/VHO Base, CCT Selectable, Type B, Ballast Bypass, PET Shatterproof Coated, 72 Inches

30 Watt T8 LED - Recessed Double Contact HO/VHO Base - CCT Selectable - Type B - Ballast Bypass - PET Shatterproof Coated - White Finish - 72 Inches - 120-277 Volt

Manufacturer Resources

Product Specs

Amps:
0.250-0.108A
Avg Rated Hours:
50000
Ballasting Requirements:
Ballast Bypass
Burning Position:
Universal
CCT Selectable:
Yes
DLC Approved:
No
FCC Compliant:
Yes
Housing Color:
White
Lamp Filament:
LED
Lamp Shape:
T8
Lens Finish:
Frost
Lens Material:
Glass
Lumens:
4200L/4300L/4100L
Operating Frequency:
50/60Hz
Product Type:
Linear
Three-Way:
No
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Product Group:
Indoor Lighting
Product Subgroup:
Light Bulbs
Bulb Base:
Recessed Double Contact HO/VHO
Base Material:
Glass / Plastic
Incandescent Equivalent:
125W
Location Rating:
Damp
CRI:
83
Subcategory:
LED
Location Indoor/ Outdoor:
Indoor
Title 24 Compliant:
Yes
Bulb Type:
LED
Product Voltage:
120V-277V
Beam Spread Angle:
180
Light Temperature:
4000K/5000K/6500K
Product Category:
Light Bulbs
Product Wattage:
30W
Department:
Electrical

Satco Lighting S11754 – Frequently Asked Questions

1) Do I have to remove the ballast to install this Satco 30W T8 LED tube?
Yes. The S11754 is a Type B ballast bypass lamp, which means the existing fluorescent ballast has to be removed and line voltage wired directly to the sockets. It runs on 120V through 277V at 50/60Hz, so it works on either common commercial circuit once rewired. This is electrician work, not a lamp swap.
2) Can one lamp cover different color temperatures across my building?
The S11754 is CCT selectable between 4000K, 5000K and 6500K, so a single part number covers neutral white through daylight. Output shifts slightly with the setting: 4200 lumens at 4000K, 4300 at 5000K and 4100 at 6500K. CRI is 83 at any setting. That makes it a practical single stocking item for a facility running mixed color temperatures.
3) Is this LED tube safe to use over food prep areas or in a gym?
The lamp carries a PET shatterproof coating, which contains glass fragments if the tube is struck or broken, so it suits areas where falling glass is a concern. It is rated for indoor use and for damp locations, so covered walkways, parking structures and wash-down adjacent areas are within its rating. It is not rated for wet locations.
4) How much load does a 30W T8 LED like this draw per lamp for circuit calculations?
Rated 30 watts with a current draw of 0.250A at the low end of the voltage range down to 0.108A at the high end, across 120V to 277V. Use the figure matching your circuit voltage when counting lamps per branch.
5) Can these be mounted vertically or in a sign cabinet?
Burning position is universal, so the S11754 can be installed horizontally, vertically or at any angle without affecting rated life. With a 180 degree beam spread it throws light out one side of the tube, so orient it toward the space you want lit rather than into the fixture housing.
6) Will this Satco T8 LED qualify for a utility rebate?
It is not DLC approved, so it will not satisfy rebate programs that require a Design Lights Consortium listing. It is Title 24 compliant and FCC compliant, so it works for California energy code projects and for environments sensitive to electrical interference.
7) Is the Satco S11754 a frosted tube or a clear one?
Frost lens on a glass lens body with a white housing, so the diode array is diffused rather than visible as individual points. Base material is glass and plastic. The frost finish is what you want in occupied spaces where a clear tube would read as glare.
