SATCO Lighting S16430 7W T8 LE...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$18.79

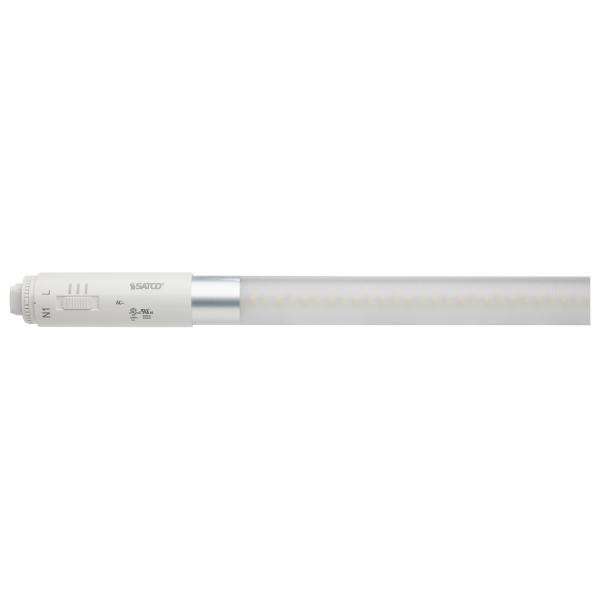

Satco Lighting SAT-S16430 7 Watt T8 LED - CCT Selectable - 120-277 Volt - Single or Double Ended - Type B Ballast Bypass

SATCO Lighting S16430 7W T8 LED, CCT Selectable, 120-277V, Single or Double Ended, Type B Ballast Bypass

(No reviews yet) Write a Review

Model: S16430
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SATCO Lighting S16430 7W T8 LED, CCT Selectable, 120-277V, Single or Double Ended, Type B Ballast Bypass

7 Watt T8 LED - CCT Selectable - 120-277 Volt - Single or Double Ended - Type B Ballast Bypass

Manufacturer Resources

Product Specs

Amps:
0.0583-0.0253A
Avg Rated Hours:
50000
Ballasting Requirements:
Ballast Bypass
Burning Position:
Universal
CCT Selectable:
Yes
DLC Approved:
No
Dimmable:
No
FCC Compliant:
Yes
Lamp Filament:
LED
Lamp Shape:
T8
Lens Finish:
Frost
Lens Material:
Plastic
Lumens:
950L/1000L/900L
Operating Frequency:
50/60Hz
Product Type:
Linear
Three-Way:
No
Warranty:
5 Year Limited - T8 LED Bulbs
Product Group:
Indoor Lighting
Product Subgroup:
Light Bulbs
Bulb Base:
Recessed Double Contact HO/VHO
Base Material:
Polycarbonate (PC)
Incandescent Equivalent:
50W
Location Rating:
Damp
CRI:
83
Subcategory:
LED
Location Indoor/ Outdoor:
Indoor
Title 24 Compliant:
Yes
Bulb Type:
LED
Product Voltage:
120V-277V
Beam Spread Angle:
360
Light Temperature:
4000K/5000K/6500K
Product Category:
Light Bulbs
Product Wattage:
7W

Satco Lighting S16430 – Frequently Asked Questions

1) Do I have to remove the existing fluorescent ballast to install the Satco S16430 T8 LED tube?
Yes. The S16430 is a Type B ballast bypass lamp, so it runs on line voltage and the existing fluorescent ballast has to be removed or disconnected and the sockets rewired to 120-277V. It will not operate on an existing fluorescent ballast. Plan on an electrician for the rewire, since the sockets carry line voltage after conversion.
2) Is the Satco S16430 wired single ended or double ended?
Either. The S16430 accepts single ended or double ended wiring, so it works whether you bring line and neutral to one tombstone or split them to opposite ends of the fixture. That flexibility is useful on a retrofit where you are reusing the existing sockets.
3) How do I set the color temperature on the Satco S16430, and what options does it give?
The lamp is CCT selectable among 4000K, 5000K and 6500K, chosen on the lamp itself rather than ordered as separate part numbers. Output changes with the setting: 950 lumens, 1000 lumens and 900 lumens across the three temperatures. For property managers standardizing a building, one SKU covers all three color choices.
4) Can I put the Satco S16430 LED tube on a dimmer?
No. The 7W T8 is non-dimmable. Wire it to a straight switched line-voltage circuit; leaving it on an existing dimmer can cause flicker or early failure. If the space needs dimming, specify a dimmable LED tube instead.
5) Can this Satco LED tube go in a damp area like a parking garage or covered walkway?
It is rated for damp locations and listed for indoor use, so an enclosed damp interior space is within rating. It is not a wet location lamp, so skip direct exposure to rain or washdown. Burning position is universal, so the fixture can be mounted horizontal or vertical.
6) Will the Satco S16430 qualify for a DLC-based utility rebate?
No. The S16430 is not DLC approved, so it will not qualify under rebate programs that require a DLC listing. It is Title 24 compliant and FCC compliant, which matters for California projects and for electrical noise in occupied spaces. If a rebate drives the job, pick a DLC-listed tube.
7) What circuit load should I figure for a run of these Satco T8 LED tubes?
Each lamp draws 0.0583A at the low end of the voltage range down to 0.0253A at the high end, at 7 watts and 50/60Hz. That lets you load a large number of lamps per 120-277V branch circuit; size the circuit from the actual lamp count and your local code derating.
8) How long will these LED tubes last before maintenance has to go back up the ladder?
Rated average life is 50,000 hours. The lamp body uses a polycarbonate base with a frosted plastic lens rather than glass, so it is less prone to breakage during relamping in corridors, stairwells and back-of-house areas.
