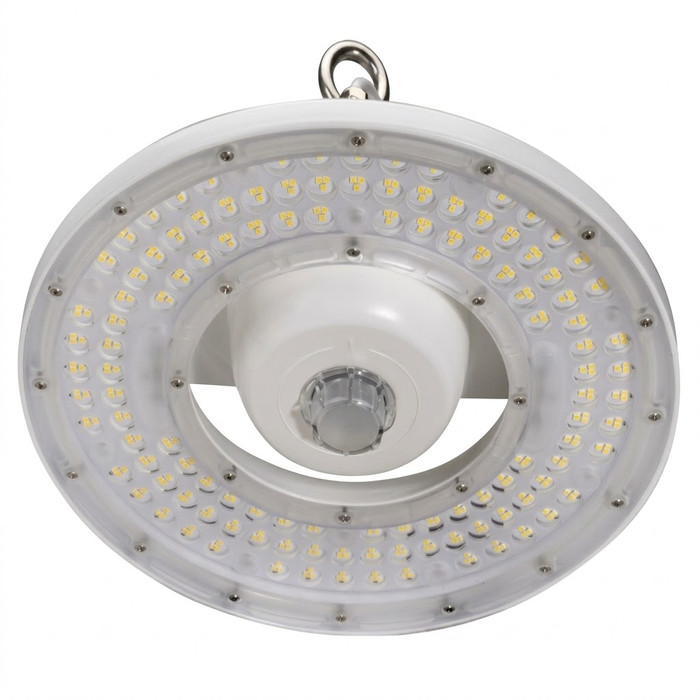

Topaz Lighting Satellite Pro Series 150W LED High Bay Fixture, Aluminum Die-Cast, IP69K, 5000K

Topaz Lighting Satellite Pro Series 150W LED High Bay Fixture, Aluminum Die-Cast, IP69K, 5000K

(No reviews yet) Write a Review

Model: F-LUHB/150/5K/G3

In Stock (leaves warehouse same day if ordered before 3pm ET)

$202.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Topaz Lighting Satellite Pro Series 150W LED High Bay Fixture, Aluminum Die-Cast, IP69K, 5000K

The Topaz Lighting Satellite Pro Series 150W LED High Bay Fixture delivers cutting-edge performance and functionality for demanding commercial and industrial environments including food production areas, warehouses, and gymnasiums. This high-output fixture produces 20,700 lumens at 5000K color temperature, replacing up to 400W HID sources, and is built with a smooth aluminum die-cast housing rated IP69K for maximum resistance to dust, steam, and high-pressure water. The IK08-rated impact-resistant lens and NSF certification make it an ideal solution for food processing facilities that require complete hose-down sanitation procedures. Operating on 120–277V, the Satellite Pro is designed for mounting heights of 20' – 25' and comes fully assembled with a Ring hook with M10 thread, 5 ft safety cable, 6 ft power cord, and 6 ft dimming cord with leads, plus a J-Hook for an additional mounting option.

Key Features

  • High Lumen Output: 20,700 lumens at 150W, delivering efficient 400W HID-equivalent illumination for large open spaces.
  • Color Temperature: 5000K crisp, daylight-quality light ideal for task-intensive environments such as warehouses, gymnasiums, and food production facilities.
  • Durable Aluminum Die-Cast Housing: Smooth aluminum die-cast construction provides superior strength, heat dissipation, and long-term structural integrity.
  • IP69K & IK08 Rated: IP69K rating ensures maximum resistance to dust, steam, and high-pressure water wash-downs; IK08-rated impact-resistant lens protects against mechanical impact.
  • NSF Certified: Rated for food processing facilities requiring complete hose-down sanitation, meeting strict safety and hygiene standards.
  • Wide Voltage Range: Operates on 120–277V for flexible installation across a variety of commercial and industrial electrical systems.
  • Long Lifespan: Rated for 50,000 hours of operation, dramatically reducing maintenance and relamping costs over the fixture's service life.
  • Optional Accessories: Compatible with an optional pre-programmed motion sensor that dims to 10% during vacancy periods, and a remote control for customizing brightness, sensitivity, and standby settings for additional energy savings.
  • Ready-to-Install Mounting: Comes assembled with Ring hook (M10 thread), 5 ft safety cable, 6 ft power cord, 6 ft dimming cord with leads, and J-Hook as an additional mounting option.

Certifications & Compliance

  • IP69K Rated – Maximum resistance to dust, steam, and high-pressure water
  • IK08 Impact-Resistant Lens Rating
  • NSF Certified – Suitable for food processing and sanitation hose-down environments

Technical Specifications

  • list_batch: TOPAZ-20260727

Typical Applications

  • Food Production and Processing Facilities Requiring Sanitation Hose-Down
  • Warehouses and Distribution Centers
  • Gymnasiums and Recreational Facilities
  • Commercial and Industrial High-Bay Lighting Retrofits (400W HID Replacement)
  • Wet and Wash-Down Location Installations
  • New Construction and Renovation Projects Requiring High-Output LED Lighting

Why Topaz Lighting?

Topaz Lighting engineered the Satellite Pro Series with a smooth aluminum die-cast housing, IP69K and IK08 ratings, and NSF certification to meet the most demanding sanitation and durability requirements in professional electrical installations. The 50,000-hour rated lifespan and 120–277V operating range ensure long-term reliability and code-compliant performance across a wide range of commercial and industrial applications. For contractors and facility managers seeking a high-performance, low-maintenance LED high bay solution, the Topaz Lighting Satellite Pro Series delivers proven quality backed by rigorous industry standards.

Product Specs

Product Type:
LED Lamp
Product Wattage:
150W
Light Temperature:
5000K
Listing:
IP69K, IK08, NSF Certified
Department:
Electrical
Product Group:
Lighting
Product Subgroup:
Light Fixtures
Product Material:
Aluminum Die-Cast
Product Color:
Smooth Aluminum Die-Cast

Topaz Lighting F-LUHB/150/5K/G3 – Frequently Asked Questions

1) Will a 150W LED high bay actually replace my 400W metal halide high bays?
Yes. The Topaz Satellite Pro 150W high bay puts out 20,700 lumens at 5000K and is rated to replace HID sources up to 400W. It's aimed at mounting heights of 20 to 25 feet, which is the range most 400W MH bays sit at in a warehouse, so a one-for-one swap at the same mounting point normally works. At 150W draw against 400W plus ballast losses, the connected load drops by roughly two thirds per fixture.
2) Can this high bay be hosed down in a food processing plant?
That's exactly what it's built for. The Satellite Pro carries an IP69K rating, which covers high-pressure, high-temperature water jets as well as dust and steam, and it is NSF certified for food processing areas that require complete hose-down sanitation. The lens is IK08 impact rated, and the housing is smooth die-cast aluminum with no ledges to trap debris.
3) What mounting hardware comes with this high bay, or do I need to order hooks separately?
It ships fully assembled with a ring hook on M10 thread, a 5 ft safety cable, a 6 ft power cord, and a 6 ft dimming cord with leads. A J-hook is also included as a second mounting option. So for a standard chain or aircraft-cable hang you don't need to buy additional mounting hardware, though the branch circuit connection and any chain or cable run to structure are on you.
4) Does the Topaz Satellite Pro high bay work on 277 volts?
It runs on any supply from 120 to 277 volts, so the same fixture works on 120V, 208V, 240V or 277V single phase without ordering a voltage-specific version. That matters if you're standardizing one part number across buildings with different service voltages.
5) Is this high bay dimmable, and can I add occupancy sensing?
A 6 ft dimming cord with leads comes attached, so it wires to a dimming control out of the box. Topaz also offers an optional pre-programmed motion sensor that drops the fixture to 10 percent output during vacancy, plus a remote control for setting brightness, sensitivity and standby behavior. The sensor and remote are separate accessories, not included with the fixture.
6) Do I need a separate wet-location or washdown-rated fixture for a cooler or wash bay?
No separate fixture is needed. The Satellite Pro is rated for wet and washdown location installations, with IP69K sealing against steam and pressure washing and an IK08 lens for impact. It covers the same openings you'd otherwise split between a standard dry-location high bay and a dedicated washdown unit, which is why it gets specified in food production, cooler areas and wash bays alongside general warehouse floor.
7) What's the exact part number for the Topaz 150W Satellite Pro in 5000K?
Order it as Topaz Lighting F-LUHB/150/5K/G3. That's the die-cast aluminum Satellite Pro high bay at 150W, 5000K, G3 generation. The wattage and color temperature are both baked into the part number, so a 4000K or a different wattage in the family will read differently in those positions.
8) Is 5000K the right color temperature for a warehouse or gym?
5000K is the daylight-range output most warehouses, distribution centers and gyms specify, because it reads labels, barcodes and color-coded stock clearly and keeps a space feeling bright at high mounting heights. The Satellite Pro 150W is built at 5000K. If you need a warmer 4000K look to match an office area or a retail front, this fixture won't give you that.
9) How long before I have to get a lift back out to service these?
The fixture is rated for 50,000 hours. On a two-shift operation running around 6,000 hours a year that's better than eight years before you're planning a replacement, which is the main reason facilities move off HID in high-ceiling spaces where every relamp means a lift and a shutdown.
