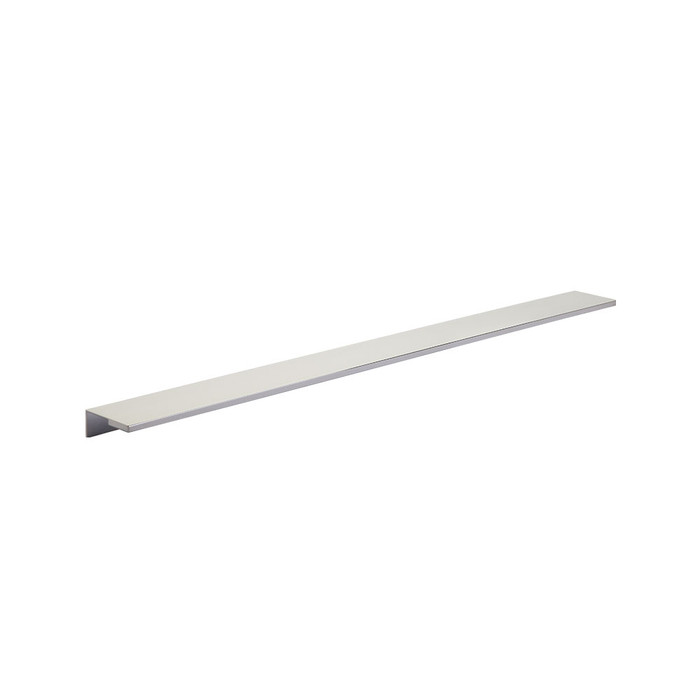

Schaub 211050 321mm Center to Center Borde Edge Pull

Mounting holes on the Borde 211050 are 320 mm center to center, even though the model is commonly listed at 321mm. Drill for 320 mm and use the supplied #6 x 5/8 screws. Overall length is 18.5 inches, so you need a drawer front or door wide enough to carry that full run, not just the 320 mm hole spacing.

The Schaub 211050 Borde is set at 320 mm center to center and runs 18.5 inches overall, which needs a wide drawer front. For narrow drawers, the Trimco 553 series drawer pull is a 3 inch center-to-center pull, and the Trimco 562 series is offered in 3-1/2 inch, 4 inch and 96 mm center-to-center. The Deltana SBP35 square bar pull is 3-1/2 inch.

The Schaub 211050 Borde is an edge pull in a contemporary style with a 320 mm center-to-center spacing and a 1-1/2 inch projection, mounted with #6 x 5/8 screws. If you want a conventional bar-style pull instead of an edge pull, the Emtek Bar Cabinet Pull in the Schaub Collection is a bar series cabinet knob/pull, and the Deltana SBP35 is a modern square bar pull in solid brass. Both are gripped from the face of the door rather than along the edge.

Projection is 1-1/2 inches. That is the clearance you need to plan for in a galley run or where a drawer bank sits opposite an appliance door, and it is enough to get a full hand behind the pull rather than fingertips. The base section measures 5/8 inch.

Five finishes: Polished Chrome, Gold Rande, Matte Black, Matte White, and Nickel Silk. All five are offered on the same Borde 211050 body, so a specifier standardizing a multi-unit job can hold one model number and vary finish by unit or by room.

The Borde 211050 uses #6 x 5/8 screws, which is sized for a standard drawer front. If you are mounting through a thicker slab front or through a front plus an inner drawer box wall, you will need longer #6 machine screws in the same thread. Order those separately; the thread size is what has to match, not the length.

An edge pull like the Borde 211050 mounts so the grip sits at the edge of the door or drawer front rather than centered on the face, which suits flat contemporary slab fronts where you want a clean face and a long horizontal line. If you want a pull that sits on the face of the door, a bar-style pull is the other route, for example the Emtek Bar Cabinet Pull or the Deltana SBP35 square bar pull.

Match on model and finish. The model is Schaub 211050 in the Borde collection at 320 mm center to center, and the finish code is on the hardware order: PC for Polished Chrome, GR for Gold Rande, MB for Matte Black, MW for Matte White, NS for Nickel Silk. Since the base is zinc and aluminum with a plated or coated finish, ordering the same finish code is what keeps a later addition looking like the original run.

The Schaub 211050 Borde is built in zinc and aluminum. If a forged solid brass body is specified, the Omnia 1968/102 modern cabinet pull is forged solid brass with 4 inch center-to-center spacing, and the Omnia 1969, 1970 and 1971 modern pulls are also forged solid brass with projections of 1-3/16 inch, 1-1/4 inch and 1-3/16 inch respectively. All four are face-mounted pulls rather than edge pulls.

A knob uses a single center bore rather than the two-hole 320 mm spacing of the Schaub 211050 Borde, so it is a re-drill, not a swap. If a knob suits the door better, the Orca Hardware CK-15030 Bachelor Collection round cabinet knob and CK-16030 round ring knob are both 1-1/4 inch diameter, and the CK-17025 Blackcomb Collection square knob is 25 mm.

The Schaub 211050 Borde uses a zinc and aluminum body. Where a heavier grip is wanted, the Deltana SBP35 is described as heavy-duty solid brass, and the Orca Hardware CK-12001 T-pull bar is a steel pull with a 2 inch bar width in satin nickel. Both are face-mounted bar pulls rather than edge pulls.

Yes, that is a common layout, long pulls on the drawer bank and knobs on the upper doors. For round knobs the Orca Bachelor Collection CK-15030 is a 1-1/4 inch diameter round knob and the CK-16030 is the ring version at the same diameter; the Orca Blackcomb CK-17025 is a 25mm square knob if you want to echo the squared contemporary lines of the Borde.
