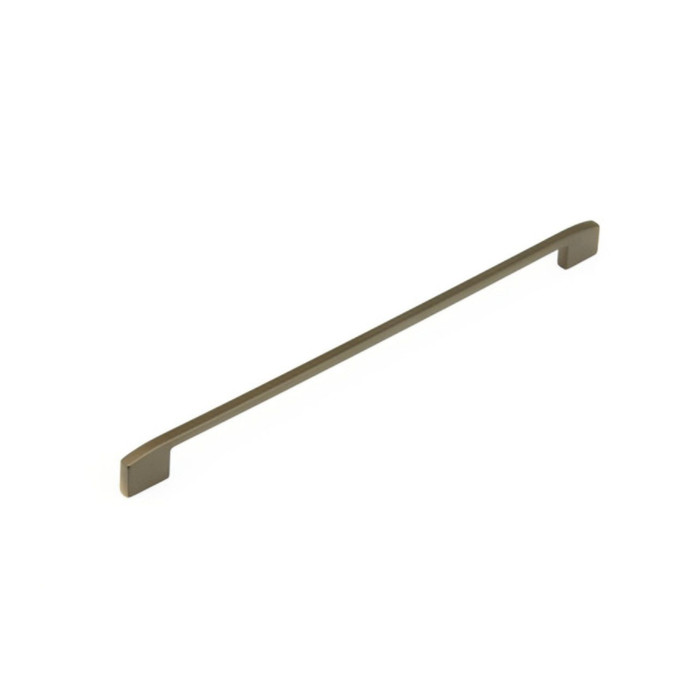

Schaub 314 288mm to 320mm Center to Center Sorrento Cabinet Pull

Yes. The Sorrento 314 pull is drilled for both 288mm and 320mm center-to-center, so it drops onto existing holes at either spacing without redrilling. Overall length is 13 inches, so allow for that on the drawer face.

Mounting is M4 metric, and the supplied screws are 1 inch long. That covers a standard 3/4 inch drawer front or door with thread left to engage the pull. If you are mounting through a thicker front or a front with an applied panel, you will need longer M4 screws, sourced separately.

The Schaub 314 Sorrento pull is a contemporary cabinet pull built on a zinc base material with a 1 inch projection. If solid brass construction is the requirement, the Omnia 1970 Modern Cabinet Pull is forged solid brass with a 1-1/4 inch projection, and the Omnia 1969 and Omnia 1971 Modern Cabinet Pulls are forged solid brass with a 1-3/16 inch projection. The Deltana SBP35 Modern Square Bar Pull is also solid brass and heavy-duty in a 3-1/2 inch size.

The Schaub 314 Sorrento pull is drilled for 288mm/320mm center-to-center and measures 13 inches overall, so it will not land on short existing holes. For 3 inch centers, the Trimco 553 Series drawer pull is a 3 inch center-to-center pull. The Trimco 562 Series is offered in 3-1/2 inch, 4 inch, and 96mm center-to-center options, and the Omnia 1968/102 Modern Cabinet Pull is a forged solid brass pull with 4 inch center-to-center spacing.

Projection is 1 inch, with a 1 inch base dimension. That gives roughly enough hand clearance for a gripped pull while keeping the bar close to the face, which matters on drawers next to an adjacent wall or a perpendicular cabinet run.

Six finishes: Satin Nickel, Polished Chrome, Black Chrome, Matte Black, Milano Bronze, and Milano Silver. All six are the same pull body, so you can run one finish across a full cabinet package and keep 288mm and 320mm openings consistent.

Cabinet knobs are the common mix-up. The Orca Hardware CK-15030 and CK-16030 Bachelor Collection are round cabinet knobs at 1-1/4 inch diameter, and the CK-17025 Blackcomb Collection is a 25mm square cabinet knob. All three mount on a single hole, while the Schaub 314 Sorrento is a two-hole pull at 288mm/320mm center-to-center using M-4 metric screws 1 inch long. Knobs cannot fill a drilled pull pattern.

Emtek carries the Schaub Collection under its own part numbers, including the Emtek 8405 Select cabinet pulls and the Emtek Alexander, Art Deco, and Bar cabinet pulls. Those are separate series from the Sorrento collection that the Schaub 314 belongs to, so the styling differs, but they come from the same Schaub Collection line if you are consolidating a cabinet package under Emtek numbers.

Schaub designs are also carried under the Emtek Schaub Collection, which includes the Alexander, Art Deco, and Bar cabinet pulls, plus the Emtek SELECT 8405 cabinet knobs and pulls. Those give you other profiles in the same design family if the contemporary Sorrento bar is not the look you want.

Yes, a Proposition 65 warning applies for California residents, and Schaub publishes the details on its product stewardship page. Worth noting if you are supplying a job in California with disclosure requirements.

The Schaub 314 Sorrento pull is offered in Satin Nickel (SN), along with Polished Chrome, Black Chrome, Matte Black, Milano Bronze, and Milano Silver. If a different profile is wanted in satin nickel, the Orca Hardware CK-12001 T-Pull Bar is supplied in satin nickel with a 2 inch bar width in steel.
