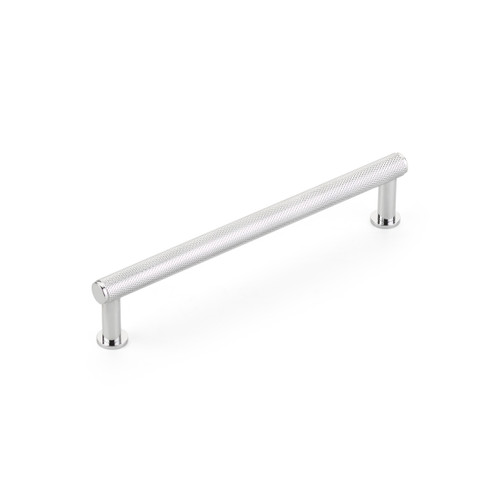

Schaub 5106 6" Center to Center Pub House Cabinet Pull

Yes. The 5106 Pub House pull is built on 6 inch center-to-center hole spacing, so it lands on existing 6 inch bores with no re-drilling. Overall length is 6-1/2 inches, meaning the posts sit only about a quarter inch in from each end, so it will cover very little of the old hardware footprint if you are replacing something longer.

The 5106 uses standard #8-32 machine screws, supplied at 1 inch length. That covers typical 3/4 inch cabinet doors and drawer fronts. If you are mounting to a thicker slab door, a thick applied front, or a drawer face with an added panel, you will need longer #8-32 screws; the thread size stays the same, only the length changes.

A 6 inch center pull suits wide drawer banks and full-height pantry or appliance doors, where a short pull looks undersized and does not spread the load. For smaller drawers and standard base cabinet doors, step down: Trimco's 553 Series drawer pull runs 3 inch centers, and the 562 Series offers 3-1/2 inch, 4 inch, and 96mm centers. Many kitchens mix a short pull on doors with a 6 inch pull on the big drawers.

The Schaub 5106 Pub House pull is fixed at 6 inch center-to-center with a 6-1/2 inch overall length, so it will not drop into a narrower drawer front. For tighter spacing in forged solid brass, the Omnia 1968/102 modern cabinet pull is built at 4 inch center-to-center. If you need to go shorter still, the Deltana SBP35 modern square bar pull is a 3-1/2 inch heavy-duty solid brass pull, and the Trimco 553 series drawer pulls are 3 inch center-to-center. All three mount on the same two-hole drawer pattern principle, just on a shorter bore spacing, so confirm the existing hole centers before ordering.

Projection is 1-1/4 inches, measured from the face of the door to the outside of the grip. That is enough clearance to get a gloved hand or full grip behind it, and it is worth checking against any adjacent wall, appliance panel, or inside corner where a door swings past a neighbouring run.

Solid brass is the base material on the Pub House 5106, including the matte black and polished chrome versions, where the finish is applied over the brass body. Solid brass holds threads better at the post than zinc alloy and is the reason this one works in multi-unit kitchens and hospitality casework that see constant pulling.

Five: Polished Chrome (PC), Brushed Nickel (BN), Matte Black (MB), Polished Nickel (PN), and Signature Satin Brass (SSB). If you are matching a kitchen already running Schaub, stay inside the Pub House collection so the bar profile and 1/2 inch base dimension line up across knobs, pulls, and appliance pulls.

The 5106 belongs to Schaub's Pub House collection and is offered as a cabinet pull only. Emtek sells the Schaub Collection under its own program, including the Emtek 8405 Select cabinet pulls, the Alexander cabinet pull, the Art Deco cabinet pull, and the Bar cabinet pull - all catalogued as cabinet knob/pull, meaning the series covers both knob and pull formats. That is the route to take when a job needs knobs on doors and pulls on drawers in one coordinated family rather than a single pull profile.

No - not without redrilling. The 5106 Pub House pull uses two bores at 6 inch center-to-center with #8-32 x 1 screws. A knob such as the Orca Hardware Bachelor Collection round pull knob at 1-1/4 inch diameter, the Bachelor round ring knob at 1-1/4 inch diameter, or the Blackcomb square knob at 25mm is a single-hole mount. Knobs are a common choice on doors and small drawers, but swapping one in for a 6 inch pull leaves an open hole in the face unless the front is replaced or plugged.

The Schaub 5106 Pub House pull is solid brass, finished in polished chrome, brushed nickel, matte black, polished nickel or signature satin brass. If the specification calls for steel instead, the Orca Hardware CK-12001 T-pull bar is a steel pull with a 2 inch bar width in satin nickel. Trimco's 562 series drawer pulls are another commercial-oriented option and give you 3-1/2 inch, 4 inch and 96mm center-to-center choices, which is useful when you are standardizing bore spacing across a facility.

The Pub House 5106 is a contemporary-style pull with a 1/2 inch base at the posts, which reads cleanly on flat-panel and slab fronts. On heavily detailed raised-panel doors the flat bar profile will look deliberately modern rather than period, so it is a design choice, not a mismatch.
