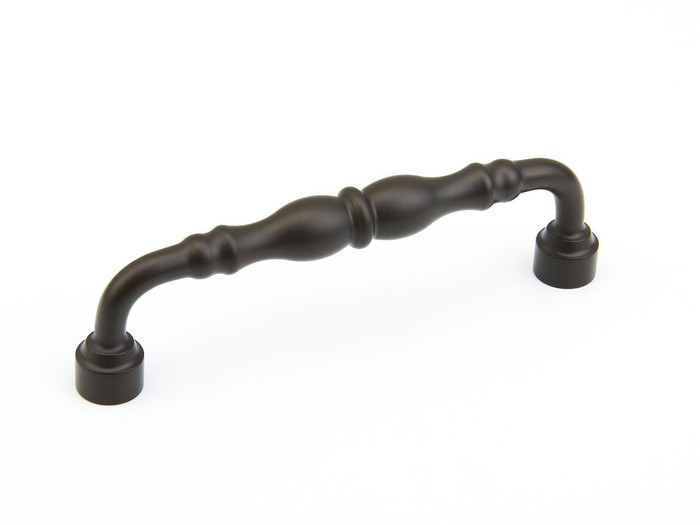

Schaub 748 6" Center to Center Colonial Cabinet Pull
Style: Traditional
Collection: Colonial
Function: Cabinet Pull
Projection: 1-7/8
Base Material: Solid Brass
CA Residents: Proposition 65 Warning
Base Dimensions: 3/4
Overall: 6-5/8
Center to Center: 6"
Thread / Screw Size: 1/4 20 x 1
Manufacturer Resources
Product Specs
- Subcategory:
- Cabinet Pulls
- Collection:
- Colonial
- Product Type:
- Cabinet Pulls
- Product Group:
- Cabinet Hardware
- Product Subgroup:
- Cabinet Pulls
- MAP Policy:
- Yes
- Overall:
- 4-5/16"
- Thread / Screw Size:
- 8/32 thread x 1"
- Product Function:
- Cabinet Pull
- Product Dimension:
- 7/16"
- Product Projection:
- 1-3/16"
- Product Style:
- Traditional
- Product Material:
- Solid Brass
- Product Category:
- Cabinet Hardware
- (CTC) Center-to-Center:
- 4"
- Department:
- Door Hardware
Schaub 748-SB – Frequently Asked Questions
1) What finishes does the Schaub 748 Colonial cabinet pull come in?
Eight finishes: Oil Rubbed Bronze, Satin Nickel, Polished Chrome, Antique Nickel, Aurora Bronze, Flat Black, Polished Nickel and Satin Brass. That range covers both the warm traditional looks (Aurora Bronze, Satin Brass, Oil Rubbed Bronze) and the cooler nickel and chrome tones, so a kitchen or millwork package can be matched to whatever faucet and appliance finish is already going in. If you're phasing a job over time, order the full door and drawer count in one finish run rather than piecing it out, since plated and living finishes can shift slightly between production batches.
2) I need drawer pulls at 3 inch or 3-1/2 inch centers to match existing holes. What else is available?
If your existing boring doesn't line up with the Schaub 748, Trimco's 553 Series drawer pulls are 3 inch center-to-center, and the 562 Series comes in 3-1/2 inch, 4 inch and 96mm center-to-center. Omnia's 1968/102 is a 4 inch center-to-center pull in forged solid brass. Measure hole center to hole center on the existing front, not the overall pull length, before you pick.
3) What is a modern-styled alternative to the Schaub 748 Colonial cabinet pull in solid brass?
The Schaub 748 Colonial pull is a traditional-style solid brass pull. If the kitchen or millwork package calls for a contemporary profile instead, the Omnia 1968/102 is a modern cabinet pull in forged solid brass with 4 inch center-to-center spacing, which matches the 4 inch center-to-center hole spacing the Schaub 748 uses. The Deltana SBP35 is another solid brass option, a modern square bar pull at 3-1/2 inch. Same base material, different design language, and the Omnia keeps you on existing drill centers.
4) For a commercial millwork or institutional casework job, what drawer pull would I use instead of the Schaub 748?
The Schaub 748 is a solid brass Colonial pull aimed at residential and decorative cabinetry. For institutional casework where the finish schedule leans utilitarian, the Trimco 562 Series drawer pull is offered in 3-1/2 inch, 4 inch, and 96mm center-to-center, and the 4 inch option lands on the same hole spacing as the Schaub 748. The Trimco 553 Series is a 3 inch center-to-center drawer pull, which would require new boring if you are replacing 748s. The Orca Hardware CK-12001 is a steel T-pull bar with a 2 inch bar width in satin nickel, another option where a brass decorative profile is not wanted.
5) Which pulls can replace a Schaub 748 without drilling new holes in the drawer front?
The Schaub 748 Colonial pull mounts on 4 inch center-to-center spacing with 8/32 thread by 1 inch screws. To reuse the existing bores, you need another 4 inch center pull: the Omnia 1968/102 is a forged solid brass pull at 4 inch center-to-center, and the Trimco 562 Series includes a 4 inch center-to-center option. The Deltana SBP35 at 3-1/2 inch and the Trimco 553 Series at 3 inch will not land on 748 holes. Confirm screw length against your drawer front thickness when switching brands.
6) Is the Schaub 748 Colonial pull solid brass or a plated zinc casting?
Solid brass. That matters on cabinetry that gets pulled on all day, like a rental turn kitchen or a hospitality casegoods package, because a brass body threads and holds up where a zinc die casting can crack at the post. It also means the pull carries weight in the hand, which is the feel most people expect from a traditional Colonial-style pull rather than a light stamped one.
7) Will the Schaub 748 pull work on both cabinet doors and drawer fronts?
Yes, it's a cabinet pull and mounts the same way on either. Two through-holes at the stated center-to-center spacing, machine screws from the back. On drawer fronts with an applied face or a thick slab front you may need longer screws than the ones supplied, so check your front thickness plus any back panel before you set the job up.
8) I want a traditional look, not a modern bar pull. Is the Schaub Colonial the right choice?
The Schaub 748 is from the Colonial collection and is catalogued as a traditional style, so it suits shaker, raised panel and period millwork. If you're after the opposite look, the Omnia 1968, 1969, 1970 and 1971 series are modern forged solid brass pulls, the Deltana SBP35 is a modern square bar pull, and the Orca CK-12001 is a steel T-bar pull. Mixing a traditional pull on perimeter cabinets with a modern bar on an island rarely reads well, so pick one direction for the whole package.
9) I need a pull with less projection than the Schaub 748 for a tight drawer run - what else is there?
The Schaub 748 Colonial pull projects 1-3/16 inch off the face. The Omnia 1969 and Omnia 1971 both carry the same 1-3/16 inch projection, so neither buys you clearance. The Omnia 1970 stands off further at 1-1/4 inch. If the concern is knuckle clearance in a galley or against an adjacent appliance panel, a knob is the usual answer - the Orca Hardware CK-15030 Bachelor Collection round knob is 1-1/4 inch diameter and mounts on a single hole rather than the 4 inch centers the 748 requires.
10) What looks like a substitute for the Schaub 748 cabinet pull but is not one?
Two things to rule out. Cabinet knobs are not drop-in replacements - the Orca Hardware CK-16030 round ring knob and CK-17025 Blackcomb square knob are single-hole cabinet knobs, so they cannot use the 4 inch two-hole pattern the Schaub 748 mounts on. And the SDC SP50 50MM Spindle is a door control component, not cabinet hardware at all, despite sometimes surfacing alongside pull searches. If the drawer is already bored for a 748, stay with a two-hole pull.
11) Can I get matching knobs in the same Schaub styling for the smaller doors?
Schaub styling is also carried under the Emtek SELECT program, which lists the Schaub Collection as knob and pull options, including the Alexander, Art Deco and Bar series. For plain round knobs on upper doors, the Orca Bachelor Collection offers a 1-1/4 inch round knob and a 1-1/4 inch round ring knob. Match by finish name and confirm the finish reads the same in person before committing the whole kitchen.
