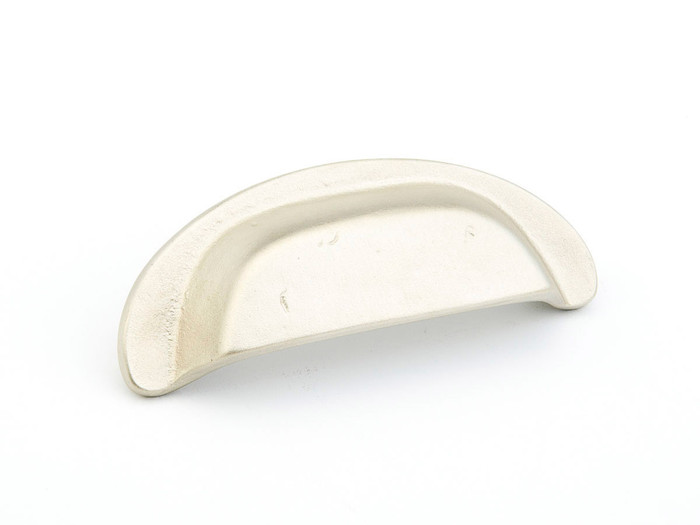

Schaub 775 3-1/2" Center to Center Mountain Cup Pull

The 775 uses 8/32 thread screws at 1 inch long. That length suits a standard 3/4 inch drawer front with a little thread to spare. If you are mounting through a thicker front, an applied panel, or a face with a backer, you will need longer 8/32 machine screws, since the supplied 1 inch screw will not reach.

The Trimco 562 Series drawer pull is offered in a 3-1/2 inch center-to-center option, matching the 3-1/2 inch center-to-center spacing of the Schaub 775 Mountain cup pull, so it drops onto the same two-hole drawer boring. The Schaub 775 is a cast bronze cup pull in the rustic Mountain collection with a 4-1/8 inch overall length and 1 inch projection; the Trimco 562 is a drawer pull series rather than a cup-style pull, so the look at the drawer face changes even though the hole centers do not.

Use the Trimco 553 Series drawer pull, which is a 3 inch center-to-center pull. The Schaub 775 Mountain cup pull is fixed at 3-1/2 inch center-to-center, so it will not land on existing 3 inch boring without redrilling the drawer front.

The Omnia 1968/102 modern cabinet pull is a forged solid brass pull with 4 inch center-to-center spacing, and the Trimco 562 Series is also offered in a 4 inch center-to-center option. The Schaub 775 Mountain cup pull is a 3-1/2 inch center-to-center part only, so it will not reuse 4 inch boring.

Projection is 1 inch from the face of the drawer. That is enough finger room for a cup pull while staying tight to the cabinet, which matters in a galley kitchen or a tight hallway where drawers sit in a walkway.

Cast bronze. It is a solid cast part, not a plated zinc casting, which is why the finishes on it (including Natural and Natural Bronze) read as living metal rather than paint.

Seven: Antique Silver (AS), Antique Bronze (AZ), Dark Pewter (DP), Italian Nickel (IN), Natural (N), Natural Bronze (NB), and Verde Imperiale (VI). If you are matching an existing kitchen or a run of cabinetry, order all the pulls in one go, since cast bronze finishes vary slightly batch to batch.

A cup pull like the Schaub 775 is a drawer-only shape; you pull up into the cup, so it works on drawers and on hinged doors only if you are content pulling from underneath. Cup pulls suit a rustic or traditional kitchen. If the doors and drawers need to match on a modern job, a straight bar such as the Omnia 1968 or the Deltana SBP35 square bar pull in 3-1/2 inch centers works on both.

For the same 3-1/2 inch drilling in a plainer profile, the Trimco 562 Series drawer pull is offered in 3-1/2 inch, 4 inch, and 96mm centers. The Trimco 553 Series is 3 inch centers only, so it will not reuse 3-1/2 inch holes. Within the Schaub design family, Emtek also sells Schaub Collection pulls such as the Alexander and Art Deco patterns.

The Deltana SBP35 Modern Square Bar Pull is a 3-1/2 inch solid brass bar pull from the SBP Series, giving a squared modern profile at the same 3-1/2 inch dimension as the Schaub 775 Mountain cup pull. The Schaub 775 is a cast bronze cup pull in a rustic style with a 1 inch projection, so the two read very differently on a cabinet face.

The Schaub 775 Mountain cup pull projects 1 inch from the cabinet face. If you want more grip room, the Omnia 1970 modern cabinet pull is a forged solid brass pull with a 1-1/4 inch projection, and the Omnia 1969 and Omnia 1971 both carry a 1-3/16 inch projection. All three are modern-profile pulls rather than cup pulls, so plan on a different look at the drawer.

The 775 is the 3-1/2 inch center to center Mountain cup pull. For a kitchen with mixed drawer widths, keep the 775 on the drawers and pick up matching knobs or pulls from the same Schaub Mountain collection rather than mixing collections, so the casting texture and finish stay consistent across the run.

Yes, that is a common split. The Orca Hardware Bachelor Collection CK-15030 round knob and CK-16030 round ring knob are both 1-1/4 inch diameter, and the Blackcomb CK-17025 is a 25mm square knob - all single-hole knobs that mount on doors without the two-hole boring the Schaub 775 needs at 3-1/2 inch center-to-center. Note the Schaub 775 is cast bronze in rustic Mountain styling, so match the finish family carefully if you mix.
