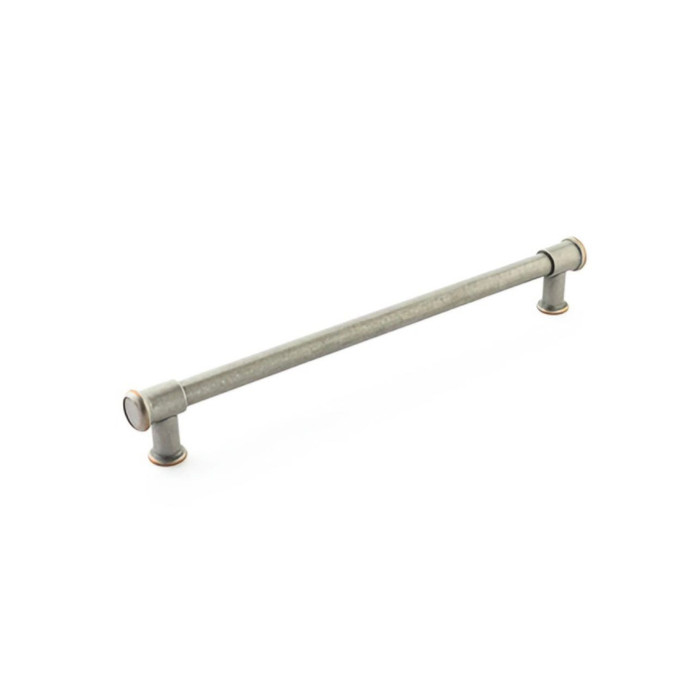

Schaub CS79-15 Concealed Surface Mounted Steamworks 15" Appliance Pull

The mounting screws are hidden. The CS79-15 fastens through the face of the door or panel rather than from behind it, and the posts cover the fasteners so no screw heads show. That matters on appliance panels and false fronts where you cannot get behind the surface to run a machine screw through from the back. The pull uses 1/4 x 20 thread.

The Schaub CS79-15 is a 15 inch center-to-center appliance pull with a 17 inch overall length, so it will not land on standard cabinet boring. For 3 to 4 inch spacing, the Trimco 553 Series drawer pull is offered at 3 inch center-to-center and the Trimco 562 Series at 3-1/2 inch, 4 inch, and 96mm center-to-center. The Omnia 1968/102 modern cabinet pull is a forged solid brass pull with 4 inch center-to-center spacing, and the Deltana SBP35 is a modern square bar pull at 3-1/2 inch in solid brass.

Projection is 2-1/4 inches, with a 1 inch base. That is a deep grip, which is what you want on a full-height refrigerator or freezer panel you are pulling against a gasket seal, but check your clearance if the appliance sits in a tight galley run or next to a perpendicular wall or door swing.

Four: Satin Nickel (SN), Brushed Bronze (BBZ), Distressed Pewter/Copper (DPC), and Empire Bronze (EBZ). DPC is a two-tone distressed treatment, so if you are matching a run of cabinet pulls across a kitchen, order all the Steamworks pieces in the same finish code at the same time for consistency.

No. Cabinet pulls commonly use 8-32 machine screws; this appliance pull takes 1/4 x 20, a heavier thread suited to the load of a refrigerator or freezer panel. Do not try to mount it with the 8-32 screws left over from your cabinet pulls.

No. The CS79-15 is a two-post appliance pull with 15 inch center-to-center spacing and 1/4 x 20 screws, so a single-hole knob will not cover the existing boring. Knobs such as the Orca Hardware CK-15030 round knob at 1-1/4 inch diameter, the CK-16030 round ring knob at 1-1/4 inch diameter, and the CK-17025 square knob at 25mm diameter mount on one hole and are intended for doors and drawers, not for a refrigerator or panel-front appliance door.

The CS79-15 stands off 2-1/4 inch, which is what gives an appliance pull room for a full grip. In a tight walkway or next to an adjacent return, the lower-projection options are the Omnia 1969 and 1971 at 1-3/16 inch and the Omnia 1970 at 1-1/4 inch. Those are cabinet pulls rather than appliance pulls, so confirm the boring matches before substituting.

The CS79-15 is Schaub's Steamworks collection in a transitional style, so it reads as a bridge between traditional and modern. For matching knobs and smaller pulls on the same job, Emtek carries the Schaub collection under its SELECT program, including the Bar, Alexander, and Art Deco cabinet pulls.

Not on a single part number. The Schaub CS79-15 covers the appliance openings at 15 inch center-to-center with a 17 inch overall length, and drawers and doors take a shorter pull. A common approach is the CS79-15 on the panel fronts paired with a Trimco 553 Series drawer pull at 3 inch center-to-center or a Trimco 562 Series at 3-1/2 inch, 4 inch, or 96mm center-to-center for the cabinetry. Match the finish across both, since the CS79-15 comes in Satin Nickel, Brushed Bronze, Distressed Pewter/Copper, and Empire Bronze.
