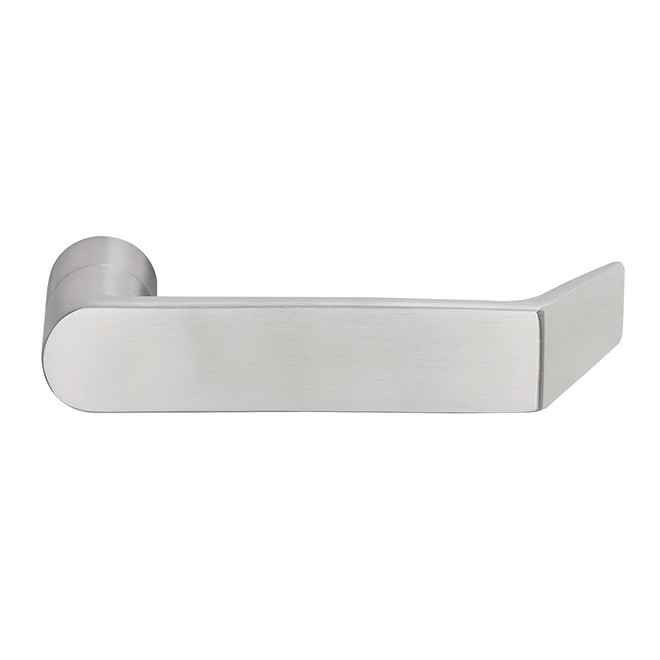

Schlage 09-402 Inside Lever with Bushing — L Series Replacement Trim
The Schlage 09-402 is the inside lever and locking bushing assembly for Schlage L Series commercial mortise locks. It is ordered as a replacement or upgrade trim component when the inside lever needs to be changed independently of the outside trim or lock body. The locking lever bushing eliminates exposed screws on inside levers, maintaining a clean, tamper-resistant appearance on the secure side of the door.
Compatibility
Designed for use with Schlage L Series mortise lock bodies. Confirm your existing lock body model and door prep before ordering. The 09-402 is a trim-only component — it does not include the lock case, cylinder, or outside trim.
Lever Styles Available
- 01, 02, 03, 05, 06, 07, 17, 18 Levers (non-handed)
- 12 Lever — specify Left Hand (LH) or Right Hand (RH)
- LAT — Latitude Lever (non-handed)
Finishes Available
- 605 Bright Brass
- 606 Satin Brass
- 609 Antique Brass
- 612 Satin Bronze
- 613 Oil Rubbed Bronze
- 619 Satin Nickel
- 622 Matte Black
- 625 Bright Chrome
- 626 Satin Chrome
- 629 Bright Stainless Steel
- 630 Satin Stainless Steel
- 643E Aged Bronze
Key Features
- Locking lever bushing eliminates exposed screws on the inside lever
- Commercial-grade construction — L Series meets ANSI/BHMA Grade 1 standards
- All L Series levers suite with Von Duprin exit devices and related L Series products (LE, LM9200, LM9300, LT)
- Levers meet ADA return-to-door requirements (1/2" or less)
Downloads & Resources
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- L Series
- Product Type:
- Lock Trim
- Subcategory:
- Parts and Accessories
- Product Subgroup:
- Leversets
- Commercial/Residential:
- Commercial
- Function Description:
- Inside lever and locking bushing assembly for Schlage L Series mortise locks. Bushing eliminates exposed screws on inside levers. Non-handed except 12 Lever (specify LH or RH). Suites with Von Duprin exit devices.
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Product Category:
- Mechanical Locks
- Backset (Distance):
- 2-3/4"
- Department:
- Door Hardware
Schlage 09-402 06 626 – Frequently Asked Questions
1) Will the Schlage 09-402 inside lever fit my existing L Series mortise lock, or do I need the whole lockset?
The 09-402 is trim only: the inside lever plus the locking bushing assembly for Schlage L Series mortise lock bodies. No lock case, no cylinder, no outside trim comes with it. If your L Series lock body is sound and only the inside lever is damaged, worn, or being restyled, this is the part to order. If the case itself has failed, you need a complete L Series lockset instead.
2) Does the Schlage 09-402 lever need to be handed left or right?
Handing only matters for one style. The 01, 02, 03, 05, 06, 07, 17, 18 and Latitude (LAT) levers are all non-handed, so the same part works on a left or right hand door. The 12 Lever is the exception and is ordered as either Left Hand (LH) or Right Hand (RH). Stand outside the door: if the hinges are on your left, it is a left hand door.
3) I'm replacing an inside lever on a Schlage mortise lock in a 2-3/4 inch backset door prep. Is this the right trim?
Yes, provided the lock is an L Series mortise body. The 09-402 trim is built to the L Series 2-3/4 inch backset, which is the standard mortise lock backset on commercial openings, so it lands on the existing prep without new boring. It will not adapt an L Series lever to a 2-3/8 inch bored-lock prep, which is a different lock family altogether.
4) Can I match the inside levers to the Von Duprin exit devices on my other doors?
You can. Every L Series lever style suites with Von Duprin exit devices and with the related L Series products (LE, LM9200, LM9300, LT). For a property manager standardizing a building, that means the lever on a classroom mortise lock and the lever trim on an exit device door read as the same hardware, as long as you keep the style number and finish consistent across the order.
5) What do I have to specify when ordering a Schlage 09-402 inside lever?
Two things: lever style and finish. Styles run 01, 02, 03, 05, 06, 07, 12 (LH or RH), 17, 18, and LAT Latitude. Finishes run 605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 629 Bright Stainless Steel, 630 Satin Stainless Steel, and 643E Aged Bronze. Match the style and finish to the outside trim already on the door, or the two faces will not match.
6) Is the Cal-Royal CALDOR238 dormitory dead latch an alternative to the Schlage 09-402 inside lever?
No. The Cal-Royal CALDOR238 CAL101 is a dormitory-function dead latch, meaning it is a complete latching device with its own function. The Schlage 09-402 is lock trim only - the inside lever and locking bushing assembly for Schlage L Series mortise locks, ordered when the inside lever is changed independently of the outside trim or lock body. Swapping in a dormitory dead latch changes the door's locking function; the 09-402 changes only the lever a person grips on the secure side. If the existing L Series mortise body is staying in the door, the 09-402 is the trim part; if the door needs dormitory function instead, that is a lock body decision, not a trim decision.
7) Do L Series levers meet ADA requirements for accessible openings?
L Series levers meet the ADA return-to-door requirement, with a return of 1/2 inch or less. That is the detail that keeps a lever from catching a sleeve or a bag, and it is what an inspector looks for on an accessible opening in a school, healthcare, or public facility.
8) Why does the 09-402 lever have a bushing instead of a set screw?
The locking lever bushing takes the place of an exposed screw on the inside lever. Nothing shows on the secure side of the door, so there is no fastener for someone to back out with a driver. On dorms, restrooms, and other rooms where the inside face gets abused, that matters more than it does on an office door.
9) Is the Schlage L Series lever trim rated for commercial traffic, or is it residential-grade?
Commercial. The L Series is built to ANSI/BHMA Grade 1, the highest of the three commercial grades, which is what a spec on a school, hospital, or multi-family corridor door normally calls for. It is not a residential-duty part.
10) Can I change the lever style on my L Series locks without replacing the outside trim?
Yes, and that is a common use of the 09-402. It changes the inside lever independently of the outside trim or the lock body, so you can restyle or replace one face at a time. Most buyers still order both faces in the same style and finish for appearance, but nothing about the part forces it.
11) Do all 11 lever styles come in matte black or aged bronze?
The 09-402 is offered in 12 finishes, including 622 Matte Black and 643E Aged Bronze, and in 11 lever styles from 01 through LAT Latitude. Pick the style first, then the finish, and order the exact combination you need rather than assuming every style carries every finish.
