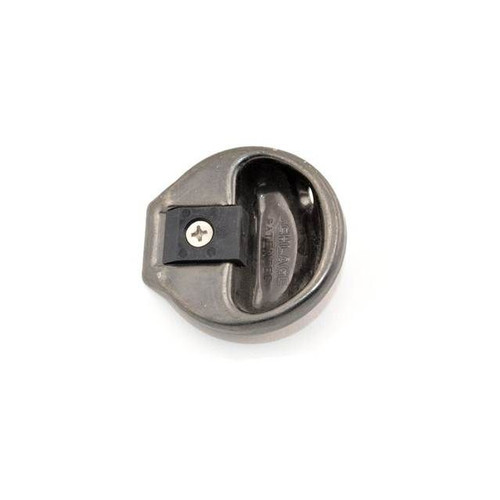

Schlage Residential 10-058 Adjustable Circular Replacement Strike Plate - 1-3/4" Diameter
Model: 1005
Schlage Residential 10-058 Adjustable Circular Replacement Strike PlateThe Schlage 10-058 is a circular, adjustable replacement strike plate with a 1-3/4" diameter and 1-7/32" lip length. Stainless...
Schlage Residential
Starting at
$18.00
$11.42
Schlage A Series 10-058 Circular Adjustable Strike

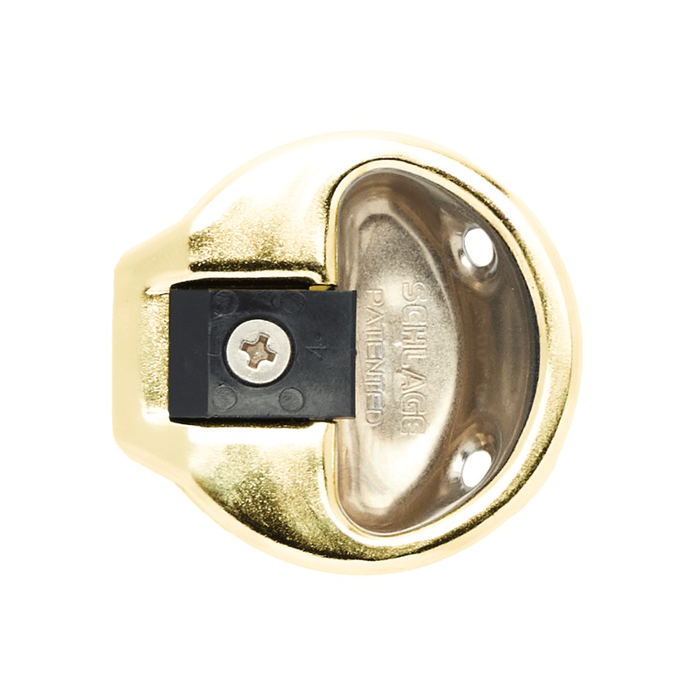

The Schlage 10-058 is a circular adjustable strike designed as a direct replacement for Schlage A Series locksets. With a 1-3/4" diameter and a 1-7/32" lip, it fits standard door preps and accommodates minor door-to-frame alignment variations — reducing callbacks on retrofit and replacement jobs.
Key Specifications
- Strike diameter: 1-3/4"
- Lip length: 1-7/32"
- Substrate: Stainless steel
- Compatible series: Schlage A Series
- Adjustable design accommodates minor frame misalignment
- Available finishes: 605 Bright Brass, 609 Antique Brass, 626 Satin Chrome
Why Specify This Strike
- Genuine Schlage certified replacement part — maintains warranty compliance
- Finish-matched options keep the door hardware set consistent
- Stainless steel construction for long-term durability in commercial applications
Warranty
Backed by Schlage's Limited Lifetime Mechanical and Finish warranty.
Manufacturer Resources
Product Specs
- Features:
- Adjustable design, Finish-specific, Stainless steel construction, Genuine Schlage certified replacement part
- Warranty:
- Limited Lifetime Mechanical/Finish
- Product Group:
- Mechanical Locks
- Subcategory:
- Parts and Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Strike Plates
- Commercial/Residential:
- Commercial
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Product Model:
- 10-058
- Product Substrate:
- Stainless Steel
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Schlage 10-058 626 – Frequently Asked Questions
1) Will the Schlage 10-058 strike work on a standard Schlage A Series lockset?
That's exactly what the 10-058 is for. It's a circular adjustable strike built as a direct replacement for Schlage A Series locksets, so it drops into the existing A Series door prep rather than requiring you to re-bore the frame. If the lockset on the door is anything other than an A Series, check the strike your lock line actually calls for.
2) What size is the Schlage 10-058 circular strike, and will it cover the round cutout already in my frame?
The 10-058 measures 1-3/4 inches in diameter with a 1-7/32 inch lip. That's the round strike prep A Series openings are cut for, so on a frame already prepped for an A Series strike it covers the hole and lands on the existing screw pattern. On a frame cut for a square ANSI strike box, a round strike this size won't cover the opening.
3) My door isn't latching cleanly since it settled. Will an adjustable strike fix it?
If the misalignment is small, yes. The 10-058 has an adjustable design that takes up minor door-to-frame alignment variation, which is the usual cause of a latch that drags or won't fully throw after a building settles or hinges sag. It won't rescue a door that's badly out of square, that's a hinge or frame problem, but for the quarter-turn-out cases that generate callbacks it's the cheap fix.
4) What finishes does the Schlage 10-058 strike come in, and how do I match the ones on my other doors?
Three finishes: 605 Bright Brass, 609 Antique Brass, and 626 Satin Chrome. Order by the number, not the description, since those BHMA codes are the same ones stamped on the rest of your Schlage trim. If your building standard is 626 satin chrome, which is the most common commercial spec, that's the one that keeps the strike matched to the lever and rose.
5) Is the Schlage 10-058 strike plate stainless steel or plated pot metal?
Stainless steel. That matters on a strike more than most trim, because the lip takes the latch every single cycle and a plated soft-metal strike wears through at the contact point and starts squealing. Stainless holds up in commercial traffic, which is what this part is specified for.
6) Do I need to order a strike box or dust box with the Schlage 10-058?
The 10-058 is the strike itself, a 1-3/4 inch circular adjustable strike with a 1-7/32 inch lip. On a retrofit into a frame already prepped for an A Series strike, the existing cavity is there and you're just swapping the visible plate and screws. New prep in a hollow metal frame is where you'd want a dust box behind it to keep the latch pocket clean.
7) Is the 10-058 a genuine Schlage part or an aftermarket strike?
Genuine Schlage certified replacement part. For institutional and MRO buyers standardizing a facility on Schlage, that's the difference between a repair that stays inside the manufacturer's own parts program and one that doesn't. It also means the finish is Schlage's own 605, 609, or 626, so it matches the existing hardware instead of being close.
8) Can I use one strike part number across all the A Series doors in my building?
For A Series openings, yes, the 10-058 is a single circular strike used across them, so you can stock one part number in three finishes rather than a bin of odd strikes. Property managers running a fleet of doors generally hold the finish that matches the building standard and keep a few spares, since a chewed or misaligned strike is one of the most common lock service calls.
