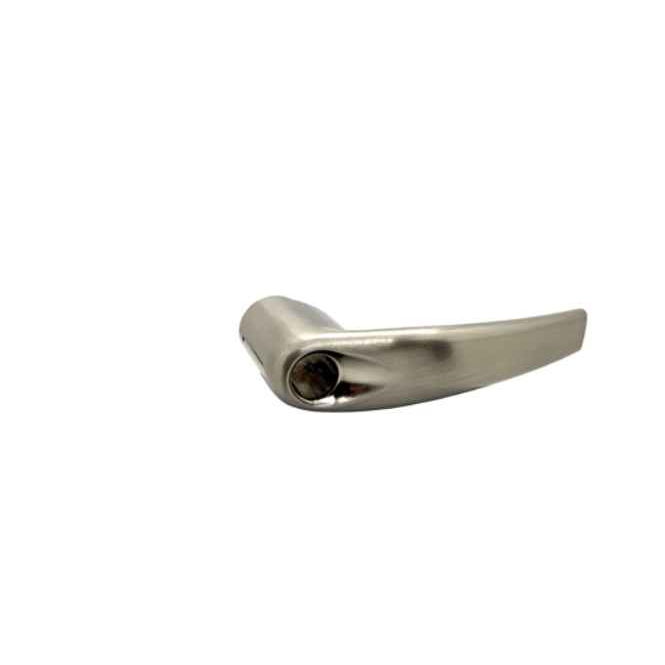

Schlage ALX Series Single Lever, KIL Privacy Turns or Conventional Cylinder Lever
Manufacturer Resources
ALX Series catalog
Product Specs
- Subcategory:
- Cylindrical Lever Locks
- Series:
- ALX Series
- Grade:
- Grade 2
- Duty Level:
- Medium Duty
- Handle Type:
- Lever
- Keyed Function:
- Non-Keyed
- Warranty:
- 10 Year
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Leversets
- Product Type:
- Lock Trim
- Keyed:
- No
- Electronic:
- No
- Commercial/Residential:
- Commercial
- Lock Type:
- Cylindrical
- Segment:
- Door Hardware
- Door Hand Direction:
- Field Reversible
- Product Substrate:
- Zinc and Steel
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Schlage LP KIL 626 SAT – Frequently Asked Questions
1) Is the Schlage ALX Series lever trim a complete lock or just the lever?
The ALX Series single lever is lock trim for a cylindrical lock, not a standalone lockset. It covers the KIL privacy turn version and the conventional cylinder version, so you specify which one matches the lock body you are dressing. The lever itself is zinc and steel.
2) Do I have to order the Schlage ALX lever handed for a left or right hand door?
No handing to specify. The ALX lever is field reversible, so one part covers left and right hand openings and you set the direction at install. That matters if you are stocking spares for a building with doors swinging both ways, since a single line item covers every opening.
3) Is the Schlage ALX lever heavy duty enough for a commercial building?
The ALX is a Grade 2, medium duty commercial lever. Grade 2 is the middle ANSI/BHMA cylindrical tier, which suits offices, multi-family units, and interior commercial doors. For a high traffic entrance, a stairwell, or a school corridor door, step up to a Grade 1 cylindrical lock instead.
4) Does the Schlage ALX privacy lever come keyed, and can I key it into my master key system?
Not as ordered. The ALX single lever here is non-keyed trim, so it takes a KIL privacy turn or a conventional cylinder rather than shipping keyed. Keying is handled by the cylinder you put in the conventional cylinder version, not by the lever itself. If you need a keyed entry function out of the box, this is not the part.
5) I need a dormitory function lock, not privacy. Is the Schlage ALX the right choice?
No. The ALX single lever covered here is non-keyed trim for privacy turns or a conventional cylinder, which does not give you dormitory function. For a dormitory deadlatch, look at the Cal-Royal CALDOR238 CAL101 instead.
6) What lever designs does the Schlage ALX come in, and can I match one across a whole building?
Ten lever styles: Athens (ATH), Boardwalk (BRK), Broadway (BRW), Latitude (LAT), Longitude (LON), Omega (OME), Rhodes (RHO), Saturn (SAT), Sparta (SPA), and Tubular (TLR). Pick one style code and carry it through every opening so the privacy doors and the cylinder doors read the same down a corridor.
7) What finishes are available on the Schlage ALX lever to match existing door hardware?
Nine finishes, all standard BHMA numbers: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, and 643E aged bronze. Matching an existing opening is easiest by the number, not the name, since 626 satin chrome is the common commercial default.
8) Is the Schlage ALX lever an electronic or access control lock?
Purely mechanical. The ALX lever has no electronics, no credential reader, and no wiring, so there is nothing to power and no door cord or transfer hinge to plan for.
9) Can I get full ALX Series specs like backset and door thickness before I order?
Schlage publishes the full ALX Series catalog, with the function codes, trim options, and prep details, at https://zensupply.com/content/pdf/schlage/Schlage_ALX_Series_Catalog_113231.pdf. Pull the lever style code and finish number from there and match them to the options you order.
