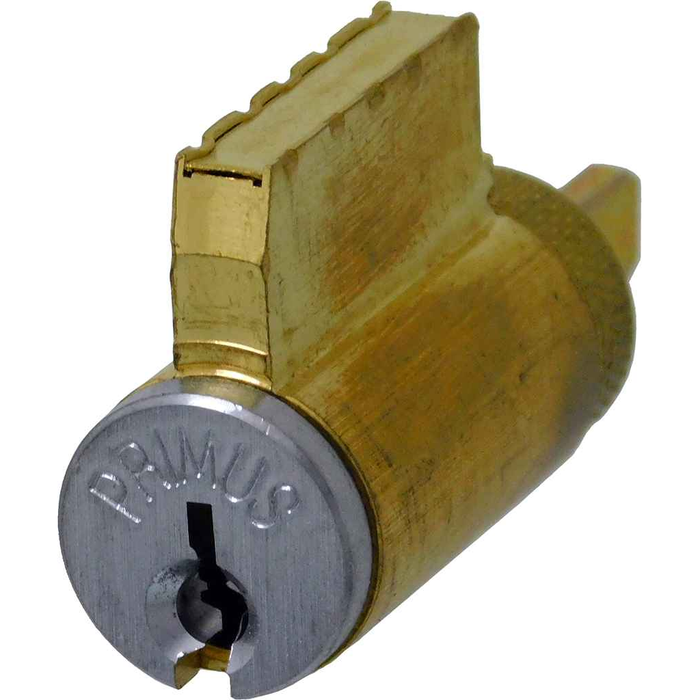

Schlage C Primus and XP Primus Classic Key-in-Lever Cylinder, Subassembly, Multiple Tailpieces, 0 Bitted, Less Key Blanks, No Finger Pins

It ships as a subassembly: 0 bitted, less key blanks, no finger pins. That means it is not a working cylinder out of the box. You order the keys, plug pins, Primus finger pins, finger pin springs, side bar and side bar springs as separate items. What you do get is the Primus Classic 6-pin cylinder plus four tailpieces. This is how a locksmith buys it when the cylinder is going to be cut and pinned in the shop to a system already in place.

Four tailpieces come with it: A301-338 for A and H Series Orbit, A700-031 for the AL Series, C604-243 for D Series levers and knobs, and N523-022 for the ND Series. Fit the one that matches the lock you are working on and the same cylinder body serves all four. It is non-handed, so left hand and right hand openings take the identical part with no reversing.

0 bitted is how it leaves the shelf, with no plug pins and no key blanks in the box, so the plug is uncut and your locksmith pins it to whatever Primus bitting the building already uses. Nothing about the keying is committed until it is pinned, which is the reason to buy the subassembly instead of a finished cylinder. Plan the keys, plug pins, finger pins and their springs, and the side bar and side bar springs as separate lines on the order.

626 satin chrome is the finish supplied, the same finish code used across commercial Schlage lever and knob hardware, so it sits behind matching trim on an A, H Orbit, AL, D or ND lock without standing out. Anyone standardizing a building on 626 can drop this in on a door-by-door basis as locks get rekeyed.

No. The 20-200-CP is a key-in-lever cylinder and its tailpieces are cut for Schlage A and H Orbit, AL, D and ND lever and knob locks. A mortise lock takes a threaded mortise cylinder driven by a cam, which is a different part entirely. For a Schlage L9000, the Corbin Russwin 1080 Series 1-1/2 inch 6-pin LFIC mortise cylinder is listed for those locks with an A01 Schlage L cam. If you want a Schlage C keyway in a mortise housing, the Detex MC65 is a 1-1/8 inch 6-pin mortise cylinder in Schlage C.

Then the 20-200-CP is the wrong line item, since it is 0 bitted and comes with no key blanks and no finger pins. The Falcon A23161-05 G key-in-lever cylinder ships keyed different with two cut keys in a 6-pin G keyway for RU and T Series locks. The Kaba Ilco 1539 Series is a universal key-in-knob and lever replacement cylinder. Neither runs on a Schlage Primus key system, so if the building is keyed in Primus you are back to a Primus cylinder pinned by a locksmith.

Not for in-house rekeying. A Primus cylinder is pinned once by a locksmith and stays in the lock; changing the keying means pulling it apart again. Facilities that rekey on their own standardize on small format interchangeable core, where a control key pulls the core in seconds. The BEST 1C Series 5-pin core and the 1CDF drill resistant patented 7-pin brass core in the 150 Series are that route. It is a platform decision across the whole facility rather than a fix for one opening.

It is sold for Schlage C Primus and XP Primus Classic key-in-lever use, and the cylinder itself is a Primus Classic 6-pin. Because it comes 0 bitted with no finger pins, no side bar and no side bar springs, those sidebar components and the key blanks come from your own stock and are ordered separately. Non-handed and designated for commercial locks, so the same part number serves every opening in the schedule.

The 20-200-CP is a Primus Classic 6-pin key-in-lever cylinder supplied as a subassembly, 0 bitted and less key blanks, with the finger pins, finger pin springs, side bar and side bar springs ordered separately. Two cross-brand parts occupy the same key-in-lever position. Falcon A23161-05 G is a key in lever cylinder described as RU/T series with a 6-pin G keyway, supplied keyed different with two cut keys. Kaba Ilco 1539 is a key-in-knob / lever universal cylinder. The Schlage part carries multiple tailpieces so one cylinder addresses A and H series Orbit A301-338, AL series A700-031, D series levers and knobs C604-243, and ND series N523-022.

They share a keyway family, not a body. Detex MC65 is a 1-1/8" 6-pin mortise cylinder with a Schlage C keyway, so it threads into a mortise lock case. The 20-200-CP is a Primus Classic 6-pin cylinder with multiple tailpieces, built to go into a key-in-lever chassis such as the A and H series Orbit, AL, D and ND series locks. A mortise cylinder will not fill a lever chassis and a key-in-lever cylinder will not fill a mortise pocket, so the two are ordered by which lock body is in the door.

The 20-200-CP is the Primus Classic 6-pin route, pinned in the shop with Primus finger pins, finger pin springs, side bar and side bar springs ordered with it. BEST 1CDF is a drill resistant preferred patented interchangeable core 7-pin brass 150 series cylinder, which puts the patented key control in a removable core instead. The Medeco parts in the same aisle are aimed at other openings: 1012040 for Kwikset single cylinder deadbolts, 1065140 for the Arrow JL interconnected lock and Emtek handlesets, and 1075127 for handlesets and deadbolts.

Read what each one is written for. The 1549 is a key-in-deadbolt cylinder and the 1599 is a key-in-knob replacement cylinder, both carrying a deadbolt function. The 1579 is a knob and lever cylinder for Sargent, so it is aimed at that manufacturer's locks. The one in the family written for knob and lever use across brands is the 1539 universal cylinder. The 20-200-CP is a Primus Classic 6-pin key-in-lever cylinder with multiple tailpieces for the Schlage A and H series Orbit, AL, D and ND lock families.

Two different ordering languages. The 20-200-CP is model 20-200-CP, non-handed, and its cam type is multiple tailpiece, so the tailpieces called out are Schlage lock part numbers: Orbit A301-338 for A and H series, A700-031 for AL series, C604-243 for D series levers and knobs, N523-022 for ND series. Mortise cylinders are called out by cam instead: Corbin Russwin 1000 with an A02 straight cam, 1070 with an A01 cloverleaft cam, and 1080 with an A01 cloverleaf cam. A tailpiece number and a cam letter are not the same field, so match the one your lock body uses.

No, it is a key-in-lever cylinder with multiple tailpieces for lever and knob chassis. Rim work calls for a rim body. Corbin Russwin 3070 is a 6-pin rim cylinder housing with a 1-7/8" tailpiece. Medeco 1065244 is a 5-pin rim lazy motion rim type cylinder with an Emtek tailpiece, and Medeco 1075127 is a 5-pin rim type lazy motion single cylinder for handlesets and deadbolts. One rim part to watch is the BEST 12E series dummy rim cylinder at 1-5/32" diameter, which is a dummy and carries no key function.

It is a different family of opening. The 20-200-CP is a Primus Classic 6-pin cylinder with tailpieces for Schlage key-in-lever and knob chassis. For an MS1847 deadlock, Adams Rite 4024 is a cylinder pull with trim plate mounting and 4025 is a five pin tumbler cylinder pull with through-screws, both designed for the MS1847 deadlock/deadlatch. On a wood door, the 4026 five pin tumbler cylinder pull is designed for the Adams Rite 5017 wood door deadlock/deadlatch. Adams Rite 4036 is a Grade 1 mortise cylinder with a 1/2" minimum door thickness.

It is a commercial part built for Schlage key-in-lever and knob chassis, with tailpieces listed for the A and H series Orbit, AL, D and ND series locks. For Emtek trim, the CY4 cylinder is the manufacturer's own part. Medeco 1065140 is a 5-pin retrofit cylinder for the Arrow JL interconnected lock and for an Emtek handleset and deadbolt outside cylinder, and Medeco 1065244 is a 5-pin rim lazy motion cylinder with an Emtek tailpiece. Medeco 1012040 is a 6-pin lazy motion rim cylinder for Kwikset single cylinder deadbolts.
