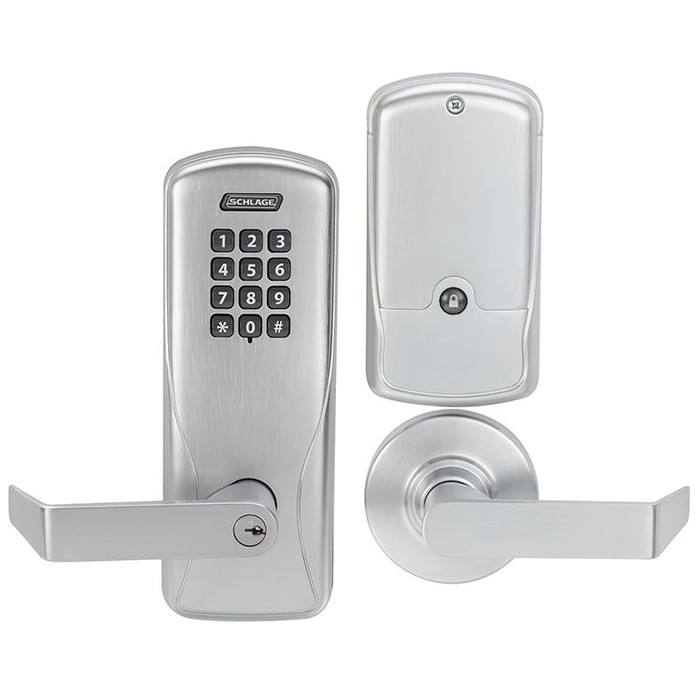

Schlage CO-100 Standalone Electronic Cylindrical Lock with Keypad Reader, Office Function — front and rear view showing keypad exterior, interior escutcheon, and Sparta lever in Satin Chrome finish

Schlage CO-100 Standalone Electronic Cylindrical Lock, Office Function, Keypad Reader

(1 review) Write a Review

Model: CO-100-CY-50-KP-RHO-626-B
From the CO-100 Series Collection
$1,091.00
$494.00
Selected Finish is
Selected Lever Style is
Selected Cylinder Type (Less Cylinder) is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,091.00
$494.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage CO-100 Standalone Electronic Cylindrical Lock, Office Function, Keypad

The CO-100 is a standalone, battery-operated electronic cylindrical lock that uses 3-6 digit PIN codes as credentials. No network connection or software is required. An administrator programs the lock directly at the keypad to add or delete user PIN codes and adjust operating preferences at any time. The 100 Series is a manually programmable device.

The office function keeps the exterior lever locked at all times; access is granted by valid PIN entry or mechanical key. The interior lever is always free. This function is suited for perimeter offices, private offices, and interior doors requiring controlled access without a passage mode.

Typical applications include:

  • Private offices and perimeter office doors
  • Supply closets and equipment rooms
  • Maintenance areas
  • Workout rooms and fitness areas
  • Restrooms and dressing rooms
  • Maternity and nursing rooms
  • Pool gates, breezeways, and outdoor applications
  • Vestibule and reception area doors controlled by remote release

Cylindrical, mortise, and exit trim chassis options are available. Mechanical key override is standard and compatible with Schlage conventional cylinders, Schlage/Falcon 6-pin FSIC, Schlage/Falcon 6-pin KIL, and Schlage/Falcon/competitive OEM 7-pin SFIC. The CO Series is compatible with many popular brands of exit devices.

Features

Security

  • Minimizes key distribution and preserves key system integrity over time
  • Office function for controlled access on interior and perimeter doors
  • Compatible with Schlage's full complement of key cylinder options, including levers for many OEM cylinders
  • Compatible with most major brands of exit devices

Efficiency

  • Manages up to 500 unique 3-6 digit PIN codes stored on the lock
  • Integrates with existing master key system
  • Low lifetime cost of ownership

Convenience

  • PIN codes issued and revoked at the keypad, no PC required
  • Normal, toggle, pass-through, and freeze programming options
  • Up to 2-year battery life with low-battery status indicator
  • Field-reversible handing

Finishes

  • 605 Bright Brass
  • 606 Satin Brass
  • 612 Satin Bronze
  • 619 Satin Nickel
  • 625 Bright Chrome
  • 626 Satin Chrome
  • 626AM Satin Chrome Antimicrobial
  • 643E Aged Bronze

Certifications and Testing

Certifications

  • ANSI/BHMA A156.25 full outdoor (70 function)
  • ANSI/BHMA Grade 1
  • UL 294
  • UL 10C
  • UL Canada
  • FCC Part 15
  • ADA

Meets or exceeds

  • Cylindrical: ANSI/BHMA A156.2, Series 4000, Grade 1
  • Mortise: ANSI/BHMA A156.13, Series 1000, Grade 1
  • Exit trim: ANSI/BHMA A156.3

Downloads and Resources

Manufacturer Resources

Product Specs

Series:
CO Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Standard Latch:
1-1/8" x 2-1/4 deadlatch, Square Corner
Standard Strike:
1-3/16" Lip, ANSI, no box, 1-1/4" x 4-7/8"
Warranty:
2 Year
Battery Operated:
Yes
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Standalone
Batteries:
AA (4)
Commercial/Residential:
Commercial
Cylinder Included:
No
Electronic:
Yes
Lock Type:
Cylindrical
Power:
Battery Operated
Lock Function:
Office
Connection Type:
Standalone
Product Attribute:
Electronic Locks
Collection:
CO-100 Series
Backset (Distance):
2-3/4"
Product Function:
Office
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Electronic Locks
Department:
Door Hardware

Schlage Electronics CO-100-CY-50-KP-RHO-626-B – Frequently Asked Questions

1) Will the Schlage CO-100 keypad lock fit a 1-3/4 inch door?
Yes, 1-3/4 inches is the door thickness the CO-100 cylindrical lock is built for, with a 2-3/4 inch backset as standard. That is the normal commercial door thickness, so a standard hollow metal or solid core opening takes it without special ordering. Thinner 1-3/8 inch interior doors are outside what this chassis covers.
2) Does the Schlage CO-100 come with a key cylinder, or do I have to order one separately?
No cylinder is included. The CO-100 ships less cylinder unless you pick the P option, which is the Schlage standard conventional cylinder. The other three choices are prep only: B takes a 7-pin SFIC from Schlage, Falcon or competitive OEMs, J takes a Schlage 6-pin FSIC, and L takes a Schlage or Falcon 6-pin KIL. If you run an existing master key system, pick the option matching your cores and key it into the system you already have.
3) What does office function mean on the Schlage CO-100, and is it the right choice for a private office door?
Office function on the CO-100 keeps the outside lever locked all the time. Entry is by a valid PIN or the mechanical key override, and the inside lever always retracts the latch so anyone inside can get out. There is no passage or unlocked mode, so staff cannot leave the door free during the day. That suits private and perimeter offices, supply and equipment rooms, restrooms and dressing rooms, and pool gates or breezeways. If you want a door that can be left in a held-unlocked state, this function is not it.
4) Will the Schlage CO-100 latch into the strike already in my frame?
The CO-100 comes with a 1-1/8 inch by 2-1/4 inch square corner deadlatch and a standard ANSI strike, 1-1/4 by 4-7/8 inches with a 1-3/16 inch lip and no box. If your frame is already prepped for an ANSI/ASA 4-7/8 inch strike, which is normal on hollow metal commercial frames, the latch drops straight in. A frame cut for a small T-strike or a round-corner face plate needs the opening enlarged.
5) Do I need to order the Schlage CO-100 in left or right hand?
Handing is field reversible on the CO-100, so one lock covers both left and right hand openings. That is worth knowing if you are buying a batch for a building with mixed swings, since you can stock a single part number and set the hand at install.
6) Does the Schlage CO-100 need to be wired or connected to access control software?
No wiring and no software. The CO-100 is a standalone lock running on four AA batteries, with all programming done at the keypad itself. An administrator adds or deletes user PINs and changes operating preferences right at the door, and the lock holds up to 500 unique 3 to 6 digit PIN codes. Battery life runs up to two years with a low battery indicator. This is the lock for doors where pulling power or a network drop is not worth the cost.
7) Is the Schlage CO-100 Grade 1 and can it go on a fire rated door?
The CO-100 is ANSI/BHMA Grade 1 heavy duty and carries UL 10C, which is the fire door test standard, along with UL 294 for access control, UL Canada, FCC Part 15 and ADA. The cylindrical chassis meets ANSI/BHMA A156.2 Series 4000 Grade 1, and the lock is certified to ANSI/BHMA A156.25 full outdoor. That outdoor listing is why it holds up on pool gates and breezeways as well as interior doors.
8) My door is 2 inches thick, not 1-3/4. Can I still use a Grade 1 electronic keypad lock?
Not the CO-100, which is specified at 1-3/4 inch door thickness. For a thicker leaf, the TownSteel XCE-2000 covers 1-3/4 to 2 inches in Grade 1 classroom function, and the SDC E75 goes to 2-1/8 inches. If the door is thinner, the Alarm Lock Trilogy T2 DL2700 handles 1-5/8 to 1-7/8 inches. Measure the leaf at the lock edge before you order, because a keypad chassis has far less thickness adjustment than a mechanical lockset.
9) What happens on a Schlage CO-100 when the batteries die?
Mechanical key override is standard on the CO-100, so a dead battery is not a lockout. The lock warns first with a low battery status indicator, and battery life runs up to two years on four AA cells. Key override works with Schlage conventional cylinders, Schlage/Falcon 6-pin FSIC, Schlage/Falcon 6-pin KIL, and 7-pin SFIC from Schlage, Falcon or competitive OEMs, so the override key can be part of the master key system you already carry.
10) What is a comparable Grade 1 standalone keypad cylindrical lock to the Schlage CO-100 if the door is thinner than 1-3/4 inches?
The Schlage CO-100 is built for a 1-3/4 inch door, so on a thinner leaf look at the Alarm Lock Trilogy T2 DL2700, a Grade 1 standalone electronic cylindrical lock with a digital keypad that covers 1-5/8 to 1-7/8 inch doors and accepts IC/SFIC cores. Both are Grade 1 keypad locks with 100-plus user codes managed at the door; the CO-100 holds up to 500 PIN codes of 3 to 6 digits, while the DL2700 is rated for 100 user codes. If the opening is a standard 1-3/4 inch commercial door, either fits the thickness.
11) Which electronic cylindrical lock should I use instead of the Schlage CO-100 when I need an audit trail of who opened the door?
The CO-100 is a manually programmable standalone lock: an administrator adds and deletes PIN codes at the keypad, with no PC, software, or network connection involved, so there is no event record to pull. When the job requires a record of openings, the Alarm Lock T3 DL3075 is a Grade 1 electronic cylindrical lock with audit trail and keypad access. Both mount as cylindrical chassis locks and run on battery power at the door.
12) What electronic cylindrical lock should I specify instead of the Schlage CO-100 for a classroom that needs lockdown from inside the room?
The CO-100 in office function locks the exterior lever at all times with the interior lever always free, so there is no inside lockdown control. For a classroom intruder application, the TownSteel XCE-9000 is a Grade 1 heavy duty electronic classroom intruder cylindrical lockset with keypad for 1-3/4 to 2 inch doors, and the TownSteel FCE-4000 is a Grade 1 heavy duty RFID electronic intruder classroom cylindrical lockset for 1-3/4 inch doors. Both hold the same Grade 1 heavy duty rating as the CO-100 on a cylindrical chassis.
13) Is the SDC Electra 7200 a substitute for the Schlage CO-100?
No, they are powered differently and controlled differently. The CO-100 is a standalone battery lock running on four AA cells, programmed at the keypad, with up to 2-year battery life and a low-battery indicator. The SDC Electra 7200 Series is a solenoid controlled cylindrical lock on dual voltage 12/24VDC for 1-3/4 to 2 inch doors, which means it is wired to a power supply and released by an access control system rather than by a code at the door. If the opening has no wire pulled to it, the CO-100 is the one that installs without power at the frame.
14) What battery keypad cylindrical lock covers doors up to 2-1/8 inches thick if the Schlage CO-100 does not fit?
The CO-100 is specified for a 1-3/4 inch door. For a thicker leaf, the SDC E75 Series is a battery-powered electronic cylindrical lockset with keypad access control covering 1-3/4 to 2-1/8 inch doors. Both are battery keypad locks that program at the door with no wiring to the frame.
15) Which keypad lock lets me keep my existing small format interchangeable core besides the Schlage CO-100?
The CO-100 is supplied less cylinder and can be ordered to accept a Schlage, Falcon, or competitive OEM 7-pin SFIC, a Schlage 6-pin FSIC, or a Schlage/Falcon 6-pin KIL, so mechanical key override stays on the existing master key system. Among other keypad cylindrical locks, the Alarm Lock Trilogy T2 DL2700 is IC/SFIC compatible and the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with key override function. All three keep a mechanical key path on the door.
16) What is a double-sided keypad alternative to the Schlage CO-100 for a room that needs a code in both directions?
The CO-100 in office function reads a PIN on the exterior only; the interior lever is always free, so anyone inside leaves without entering a code. Where the room must be coded in both directions, the Alarm Lock DL5200 is a double-sided electronic cylindrical lock with 100 user capacity and battery operation for 1-5/8 to 1-7/8 inch doors. Both are battery cylindrical locks programmed at the door; the CO-100 holds up to 500 PIN codes on a 1-3/4 inch door.
17) How do I match a Schlage CO-100 keypad lock to the levers and finishes already on my other doors?
Six lever styles are offered on the CO-100: Athens, Latitude, Longitude, Rhodes, Sparta and Tubular. Finishes run 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial and 643E aged bronze. If your building is standardized on Schlage mechanical levers, pick the same lever style and finish code and the electronic door reads as part of the same set. The 626AM antimicrobial finish is the one to specify for healthcare and food service touchpoints.
18) What else could I use instead of the Schlage CO-100 standalone keypad lock?
Several Grade 1 standalone keypad cylindrical locks cover the same job. The Alarm Lock Trilogy T2 DL2700 is a keypad lock with 100 user codes and IC/SFIC compatibility, but it fits doors 1-5/8 to 1-7/8 inches, so it is the one to look at when the door is not a straight 1-3/4. The Alarm Lock T3 DL3075 adds an audit trail if you need a record of who entered. The TownSteel XCE-2000 is a Grade 1 keypad lockset in classroom function, fitting 1-3/4 to 2 inch doors, and the SDC E75 is battery powered with keypad access for 1-3/4 to 2-1/8 inch doors. The CO-100 differs on code capacity, holding up to 500 PINs.
19) Should I put a keypad lock like the Schlage CO-100 on the door, or a card reader lock?
A PIN keypad suits doors where you do not want to issue and track physical credentials. The CO-100 uses 3 to 6 digit codes entered at the lock, with no cards to buy or replace, and codes are added and revoked at the keypad without a PC. Credential-based alternatives exist if you already run cards: the TownSteel FCE-2000 is a Grade 1 standalone motorized cylindrical lockset with RFID, and the FCE-4000 is an RFID electronic classroom lockset. Both fit 1-3/4 inch doors. Go RFID if the building already carries badges; stay with PIN if you want zero credential logistics.
20) Can the Schlage CO-100 keypad be used as exit device trim or a mortise lock instead of a cylindrical lock?
The CO-100 platform offers cylindrical, mortise, and exit trim chassis options, and the CO Series works with many popular brands of exit devices. The cylindrical build is the bored lockset version, ANSI/BHMA A156.2 Series 4000 Grade 1, with a 2-3/4 inch backset. Mortise builds meet A156.13 Series 1000 Grade 1 and exit trim meets A156.3. Pick the chassis to match the door prep you already have rather than re-prepping the leaf.
21) Can I set a Schlage CO-100 to stay unlocked during business hours?
The CO-100 supports normal, toggle, pass-through and freeze programming options, set at the keypad. Toggle is what lets a valid code flip the lock to a held state and back, which is how you handle a reception or vestibule door during open hours. Note the base office function keeps the exterior lever locked otherwise, and there is no scheduling since the lock is standalone with no network or software behind it.
22) Is the Schlage CO-100 rated for an exterior door or a pool gate?
It is certified to ANSI/BHMA A156.25 full outdoor, function 70, which is the standard that covers electrified locks in exposed locations. Listed applications include pool gates, breezeways and outdoor doors. For a REIT or property manager standardizing amenity-area access, that outdoor certification is the spec that separates it from indoor-only electronic locks.
23) I want credentials instead of PIN codes on a cylindrical lock. What replaces the Schlage CO-100 keypad?
The CO-100 with keypad reader uses 3 to 6 digit PIN codes as the credential, entered on the keypad. If the facility issues cards or fobs instead, the TownSteel FCE-2000 is a Grade 1 heavy duty standalone motorized cylindrical lockset with RFID technology in classroom function for 1-3/4 inch doors, and the CENTRIOS CEB100 is a Grade 1 smart Bluetooth cylindrical lock in privacy function. Both are standalone at the door like the CO-100, but the credential and the function differ, so confirm the function the opening needs before substituting.
24) If I do not need electronic access control, what mechanical lock covers the same office opening as the Schlage CO-100?
The Schlage CO-100 is an electronic office function lock managing up to 500 PIN codes. Where the door only needs a key, the Dorma C150 is a Grade 1 heavy-duty cylindrical lock in entry/office function fitting 1-3/8 to 2-1/4 inch doors, and the Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever lockset supplied less core. Both are keyed mechanical locksets with no batteries, keypad, or code management; the tradeoff is that access is controlled by keys rather than by codes issued and revoked at the door.
25) What keyless lock works instead of the Schlage CO-100 on a door where I do not want batteries at all?
The CO-100 runs on four AA batteries with up to 2-year life and a low-battery indicator. For an opening where nobody will service a battery, the Lockey 1600 is a heavy duty mechanical keyless knob lock with an adjustable backset covering 1-1/8 to 2 inch doors, and the Lockey 2830 is a mechanical pushbutton keyless knob lock with auto-locking passage function for the same 1-1/8 to 2 inch range. Both are mechanical pushbutton locks: one code is set at the lock rather than up to 500 individual PIN codes, and they are knob trim rather than the lever trim the CO-100 carries.
26) Can I use the Alarm Lock Trilogy 4100 in place of the Schlage CO-100 on an office door?
Not for the same opening. The Trilogy 4100 is a Grade 1 electronic cylindrical keypad lock in privacy/bed/bath function for 1-5/8 to 1-7/8 inch doors, which is intended for a door locked from the inside by the occupant. The Schlage CO-100 is office function: the exterior lever is locked at all times and opens on a valid PIN or the mechanical key, with the interior lever always free. Match the function to the door - restrooms and dressing rooms can take either approach, but a private office needing PIN-controlled entry from outside is the CO-100 case.
27) Which keypad lever lock has a remote release option if the Schlage CO-100 does not?
The Schlage CO-100 is a standalone lock; codes are issued and revoked at the keypad and the exterior lever opens on a valid PIN or mechanical key. For a vestibule or reception door where staff need to buzz someone in, the Lockey E985 and E995 are electronic keypad lever locks with remote control, both covering 1-3/8 to 1-3/4 inch doors, and the E985 also carries key override. Note the CO-100 is Grade 1 heavy duty on a 1-3/4 inch door, so on a Grade 1 spec the remote-release requirement is usually met with separate hardware rather than by substituting.
28) Can I put a Grade 2 lever lockset on the same door as a Schlage CO-100 to save on non-secured openings?
Yes, and it is a common way to mix a run of doors. The Schlage CO-100 is Grade 1 heavy duty for the openings that need PIN-controlled access. On doors that only need to latch, the Orca OCL210 is a Grade 2 medium duty passage cylindrical lockset and the Dorma CL701 is a Grade 2 single dummy non-keyed lever, while the Marks USA 175RF SFIC is a Grade 2 storeroom clutched lever with a 2-3/4 inch backset and ANSI strike, less core, matching the CO-100 2-3/4 inch backset. The difference is grade and duty level plus the loss of electronic access, so keep the Grade 1 CO-100 where the spec calls for Grade 1.
