Schlage Electronics Schlage Electronics MTKB15 Single-Gang Mount, Mobile-Enabled, Multi-Technology Reader with Keypad, Black MTKB15

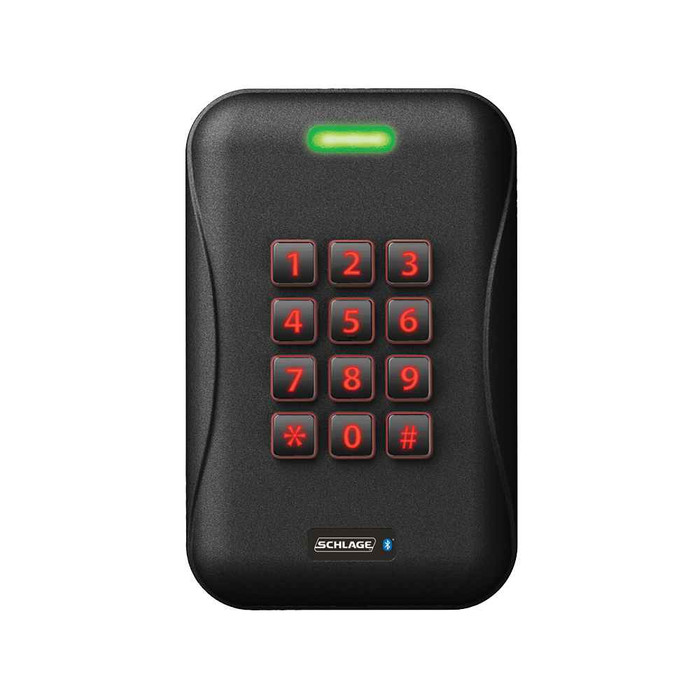

Schlage Electronics MTKB15 Single-Gang Mount, Mobile-Enabled, Multi-Technology Reader with Keypad, Black

(No reviews yet) Write a Review

Model: MTKB15

In Stock (leaves warehouse same day if ordered before 3pm ET)

$678.00
$497.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

MTKB15 Mobile Enabled Multi-Technology Wall Reader with Keypad

Mobile ready Schlage® MTB readers deliver maximum capabilities and compatibility in one single unit for simplified access control. The MTKB15 wall mount is designed to support a wide variety of technologies including Bluetooth® (BLE), NFC, keypad, proximity and smart, allowing a seamless transition to more secure credentials at customers' own pace. The ability to pair keypad use for multi-factor authentication provides even higher security in any facility.



SPECIFICATIONS

  • Physical dimensions (HxWxD):    5.1″ x 3.25″ x 0.76″
  • Frequency:  2.4GHz, 13.56 MHz and 125 kHz
  • System interface: Wiegand / Clock & Data / OSDP / Optional RS-485 capability
  • Standard default PIV output:  75 bit†
  • Standards:  ISO 14443A, ISO 15693
  • Power:  5-28 VDC
  • Wiring:  22 AWG, 12 conductor, 12" length
  • Operating temperatures:  -31° to 151°F (-35°  to 67° C)
  • LED (red, green, or amber) visual indicator and audio feedback
  • Material:  PBT Polymer



FEATURES

Technology

  • Reads 125 kHz proximity and 13.56 MHz smart credentials - MIFARE Classic® and MIFARE® DESFire® EV1, EV2 and EV3 as well as card serial number (CSN) of other manufacturer's smart credentials
  • Wiegand and RS-485 output available for simple interface with most access control panels
  • Compatible with NFC-open smart phones using Schlage mobile credentials
  • Pair keypad use such as card + PIN (multi-factor authentication for even higher security

Simplicity

  • There are 5 available models to fit any need (keypad, magnetic stripe)
  • Compatible with Schlage and other industry manufacturers’ credentials
  • Limited lifetime warranty

Installation

  • Accommodates interior, exterior, metal and non-metal installation environments
  • Quick-connect cable allows for easy installation
  • Easy-to-install mounting bracket



DOWNLOADS

Category information

Product information

Technical resources

SIA OSDP Verified

Release notes

Manufacturer Resources

Product Specs

Subcategory:
Readers & Credentials
Features:
Adaptability; Flexibility; Reliability; Compatible With Bluetooth and NFC-Open Smart Phones; Clock and Data, Wiegand and Rs-485 Outputs Standard; Plug and Play Mode; Commission Via Engage™ Mobile App
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Readers
Access Mode:
Keypad
Mounting Location:
Single Gang Mounting
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Voltage:
5 to 28 VDC
Product Function:
Electronic Reader With Keypad
Product Category:
Electronic Access Control
Department:
Door Hardware

Schlage Electronics MTKB15 – Frequently Asked Questions

1) Will the Schlage MTKB15 reader read our existing 125 kHz prox cards while we move people over to smart credentials?
Yes. The MTKB15 reads 125 kHz proximity and 13.56 MHz smart credentials in the same unit, including MIFARE Classic and MIFARE DESFire EV1, EV2 and EV3, plus the card serial number of other manufacturers' smart cards. That is the point of the multi-technology design: you keep the old prox population working on the same reader while you issue smart cards or mobile credentials at whatever pace the budget allows, instead of swapping readers twice.
2) Can the MTKB15 wall reader be wired into a third-party access control panel, or does it require a Schlage system?
It interfaces with most access control panels. The system interface is Wiegand, Clock and Data, or OSDP, with optional RS-485 capability, and the default PIV output is 75 bit. Wiegand and RS-485 outputs are standard, so any panel that takes a standard Wiegand or OSDP reader input will accept it. Confirm which reader port your panel head-end is configured for before you terminate.
3) Will the MTKB15 fit a single gang box, and what size is the reader?
It is a single-gang mount reader measuring 5.1 x 3.25 x 0.76 inches (HxWxD), so it covers a standard single-gang box with room to spare and stands under an inch off the wall. It ships with a mounting bracket and a quick-connect cable, and the pigtail is 22 AWG, 12 conductor, 12 inches long, so plan your box or ring so the splice lands inside it.
4) Can staff use their phones instead of badges on a Schlage MTKB15?
Yes. The MTKB15 supports Bluetooth (BLE) and NFC at 2.4 GHz alongside the 13.56 MHz and 125 kHz card frequencies, and works with NFC-open smart phones using Schlage mobile credentials. That means you can run phones and physical cards side by side on the same reader, which is usually how a building actually transitions: staff on mobile, contractors and visitors on cards.
5) What is the difference between the Schlage MTKB15 reader and the Securitron R100 card reader?
They solve access at the door in two different ways. The MTKB15 is a multi-technology reader with a keypad, so a credential can be presented or a PIN entered, and card plus PIN can be required together for multi-factor authentication at higher-security openings. It mounts to a single-gang box and takes 5 to 28 VDC, with Wiegand, Clock and Data and RS-485 outputs for connection to an access control panel. The Securitron R100 is a surface mounted wireless card reader in the RH100 series, so it reads a card and is fitted to the face of the wall rather than into a gang box. If the opening needs a PIN, or needs card plus PIN, the keypad-equipped MTKB15 is the one that covers it.
6) There is no gang box behind the reader location, only a finished wall surface. What reader works there instead of the MTKB15?
The MTKB15 is built for single-gang mounting, so it expects a box behind the wall covering. Where the location has no box and cutting one in is not on the table, the Securitron R100 is a surface mounted wireless card reader in the RH100 series and fixes to the face of the wall. Note the trade in capability: the R100 reads cards, while the MTKB15 adds a keypad for PIN entry and reads 125 kHz proximity and 13.56 MHz smart credentials along with Bluetooth and NFC mobile credentials.
7) Do I need the keypad version, or is a card-only reader enough?
Take the keypad if you want two-factor at the opening. The MTKB15 pairs keypad entry with the credential read so you can require card plus PIN, which is what most facilities specify for server rooms, pharmacy, cash handling and after-hours perimeter doors. If the door only ever needs a badge tap, the keypad is added cost and one more thing to clean. Schlage builds five models in this MTB reader family covering keypad and magnetic stripe variations, so a card-only wall reader is the alternative if PIN is not required.
8) How is the MTKB15 configured after it is mounted, and does it work out of the box?
It has a plug and play mode, so it will read and output on a standard panel connection without setup. Configuration beyond that, such as changing output format or enabling OSDP, is done from the Schlage Engage mobile app rather than by pulling the reader off the wall and setting dip switches. Handy on a retrofit where the reader is already terminated behind a finished wall.
9) Does the MTKB15 support OSDP for encrypted reader communication?
OSDP is one of the supported system interfaces on the MTKB15, along with Wiegand and Clock and Data, and it has optional RS-485 capability. Agencies and campuses that have written OSDP into their standard, typically to get away from unencrypted Wiegand on the reader run, can use this reader on that spec. Run the reader home run as twisted pair if you intend to commission it on OSDP.
10) Will the MTKB15 read government PIV or CAC cards?
The MTKB15 supports ISO 14443A and ISO 15693 credential standards and has a standard default PIV output of 75 bit, which is the format a federal or federally-funded facility's head-end typically expects from a PIV card read. Confirm your access control software is set to accept a 75 bit format on that reader port.
11) Can the Securitron R100 be used as a direct swap for a Schlage MTKB15 on a card-only opening?
Treat them as different devices rather than a drop-in swap, even where only cards are in use. The MTKB15 is wired: it takes 5 to 28 VDC and outputs Clock and Data, Wiegand or RS-485 to an access control panel, and it sits on a single-gang box. The Securitron R100 is a surface mounted wireless card reader in the RH100 series, so the mounting footprint and the way it reports back to the system are not the same. Confirm the panel side and the wall prep before committing either one.
12) Does the reader give the user any feedback that a card was accepted?
There is a tri-color LED (red, green or amber) plus audio feedback on the MTKB15. Worth knowing for high-traffic lobby doors and for ADA-adjacent situations where you want both a visual and an audible confirmation rather than relying on the door latch sound alone.
13) Is the MTKB15 a commercial-grade reader or is it meant for homes and small apartments?
This is a commercial product. It is built for commercial access control, with a metal-tolerant, exterior-rated housing, a -31 to 151 F operating range and panel-level outputs (Wiegand, Clock and Data, OSDP) rather than a standalone residential keypad lock. A property manager running a multi-family building with a real access control head-end is the right buyer; a single-door owner with no panel is not, and would be better served by a standalone electronic lock.
