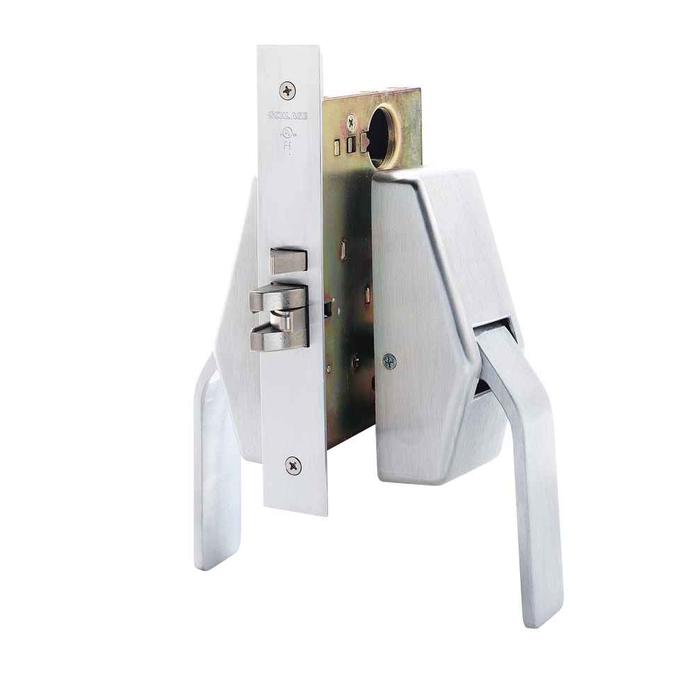

Schlage HL6-9465 Hospital Push/Pull Mortise Latch - Closet/Storeroom Function Lock

Schlage HL6-9465 Hospital Push/Pull Mortise Latch - Closet/Storeroom Function Lock

(No reviews yet) Write a Review

Model: SCH-HL6-9465-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,494.00
$975.28
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

HL6-9465 - CLOSET/STOREROOM FUNCTION LOCK

  • Latchbolt retracted by paddle from either side;
  • Deadbolt actuation by key.


Schlage HL6 SERIES OVERVIEW

Hospitals and other healthcare environments have special requirements for noise reduction to help patients heal faster and staff perform more accurately and efficiently.

There are many sources of noise, but choosing quiet door hardware can help reduce excess noise and create quieter environments. The newly redesigned HL Series quiet hospital push/pull hardware offers a proven 50% quieter paddle operation than our previous product, providing healthcare organizations a reliable solution for noise reduction initiatives.

The HL Series includes a full line of solutions that deliver both superior quality and exceptional performance:

HL6

A durable and versatile latching solution. The traditional design has a short throw angle, allowing the door to be opened with an easy push or pull action, even when hands are not free.

PL7/PL8 privacy function

This patented design is ideal for restrooms or patient bathrooms. The privacy function is actuated by a thumbturn and an opposite side release provides for access in case of emergency.

HL6 mortise lock option

Combines the features and convenience of the HL6 push/pull operation with the Schlage L Series heavy-duty mortise lock.

FEATURES & BENEFITS

The HL Series of quiet push/pull latches are non-handed and UL listed for all single labeled metal or wood doors, making them ideal for healthcare applications, restrooms, commercial and institutional doors, including single fire doors. The short throw angle allows door opening with an easy push or pull action.

Quiet functionality

  • Dampened paddle action – depression and snap back – reduces noise associated with lock operation
  • Proven 50% quieter paddle operation – both in the pull and push direction – than our previous solution
  • Comes standard on all HL Series hardware

Product features

  • Available in tubular, privacy and mortise
  • Classic design suites with existing solutions
  • Variety of vertical or horizontal mounting positions fits a wide range of applications
  • 16 mortise functions, including electrified
  • 10 finishes, including antimicrobial options
  • Optional engraving on handles

Options

  • B: Brass base material for US26 and US260 finishes
  • E: Engraved handles – “PUSH” and “PULL”
  • EN: Entrance only latch
  • EO: Exit only latch
  • L: Lead lined
  • SOC: Pin-in-socket security screws

Finishes

  • 605 (US3) Polished brass
  • 606 (US4) Satin brass
  • 612 (US10) Satin bronze
  • 613 (US10B) Oil-rubbed bronze
  • 625 (US26) Polished chrome
  • 626/626AM (US26D) Satin chrome
  • 629 (US32) Bright stainless steel
  • 630/630AM (US32D) Satin stainless steel


DOWNLOADS & RESOURCES

Product information


Installation instructions


Manufacturer Resources

Product Specs

Series:
HL6 Series
Duty Level:
Heavy Duty
Handle Type:
Lever
Keyed Function:
Single Cylinder
Warranty:
10 Year
Standard Strike:
ASA strike, ANSI 115.1 (1-1/4" x 4-7/8")
Keyed:
Yes
Subcategory:
Hospital Latches
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Hospital Latches
Electronic:
No
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Closet/Storeroom
Product Model:
HL6-9465
Product Function:
Closet/Storeroom
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Product Substrate:
Zinc and Steel
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage SCH-HL6-9465-626 – Frequently Asked Questions

1) How does the Schlage HL6-9465 closet/storeroom function actually work day to day?
The paddle retracts the latchbolt from either side, so the door opens with a push or pull even when someone's hands are full. Security comes from a separate deadbolt that is thrown and retracted by key only. That means the door is not self-locking: staff key the deadbolt when the closet needs to be secured. It's a single cylinder arrangement, so the key operates from one side.
2) Will the HL6-9465 hospital latch fit my door and existing frame prep?
It's a mortise latch cut for a 2-3/4 inch backset on a 1-3/4 inch thick door, which is the standard commercial thickness. On the frame side it uses an ASA strike to ANSI 115.1, 1-1/4 inch by 4-7/8 inch, so if your frame is already prepped for a standard ASA mortise strike the cutout matches. Doors thinner than 1-3/4 inch are outside what this one is built for.
3) Do I need to specify handing when ordering the HL6-9465?
No handing to specify. The HL Series push/pull latches are non-handed, so one part covers left and right hand openings and you can stock a single item across a floor of doors instead of two.
4) Can a push/pull hospital latch like this go on a fire rated door?
The HL Series quiet push/pull latches are UL listed for all single labeled metal or wood doors, so single fire door openings are covered. Pairs are a different situation and are not part of that statement.
5) What is the closest cross-brand equivalent to the Schlage HL6-9465 hospital push/pull mortise latch?
The ABH 6600 Series is the nearest match. Like the HL6-9465, it is a hospital push/pull latch built on a mortise lock body with a 2-3/4 inch backset, so it addresses the same mortise-prepped opening rather than a tubular one. The difference to confirm before swapping is function: the Schlage HL6-9465 is a closet/storeroom function, with the latchbolt retracted by the paddle from either side and the deadbolt thrown by key, so whichever mortise function you order from the ABH 6600 line has to match that key-operated deadbolt behavior.
6) If the door is not prepped for a mortise lock, what hospital push/pull latch should be used instead of the HL6-9465?
Use a tubular hospital latch instead. The Schlage HL6-9465 is a mortise lock and requires a mortise pocket plus an ASA strike prep, ANSI 115.1 at 1-1/4 inch by 4-7/8 inch. The Trimco 1562A Hospital Series is a tubular push/pull latch, which suits a bored door prep. Note that the Trimco 1562A is a passage function with levers down, so it gives you no key control - if the opening needs the keyed deadbolt the closet/storeroom HL6-9465 provides, a tubular passage latch will not cover it and the door needs to be prepped for mortise.
7) What finishes does the Schlage HL6-9465 come in, and which ones hold up in a healthcare corridor?
Eight finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright chrome, 626 satin chrome, 629 bright stainless steel and 630 satin stainless steel. For patient-contact areas the Schlage HL line also offers antimicrobial versions of the satin chrome and satin stainless (626AM and 630AM). If you're matching existing openings, 626 and 630 are the usual institutional standards.
8) What are the option suffixes I can add to an HL6 push/pull latch order?
Six: B for brass base material on US26 and US260 finishes, E for handles engraved PUSH and PULL, EN for an entrance only latch, EO for an exit only latch, L for lead lined (radiology and imaging rooms), and SOC for pin-in-socket security screws. The SOC screws are worth specifying in behavioral health or any area where fasteners get picked at.
9) Should I use the HL6 mortise latch or a tubular push/pull latch?
The mortise version, which is what the HL6-9465 is, takes a pocket cut in the door edge and an ASA strike, and it gives you a key-operated deadbolt for real security on a storeroom or supply closet. A tubular push/pull is a lighter prep and suits passage-only openings where nothing needs locking. If the door only has to swing freely on a push, tubular is less work; if it holds stock or meds, go mortise.
10) What other hospital push/pull latches could I look at instead of the Schlage HL6-9465?
The closest mortise equivalent we carry is the ABH 6600 Series hospital push/pull latch, which is also built on a 2-3/4 inch backset. If you want a lower-profile paddle, ABH's 6800 Series and the quiet 6800Q with the round cover are the options. The ABH 6000 Series and the Kaba Ilco 459 push/pull paddle are the general-purpose choices. Trimco's 1562A is tubular and passage function, so it gives you no locking at all, which makes it a substitute for door feel but not for a storeroom opening.
11) Is the Schlage HL6-9465 an electrified lock?
No, the HL6-9465 is mechanical only, with a key-operated deadbolt and no wiring. Schlage does build electrified functions into the HL6 mortise range, 16 mortise functions in total including electrified, so if you need the opening tied into access control you'd specify a different function number in the same family and keep the same paddle look across the floor.
12) Is the ABH 6000 Series a substitute for the Schlage HL6-9465?
Only for openings that do not need key control. The ABH 6000 Series is a push/pull hospital latch with ADA compliance, but the Schlage HL6-9465 is a keyed single-cylinder closet/storeroom mortise lock - the paddle retracts the latchbolt from either side and a key throws the deadbolt. If the storeroom or closet door has to lock, match it to a mortise hospital latch such as the ABH 6600 Series rather than the 6000.
13) We need a lower-profile hospital latch than the Schlage HL6-9465 - what are the options?
The ABH 6800 Series is a low profile hospital push/pull latch with ADA compliance, and the ABH 6800Q is the quiet low profile version with a round cover. Both reduce the projection of the paddle hardware compared with the HL6-9465, which uses the traditional HL6 paddle design with a short throw angle. The trade-off is function: the HL6-9465 is a keyed closet/storeroom mortise lock with a key-operated deadbolt, so the low-profile ABH units suit corridor and patient-room doors more than they suit a door that must be locked.
14) Is the Kaba Ilco 459 push/pull paddle a replacement for the Schlage HL6-9465?
No - they are not the same class of item. The Kaba Ilco 459 Series is a push/pull paddle, meaning the operating trim. The Schlage HL6-9465 is a complete heavy duty mortise latching assembly for 1-3/4 inch doors, non-handed, with a 2-3/4 inch backset, an ASA 1-1/4 inch by 4-7/8 inch strike, and a key-operated deadbolt. If you are only replacing a damaged paddle on existing hardware, a paddle is the right category; if you are securing a closet or storeroom opening, you need the mortise latch.
15) For a hospital latch that has to be quiet, how does the Schlage HL6-9465 compare with the ABH 6800Q?
Both are offered as quiet-operating hospital latches. The HL6 Series uses a dampened paddle action on depression and snap back and is rated 50 percent quieter in both push and pull directions than the previous Schlage solution; that dampening is standard across HL Series hardware including the HL6-9465. The ABH 6800Q is a quiet low profile push/pull latch with a round cover. The deciding factor is usually the opening rather than the noise claim: the HL6-9465 is a keyed closet/storeroom mortise lock, so it covers doors that must lock as well as run quietly.
16) Is this a quieter latch than older hospital push/pull hardware?
Yes. The redesigned HL Series uses a dampened paddle action on both depression and snap back, and Schlage rates it 50 percent quieter than the previous product, in both the push and pull directions. The damping is standard on all HL Series hardware, not an add-on you specify.
17) Can the HL6 paddles be mounted horizontally, or only vertically?
Both. The HL Series supports a range of vertical and horizontal mounting positions, which matters on narrow stiles, doors with vision lites, or where you're matching paddle orientation to what's already installed down the corridor.
18) How durable is the HL6-9465 for a high traffic supply room door?
It's built as heavy duty commercial hardware in zinc and steel, and the HL6 mortise option pairs the push/pull operation with the Schlage L Series heavy-duty mortise lock body. That's the construction for a door being hit dozens of times a shift with a cart or a hip.
19) Can I standardize a facility on one hospital latch line if some doors are keyed and some are not?
Yes, and there are two ways to do it. Staying with Schlage, the HL Series spans tubular, privacy and mortise hardware with 16 mortise functions including electrified, so the HL6-9465 closet/storeroom mortise lock can sit alongside non-keyed HL6 openings in a matching classic design. Going cross-brand, ABH covers the same spread with the 6600 Series mortise lock latch for keyed doors and the 6000 or 6800 Series push/pull latches for the rest. Either way, specify one finish family across the facility - the HL6-9465 is offered in 605, 606, 612, 613, 625, 626, 629 and 630.
