Name: Schlage ND80 Storeroom Lock, ANSI F86 Grade 1 Cylindrical Lever Lock
Brand: Schlage
SKU: ND80BD SPA 626
Price: 473.77 USD
Availability: InStock
Rating: 5 (2 reviews)

Product Overview
Parts & Accessories
FAQs

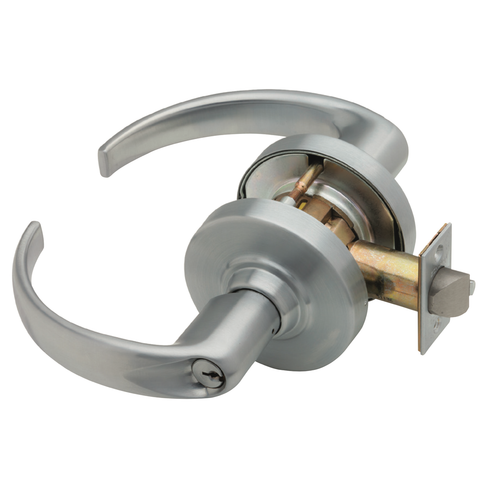

Schlage ND80 Storeroom Lock, Grade 1 Cylindrical Lever

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: 13-247: 2-3/4" Backset with 1-1/8" x 2-1/4" Square Corner Faceplate.
Strike: 10-025: 1-3/16" Lip ANSI, No Box, 1-1/4" x 4-7/8".
Door thickness: 1-3/4".
Strike lip length: 1-3/16".
Keying (for P6, P and T cylinders): KD - Keyed different.
Keys (for P6 and P cylinders): Two nickel silver cut keys per lock.

Storeroom Function (ANSI F86)

Outside lever fixed. Entrance by key only. Inside lever always unlocked for immediate egress. Also available with Request to Exit (RX) function.

ND Series Overview

The Schlage ND Series offers a full breadth of commercial lock options with a suited combination of mechanical, electrified and electronic options. This overview covers common characteristics for the mechanical and electrified lock information.

Beyond Grade 1 performance is the hallmark of the mechanical and electrified locks. ND Series locks are tested to withstand 3,100 in-lb. of abusive lever torque - more than 2-1/2 times the Grade 1 standard requirement. Offset lever pull testing up to 1,600 lbs. assures superb resistance against pry bar attacks. More than strong, ND Series is built to last and shows nearly zero droop or wobble after 16 million cycles.

All ND Series locks including electronic and ligature-resistant trim use the common cylindrical ANSI 161 door preparation making them easily interchangeable. They are ideal for all new construction and retrofit applications.

ND Series Mechanical Lock

The ND mechanical lock is the foundation for both the wired electrified and NDE wireless electronic lock. Schlage continues to advance the cylindrical lock with capabilities including:

Unparalleled strength: prevents access when subjected to torque loads up to 3,100 in-lbs (2.6x BHMA Grade 1), withstands pry bar attacks of 1,600 lbs (8x BHMA requirements), and withstands 100 hammer blows (20x BHMA requirements)
Exceptional durability: cycle tested to over 16 million cycles (16x BHMA requirements) with near zero droop or wobble, without the use of set screws or O-rings
Improved feel: strength and durability improvements are perceptible in operation
Improved installation: easier than previous generations, without set screws or O-rings

Features and Benefits

Security

Significantly exceeds ANSI/BHMA Grade 1 requirements
No access with minimum 3,100 in-lb. abusive lever torque, equivalent to over 690 lbs. applied to the end of a 4-1/2" lever, 2.6 times over the BHMA requirement*
No access with minimum 1,600 lbs. offset lever pull for protection against pry bar attacks, 8 times over the BHMA requirement*
5 points of engagement provide nearly zero droop and wobble after 16 million cycles, 16 times over the BHMA requirement*, without the use of set screws or o-rings
High security locking when used with Primus XP UL 437 listed cylinders

Function Availability and Convenience

24 mechanical/4 electrified functions in the ND Series (custom functions available upon request)
Multiple key systems available: open, patented and restricted
Four electrified functions auto-detect 12/24V DC operation and, with maximum current draws of 0.4 amps and 0.1 amps holding current, eliminate heated levers
Indicator roses for classroom applications
Three spring cage sets support all Schlage plus eight competitive cylinder formats

Aesthetics

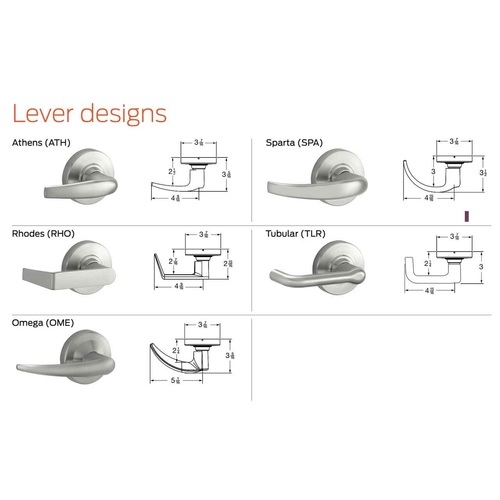

Nine lever and four rose designs
Ten available finishes
Suites with Schlage ALX Series Grade 2 locks, Von Duprin exit devices and other Schlage products

Options

Vandlgard™ models have a lever that freely rotates up and down when locked to protect the chassis from excessive force on the lever to prevent vandalism.

_{*Beyond Grade 1 performance for ND Series locks with Schlage cylinders only (Conventional, FSIC & SFIC). Performance with non-Schlage cylinders will exceed BHMA Grade 1 requirements, but may be less than that of Schlage cylinders.}

Available ND Series Functions

Other ND Series models can be found in the ND Series section. In-depth function descriptions are available in the ND Series catalog linked below.

Non-keyed functions

ND10 ANSI F75 Passage Lock
ND12 ANSI F89 Exit Lock (mechanical and electrified)
ND40 ANSI F76 Privacy Lock
Plus four additional functions

Keyed functions

ND50 ANSI F82 Entrance/Office Lock
ND53 ANSI F109 Entrance Lock
ND70 ANSI F84 Classroom Lock
ND80 ANSI F86 Storeroom Lock (mechanical and electrified)
Plus six additional functions

Special functions

ND30 ANSI F77 Patio Lock
ND72 ANSI F80 Communicating Lock
Plus five additional functions

Certifications and Testing

Certifications

Tested and certified under ANSI/BHMA A156.2 Series 4000, Grade 1
UL/cUL listed: All locks 3-hour, A label fire door 4' x 10' single door and 8' x 8' pair doors; 90-minute 8' x 10' pair doors with 3/4" latch option
Meets ADA requirements
Meets BAA (Buy American Act)
ANSI/BHMA Certifications: All ND Series comply with A156.2 performance requirements for Grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor); wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices.
ICC Certifications: Complies with ICC A117.1 Accessible and Usable Buildings and Facilities.
UL/cUL Certifications: All locks 3-hour A label single fire door 4'0" x 10'0"; pair doors 3-hour fire door 8'0" x 8'0" with 3/4" latch option; pair doors 90-minute fire 8'0" x 10'0" with 3/4" latch option.
CA Fire Code Certifications: All levers with a return to door of 1/2" (64 mm) or less comply (Rhodes, Sparta, Tubular, Omega, Longitude, Boardwalk).
FL Building Code Certifications: Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes.
Federal Certifications: Meets FF-H-106C Series 161.
Other Certifications: UL294, CSA C22.2 No. 205-M1983, FCC Part 15, IC RSS-210, RoHS.

Testing

ANSI Cycles Tested: 3 million cycles (3x ANSI Grade requirement).
Abusive locked lever torque: Minimum 3,100 inch-pounds without gaining access.
Offset lever pull: Minimum 1,600 foot pounds without gaining access.
Vertical lever impact: Minimum 100 impacts without gaining access.
Cycle life: Minimum 16 million cycles; 1) with no visible lever sag; 2) without the use of performance aids (i.e. set screws, spacers, etc.).

Downloads and Resources

Technical Resources

Manufacturer Resources

Product Specs

Series:: ND Series
Grade:: Grade 1
Duty Level:: Heavy Duty
Keyed Function:: Single Cylinder
Keys Included:: 2
Warranty:: 10 Year
Standard Latch:: 13-247: Deadlatch - 2-3/4" Backset - Square corner, 1-1/8" x 2-1/4"
Standard Strike:: 10-025: ANSI, no box, 1-1/4" x 4-7/8" (1-3/16" Lip length) - Default Strike
Handle Type:: Lever
Subcategory:: Cylindrical Lever Locks
ANSI/BHMA:: F86
Product Group:: Mechanical Locks
Product Subgroup:: Bored Locksets
Product Type:: Leversets
Keyed:: Yes
Electronic:: No
Commercial/Residential:: Commercial
Cylinder and Keyways:: Conventional 6-pin (Schlage C Keyway); SFIC Prep Less Core; FSIC Prep Less Core; FSIC Prep with Core; FSIC Prep with Construction Core; Less Cylinder
Lock Type:: Cylindrical
Lock Function:: Storeroom
Product Attribute:: Cylindrical Locks
IMAP Policy:: Yes
Segment:: Door Hardware
Tags:: nd80 schlage, schlage nd 80, schlage nd80ld
Product Model:: ND80
Collection:: ND-Series
Product Function:: Storeroom
Door Hand Direction:: Non-Handed
Product Substrate:: Zinc and Steel
Product Category:: Mechanical Locks
Department:: Door Hardware

Schlage ND80BD SPA 626 – Frequently Asked Questions

1) What does the ND80 storeroom function actually do on the door?

Outside lever stays fixed at all times and the door opens from outside by key only. The inside lever is always free, so anyone inside walks straight out without a key or a thumbturn. The door relocks behind them, nothing to remember to set. That is ANSI F86, and it is the function for stock rooms, mechanical rooms, IT closets and any exterior door that must never be left unlocked by accident.

2) Does the Schlage ND80 need to be ordered left hand or right hand?

No handing to specify. The ND80 is non-handed, so one part number covers both swings and the same lock can be moved between openings in a building. Same lever, rose and finish go on both faces.

3) Will the ND80 latch into the strike that is already in my frame?

The standard strike shipped with the lock is the 10-025 ANSI strike, 1-1/4 x 4-7/8 inches with a 1-3/16 inch lip and no box. If your frame already carries an ANSI strike of that size, the new latch lines up with it and you can leave the frame alone. Frames with a non-ANSI or T-strike cutout need the frame prep changed or a different strike ordered. The 1-3/16 inch lip is sized for a standard jamb face; deep trim or a heavy stop can call for a longer lip.

4) Which cylinder option should I pick for the Schlage ND80 if my building is on small format interchangeable core?

Order the BD option, SFIC prep less core, and drop in your own SFIC cores so the lock joins your existing keying. If you are on Schlage full size interchangeable core, JD is FSIC prep less core, RD comes with the core, and TD comes with a construction core for a job that has to be keyed temporarily during build-out and cored later. PD is the conventional 6-pin cylinder in the Schlage C keyway, and LD is less cylinder for anyone supplying a competitive cylinder. Three spring cage sets in the ND Series carry all Schlage cylinder formats plus eight competitive formats.

5) Can I get multiple Schlage ND80 storeroom locks keyed alike?

Yes. Keying is a choice at order: KD keyed different is standard, KA keys a group of locks to one key, and you can also order the lock less cylinder. On the KA option you give the key code with the order. Keyed cylinders ship with two nickel silver cut keys per lock, and the conventional cylinder is the Schlage C keyway.

6) What is the closest Grade 1 storeroom lever to the Schlage ND80 if the Schlage keyway is not required?

There is no direct Grade 1 storeroom-function lever peer among the comparable commercial cylindrical locks; the nearest storeroom-function alternates are Grade 2. The Hager 2580 with Withnell lever is a Grade 2 storeroom cylindrical lock covering doors 1-3/8 inch to 2 inch, and the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. The ND80 itself is ANSI F86 storeroom at ANSI/BHMA Grade 1, so on an opening where the Grade 1 rating is written into the spec, the ND80 is the one that meets it.

7) Which storeroom lever fits a 2 inch thick door without an extended-thickness order?

The Hager 2580 storeroom cylindrical lock with Withnell lever carries a published door thickness range of 1-3/8 inch to 2 inch as standard, so a 2 inch leaf is inside its stock range. The Schlage ND80 ships standard for a 1-3/4 inch door and takes an Extended-Equally (EE) selection with the thickness called out when the leaf is thicker than that.

8) What should be used instead of an ND80 on an opening that must stay unlocked in both directions?

A storeroom lock is the wrong function there - the ND80 keeps the outside lever fixed with entry by key only. For a permanently free opening, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers and a fire rating, covering doors 1-3/8 inch to 2-1/4 inch, and the Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology. The Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever, fire rated, for 1-3/4 inch to 2 inch doors.

9) Which cylindrical lever locks accept a Schlage C keyway so they can be keyed into the same system as an ND80?

The ND80 uses the Schlage S123 cylinder and keyway family and is offered with a conventional 6-pin Schlage C keyway cylinder. Among the alternates, the Cal-Royal AG00 entrance lever and AG03 classroom lever are both built with a 6-pin Schlage C keyway keyed different, the AG00 on a 2-3/8 inch backset and the AG03 on a 2-3/4 inch backset. The Arrow MK33 asylum cylindrical lock uses a conventional Schlage C keyway cylinder as well. That lets a facility on a Schlage C system pick up non-storeroom functions without a second key system.

10) What is the right lock for a classroom door if a storeroom function is not what the code official wants?

The Dexter C1000 classroom cylindrical lever is Grade 1, clutching and keyed, for doors 1-3/8 inch to 1-3/4 inch, and the C1000 classroom security version adds the classroom security function at the same grade and thickness range. The Cal-Royal AG03 is a Grade 2 classroom lever on a 2-3/4 inch backset. Schlage's own classroom equivalent within the same series is the ND70, ANSI F84.

11) What replaces an ND80 on an office door where the occupant needs to lock and unlock the outside lever without a key?

Storeroom function does not do that - the ND80 outside lever stays fixed and opens by key only. An entry/office function is the one that lets the occupant control the outside lever. The Dexter C1000 entry/office cylindrical lever is Grade 1, clutching and keyed, for 1-3/8 inch to 1-3/4 inch doors; the Falcon B511CP6D is a Grade 2 medium duty entry/office lever; the Hager 2525 is a Grade 2 commercial entry lock for 1-3/8 inch to 2 inch doors. Within the ND Series the equivalent is the ND50, ANSI F82.

12) What is the alternative to an ND80 for a utility or holding room that needs a key on both sides?

That is asylum or institution function, not storeroom - the ND80 leaves the inside lever always unlocked for immediate egress, which is the opposite of what a holding room calls for. The Dexter C1000 asylum lock is ANSI F87 at Grade 1 for doors 1-3/8 inch to 2 inch, and the Arrow MK33 is a Grade 2 heavy duty asylum/institution cylindrical lock with a ball knob and a conventional Schlage C keyway cylinder.

13) How does the ND80 hold up on a high traffic door compared to a Grade 2 storeroom lever?

The ND80 is certified under ANSI/BHMA A156.2 Series 4000 Grade 1 and tested well past it: it holds against 3,100 in-lb of abusive lever torque, 1,600 lbs of offset lever pull, 100 vertical lever impacts, and runs 16 million cycles with no visible lever sag and no set screws or O-rings propping it up. For a lower-traffic storeroom where Grade 1 is not required, the Hager 2580 with the Withnell lever is a Grade 2 storeroom lever, and the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt.

14) Which ND lever styles meet the California fire code return requirement?

Six of the nine styles qualify: Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk all have a return to door of 1/2 inch or less, which is what the CA fire code compliance rests on. The full lever range is Athens, Boardwalk, Broadway, Latitude, Longitude, Omega, Rhodes, Sparta and Tubular. If you are specifying into California, pick from the six.

15) Does the Schlage ND80 meet ADA and accessibility requirements for a public building?

Yes. The ND80 meets ADA requirements and complies with ICC A117.1 for accessible and usable buildings, which is what a lever handle is specified for in the first place: no tight grasping or wrist twisting to operate. It also meets the Buy American Act and the federal FF-H-106C Series 161 spec, which matters on government work.

16) What finish should I order to match the rest of the doors in my building?

Ten finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial, and 643E aged bronze. 626 satin chrome is the usual commercial standard. The 626AM antimicrobial version is the one to pick for healthcare and food service touchpoints. The ND Series also suites with Schlage ALX Series Grade 2 locks and Von Duprin exit devices, so the finish carries across the openings where you are not using a Grade 1 cylindrical lock.

17) Can I add request-to-exit monitoring to a Schlage ND80 storeroom lock?

Yes, the ND80 is offered with a Request to Exit (RX) function, and the RX switch is available as an ND Series part if you are adding it. The lock itself is mechanical, not electronic, so the RX switch is a signal to your access control panel telling it the inside lever was turned. It does not electrify the lock or change how the door is unlocked from outside.

18) Should I use an ND80 storeroom lock or an ND70 classroom lock on a school door?

Different jobs. The ND80 keeps the outside lever locked permanently and only a key gets you in, which suits storage, mechanical and utility rooms where nobody should be able to leave the door unsecured. The ND70 classroom function (ANSI F84) lets a key lock and unlock the outside lever so a teacher can leave the room open during the day. For an office that needs to be left unlocked at will, the ND50 entrance/office (F82) or ND53 (F109) is the one. All of these share the same ANSI 161 prep, so choosing wrong is a chassis swap, not a new door.

19) Is there a Schlage ND80 version that resists people yanking on a locked lever?

Yes, Vandlgard models. The lever spins freely up and down when the lock is secured, so force applied to the lever never reaches the chassis. It is the option for locked doors in schools, transit spaces and anywhere the public gets a hand on the lever. Standard ND80 chassis already holds 3,100 in-lb of abusive lever torque without giving access; Vandlgard means the abuse does not load the chassis at all.

20) I need a Grade 1 storeroom lever but not Schlage. What else is there?

Within Grade 1 cylindrical levers, the Corbin Russwin CL3100 Series is a Grade 1 vandal resistant cylindrical lever line rated for 1-3/4 to 2 inch doors and fire rated, and the Falcon K Series is a Grade 1 heavy duty cylindrical line covering 1-3/8 to 2-1/4 inch doors with a fire rating. Both of those are catalogued here in non-keyed passage form, so a storeroom function has to be specified from the series rather than taken off the shelf. If you can accept Grade 2, the Hager 2580 and Cal-Royal AG05 are storeroom-function levers as sold, both covering 1-3/8 to 2 inch and 1-3/8 to 1-3/4 inch doors respectively.

21) Can I use a high security key system with the Schlage ND80?

Yes. Used with Primus XP cylinders, which are UL 437 listed, the ND80 becomes a high security opening with key control. Schlage's open, patented and restricted key systems are all available on the ND Series, so you can put storerooms on a restricted keyway while the rest of the building runs standard. One caution on the beyond-Grade-1 numbers: the 3,100 in-lb torque and 1,600 lb pull figures apply to ND locks with Schlage cylinders (conventional, FSIC and SFIC). With a competitive cylinder fitted the lock still exceeds BHMA Grade 1, but not necessarily by those margins.

22) What is a lighter-duty storeroom lever for a low-traffic interior door?

The Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for doors 1-3/8 inch to 1-3/4 inch, and the Hager 2580 with Withnell lever is a Grade 2 storeroom cylindrical lock. Both hold the outside lever locked with key entry the same way an F86 storeroom lock does. The ND80 is the Grade 1, heavy duty version of that function, which is the difference that matters on a door seeing constant traffic.

23) Is a dummy lever a substitute for a storeroom lock on the inactive leaf of a pair?

No - a dummy trim has no latch and no chassis, so it cannot secure or latch anything. The BEST 9K Series 1DT single dummy trim is a Grade 1 heavy duty non-keyed dummy, and the BEST 7KC Series 1DT is the Grade 2 medium duty equivalent; the Accentra 455LN Augusta is a Grade 1 single dummy lever. Those are pull trim only. The ND80 is a keyed cylindrical lock with a 13-247 deadlatch on a 2-3/4 inch backset, which is what actually holds the leaf.

24) Can a keypad leverset take the place of a keyed storeroom lock on a utility or storage room?

They solve access differently. The Lockey 1150 is a heavy duty mechanical keypad lever set with a double combination, covering doors 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. Both open on a code rather than a key. The ND80 is a mechanical, non-electronic lock keyed to a Schlage cylinder and ships with two cut keys, which is what keeps a storage room on the same key system as the rest of the building.

25) Which lever locks work for an electrified opening tied to an access control system instead of a mechanical storeroom lock?

The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever at 12VAC/DC for doors 1-3/4 inch to 2 inch, offered with the NZ lever and D rose. The ND80 itself is a mechanical, non-electronic lock, and the ND Series carries four electrified functions alongside it, including an electrified ND80, all on the common ANSI 161 cylindrical door prep.

26) Will a residential-grade lever hold up on the same door an ND80 would go on?

They are built to different service levels. The Kwikset 200BRNL Breton passage lever and the 300BRNL Breton privacy lever are Grade 3 for doors 1-3/8 inch to 1-3/4 inch, and the Cal-Royal AUS00 entrance/office lever is Grade 3 with a solid brass forged body for the same thickness range. The ND80 is a Grade 1, heavy duty commercial lock in zinc and steel, tested to over 16 million cycles with near zero lever droop.

27) What matches a storeroom lock on the restroom or bedroom doors of the same facility?

Those openings take privacy function, which locks from the inside without a key. The Hager 2540 with Withnell lever is a Grade 2 privacy cylindrical lock for doors 1-3/8 inch to 2 inch, and the Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob, non-keyed and fire rated. Schlage's own privacy model in the same series is the ND40, ANSI F76, which shares the ND lever and finish range so a facility can keep one look across functions.

28) Which storeroom-type lever accepts a small format interchangeable core without an adapter?

The ND80 is offered in BD small format interchangeable core prep less core, along with JD Schlage FSIC prep less core, RD FSIC prep with core, and TD FSIC prep with construction core, so an SFIC facility can order it cored or coreless directly. Where an existing opening is Yale-prepped and the intent is to carry a Schlage cylinder into it, the Accentra 107S is a Schlage cylinder adapter kit for Yale hardware.

29) What is the ND80 lock body actually made of?

Zinc and steel, with a cast steel spindle and an expanded cylinder support inside the chassis. The five points of engagement are what hold the lever square, which is why it shows near zero droop or wobble after 16 million cycles without set screws or O-rings doing the work. It is a heavy duty commercial lock, not a residential one.

30) Does the ND80 storeroom lock work in a hurricane zone or a Florida coastal building?

Yes. ND Series locks comply with the Florida Building Code under ASTM E330, E1886 and E1996, and with Miami Dade TAS 201, 202 and 203 hurricane requirements. That covers the lock; the door and frame assembly carry their own approvals.

31) Is a Grade 1 passage lever a cheaper way to get the same chassis as a storeroom lock?

The chassis grade can match while the function does not. The Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever for 1-3/4 inch doors, and the Design Hardware J75 is the Grade 2 passage version at the same thickness. Neither is keyed. The ND80 is a keyed single cylinder lock in ANSI F86 storeroom function, so a passage lever leaves the door open to anyone rather than restricting it to a key holder.

How fast can I get the Schlage ND80BD SPA 626 delivered?

Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.

Can I return it if it doesn’t work for me?

Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.

Does the Schlage ND80BD SPA 626 come with a warranty?

Absolutely. The Schlage ND80BD SPA 626 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.

How do I get technical support or installation help for the Schlage ND80BD SPA 626?

You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us

Why buy the Schlage ND80BD SPA 626 from ZenSupply?

ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.

Product Reviews

5
Schlage ND80

Posted by Chris Hikel on Dec 12th 2024

The product is a high-quality commercial storeroom lock. Very simple install. Beautiful looking. Met all the needs of my client.
5
Schlage ND80 Storeroom Lock

Posted by Noah on Jun 5th 2024

It’s a great investment for peace of mind and security.
