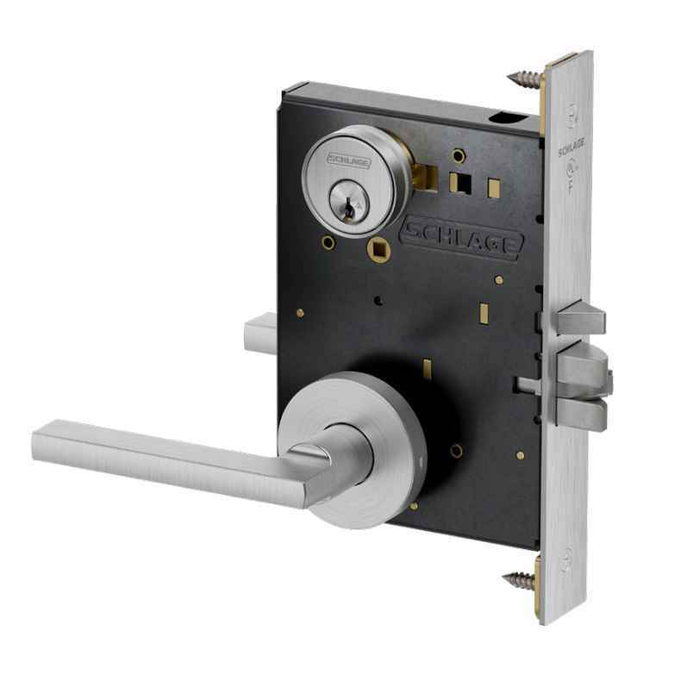

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Broadway Lever

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Broadway Lever

(No reviews yet) Write a Review

Model: PM056P BRWA 626
$977.00
$610.39
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$977.00
$610.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage PM056 Grade 1 Entrance/Office with Automatic Unlocking Mortise Lock, Standard Cylinder - Broadway Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.



PM056 - Entrance/Office Lock with Automatic Unlocking

  • Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side
  • Outside lever is made inoperative by key outside or by turning inside thumbturn
  • Key outside unlocks outside lever and retracts latchbolt
  • Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt and unlocks outside lever; closing door also unlocks preventing lock-out
  • Inside lever always free for immediate egress

Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
F01
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Passage
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM056
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage PM056P BRWA 626 – Frequently Asked Questions

1) How does the Schlage PM056 entrance/office lock with automatic unlocking actually work day to day?
The PM056 has a key cylinder outside and a thumbturn inside. Turning the inside thumbturn, or the key outside, makes the outside lever inoperative. The key outside unlocks the outside lever and retracts the latchbolt. Turning the inside lever retracts the latchbolt and unlocks the outside lever, and closing the door also unlocks it, which is the automatic unlocking part and what prevents staff locking themselves out. The inside lever is always free for immediate egress.
2) Will the Schlage PM056 mortise lock fit a 2 inch thick door?
Yes, but you have to call it out. The PM Series mortise case is built for 1-3/4 inch doors as standard, with 1-3/8 inch the minimum, and it fits doors up to 2-1/2 inches thick. Anything over 1-3/4 inches, you specify the door thickness and the position of the lock in the door when ordering, and that is available in the EE configuration only.
3) Does the Schlage PM056 come with a cylinder, or do I order that separately?
It depends on which cylinder option you pick. The choices are P for a conventional 6-pin cylinder keyed 5, T for an FSIC construction core, L for less conventional 6-pin cylinder, B for less SFIC, and J for less FSIC. The three less options ship prepped but empty, which is what you want if you are keying into an existing Schlage SFIC or FSIC system and supplying your own cores.
4) Can I swap a Schlage L Series mortise lock case for a PM Series one in the same door?
Do not assume it drops in. The PM case measures 4-7/16 by 6-1/16 by 1 inch, and Schlage notes that PM and L Series case and cover holes differ. Plan on checking the prep against the PM template before you commit, particularly the mounting hole pattern.
5) What is the closest equivalent to the Schlage PM056 entrance/office mortise lock from another manufacturer?
The Cal-Royal NM8050 is a heavy duty Grade 1 mortise lockset built for the entrance/office function with an auxiliary deadlatch, and it is listed for 1-3/4 inch doors, matching the standard door thickness the Schlage PM056 is built around. Both are Grade 1 mortise bodies. The PM056 adds the automatic unlocking behavior, where closing the door unlocks the outside lever to prevent a lock-out, and it uses a 2-3/4 inch backset with an ANSI curved lip strike and dust box.
6) I need an office function mortise lock but do not want a key cylinder in it. What should I use instead of the PM056?
The Hager 3850E is a Grade 1 office function mortise lock with lever and escutcheon that is non-keyed and uses a 2-3/4 inch backset, the same backset as the Schlage PM056. It is listed for doors 1-3/4 inch to 2-1/2 inch. The PM056 is configured with a key cylinder outside and a thumbturn inside, with cylinder options including conventional 6-pin, less SFIC, and less FSIC preps.
7) If the opening needs to stay locked from outside at all times rather than be left unlocked during business hours, what do I order instead?
That is storeroom function, not entrance/office. The Accentra 8805FL is a Grade 1 storeroom mortise lock from the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option. The Schlage PM056 is specified so the inside thumbturn or the outside key can leave the outside lever unlocked, and closing the door returns it to unlocked.
8) Is the Baldwin 6301 mortise lock body a drop-in substitute for the Schlage PM056?
No. The Baldwin 6301 entry/apartment mortise lock body uses a 2-1/2 inch backset, while the Schlage PM056 is built for a 2-3/4 inch backset only, so the door mortise and strike location differ. The Baldwin 6301 is offered as knob by knob and the 6301LS as lever by lever, and it is listed for doors 1-3/4 inch and over. The PM056 is a lever lockset with field reversible handing.
9) Do I have to specify handing when ordering a Schlage PM056 mortise lock?
No. The PM Series mortise case is field reversible, so one lock covers left and right hand openings and you can flip it on site. That is useful for a property manager holding spares, since a single lock body covers every door in the building regardless of swing.
10) Will the Schlage PM056 in Broadway lever match the rest of my building's hardware?
The Broadway lever is one of 10 zinc lever designs in the PM Series, and the PM mortise locks share lever and rose styles with the Schlage PT Series tubular locks. So you can run Broadway trim on mortise openings and tubular openings and get the same look. Finishes are 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome and 643E aged bronze.
11) Is the Schlage PM056 a Grade 1 lock and is the thumbturn ADA friendly?
Grade 1, and it carries the ANSI/BHMA F01 function designation. The thumbturn style is ADA qualified, and the trim is lever rather than knob, which is what an accessible opening calls for. It is a commercial lock, not a residential one.
12) What other Grade 1 entrance/office mortise locks could I use instead of the Schlage PM056?
The closest cross-brand equivalent we carry is the Cal-Royal NM8050 heavy duty Grade 1 office/entrance mortise lockset with auxiliary deadlatch, listed for 1-3/4 inch doors. Hager's 3850E is a Grade 1 office mortise lock with lever and escutcheon on a 2-3/4 inch backset, non-keyed, and it covers 1-3/4 to 2-1/2 inch doors. If you need storeroom function instead of office, the Accentra 8805FL and the Cal-Royal NM8080 are the Grade 1 storeroom options.
13) I just need a non-locking mortise latch for a corridor or closet door. Is the PM056 the wrong part?
Yes, it is more lock than you need. The PM056 is a keyed entrance/office function with a cylinder and thumbturn. For a plain passage opening where the latch just retracts from either lever at all times, look at the Falcon MA101, a Grade 1 heavy duty mortise passage lock with field reversible operation, or the Hager 3810S with rose trim and 2-3/4 inch backset. In behavioral health or detention-adjacent work, the TownSteel MRX-L-01 is a Grade 1 anti-ligature lever passage mortise lockset.
14) Can I use the PM056 on a classroom door, or is there a better function?
A classroom opening is usually specified as classroom function rather than entrance/office. The Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset from the ML2000 Series for 1-3/4 inch doors, and the Cal-Royal NM8070 is a Grade 1 classroom mortise lockset with auxiliary deadlatch, also for 1-3/4 inch doors. The Schlage PM056 is the entrance/office function with automatic unlocking, meaning closing the door unlocks the outside lever.
15) We want keypad access on this office door instead of a key. What mortise lock should I look at?
For keyed-entry replaced by a code, the BEST 45HZ EZ Series is an electronic keypad mortise lock with key override, and the Dormakaba E-Plex 2066 Series is an electronic pushbutton keyless mortise lock. The Alarm Lock DL3500CR is a Grade 1 electronic mortise lock with 300 user codes in classroom function for doors 1-5/8 to 1-7/8 inch. The Schlage PM056 is a mechanical lock with no electronic components.
16) What is the difference between ordering the PM056 and ordering a bare mortise lock body like the BEST 45H?
The BEST 45H Series is sold as a heavy duty mortise lock body in public entrance function with field reversible operation, and the 45HCA Series is a lock body in intruder function; a lock body is the case only, so trim is specified separately. The Schlage PM056 is configured complete with the Broadway lever and a choice of A, C or D rose or N escutcheon, in finishes including 613 oil rubbed bronze, 626 satin chrome and 622 matte black.
17) The opening is a behavioral health or ligature-resistant room. Should I still specify the PM056?
For ligature-resistant openings, the TownSteel MRX-L-01 is a Grade 1 heavy duty stainless steel anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, and the MRX-A-01 is the same passage function with arch trim. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant. The Schlage PM056 uses a Broadway lever with zinc lever designs and brass roses, styling intended for commercial, retail, multifamily and hospitality openings.
18) I need privacy function for a restroom, not entrance/office. What mortise lock covers that?
The Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for doors 1-3/4 to 2 inch, and the Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors. The Schlage PM056 is the entrance/office function, where the outside lever can be locked by key or thumbturn but closing the door unlocks it again, which is the opposite of what a restroom needs.
19) Does the Sargent 4874 mortise deadbolt do the same job as the PM056?
No. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset, so it provides bolt security only with no lever and no latch operation. The Schlage PM056 is a lever mortise lockset with a latchbolt and deadlocking auxiliary latch, retracted by the lever from either side, and the inside lever is always free for immediate egress. The two are often specified together on an opening rather than in place of each other.
20) We are standardizing a dormitory corridor. Is the PM056 the right pick or is there a dedicated function?
The Sargent 7925 is a Grade 1 heavy duty corridor/dormitory exit function mortise lock from the 7900 Series with rose trim and a single cylinder deadbolt. The Schlage PM056 is the entrance/office function with a standard cylinder and inside thumbturn, and it is built for commercial real estate, retail, multifamily and hospitality use with 2-3/4 inch backset and an ANSI curved lip strike with dust box.
21) Is there an electronic or keypad version if I want to stop rekeying an office door?
The PM056 is a mechanical lock with no electronic option. If you want credentials instead of keys on the same opening, ZenSupply carries the Schlage CO-100 standalone electronic mortise lock with keypad reader, Grade 1 for 1-3/4 inch doors, and the Schlage Electronics LEMD-GRW, a Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader. Alarm Lock's Trilogy DL3500CR is a Grade 1 keypad mortise lock for 1-5/8 to 1-7/8 inch doors.
22) How much room do I need between the lever and the cylinder when laying out the door prep for a PM056?
Spacing on the PM case is 3-7/8 inches from lever to cylinder and 2-11/16 inches from lever to thumbturn hub. The case itself is cold rolled steel with corrosion resistant zinc dichromate plating, 4-7/16 by 6-1/16 by 1 inch. Work off the PM Series template when you cut the pocket and face prep.
