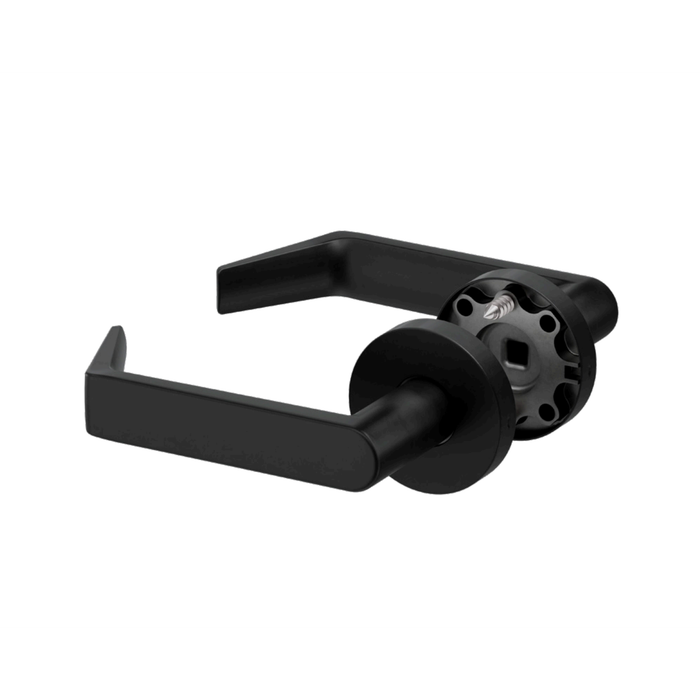

Schlage PT172 Grade 2 Double Dummy Latch Tubular Lock, Non-Keyed

Schlage PT172 Grade 2 Double Dummy Latch Tubular Lock, Non-Keyed

(No reviews yet) Write a Review

Model: PT172 ATHA 626
$170.00
$102.14
Selected Finish is
Selected Lever Style is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$170.00
$102.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Overview

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PT Series offers four functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, simplified installation, and its durable design, you can ensure your doors meet needs for reliability, simplicity, and style. You can use PT Series as part of a common aesthetic. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PT Series with PM Series mortise locks, as they share lever and rose styles.



PT172 - Double Dummy Trim

  • Fixed levers-both sides; no latch or chassis
  • Used for door pull or matching inactive trim

Chassis

  • Material Zinc and steel
  • Door thickness Standard: 1-3⁄8" (35 mm) to 1-3⁄4" (44 mm) Optional: 1-3⁄4" (44 mm) to 2" (51 mm)
  • Spring cage is self-adjustable for accommodating door ranges
  • Backset PT10: Adjustable latch comes standard, fits 2-3/8" (60 mm) to 2-3/4" (70 mm) backsets
  • PT40: Non-adjustable latch provided fits 2-3/4" (70 mm) standard or 2-3/8" (60 mm) optional
  • Door prep C and D large roses fit 2-1/8" (54 mm) bore and ANSI/SDI A250.14 door prep. A small rose fits 1-7/8" (48") cross bore prep



Trim Options

  • Handing Field-reversible handing
  • Levers Pressure cast zinc, plated to match product finish specification in 10 designs - Athens (ATH), Broadway (BRW), Latitude (LAT), Longitude (LON), Neptune (NEP), Playa (PLA), Rhodes (RHO), Selena (SEL), Tubular (TLR) and Two (TWO/02)
  • Rose Three roses: A, C, D designs; stamped brass plated to match product finish specification
  • Finishes Six available: 613, 619, 622, 625, 626, 643e



Latches, Armors, Strikes

  • Latch bolt Stainless steel latchbolt with 1/2" (13 mm) throw. Privacy latch restoring to prevent accidental lock outs.
  • Standard: 1-1/8" x 2-1/4" (29 mm x 57 mm) with square corner faceplate
  • Optional: 1" x 2-1⁄4"(25 mm x 57 mm) with square corner faceplate
  • Strike Standard: Square Corner T-Strike with dust box 1-1/8" x 2-3/4" (29 mm x 70 mm) with 1-1/8" (29 mm) lip length
  • Optional: Round Corner T-Strike with dust box 1-1/8" x 2-3/4" (29 mm x 70 mm) and Square or Round Corner Full Lip
  • Strike 1-5/8" x 2-1/4" (41 mm x 57 mm). 1-1/2" (38 mm) extended lip options available.



Certifications

  • ANSI/BHMA ANSI/BHMA A156.2, Series 4000, Grade 2 tubular lock; ANSI/BHMA A156.39 Grade AAA in Security, Durability, and Finish
  • ICC Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
  • UL/cUL UL 10C and CAN/ULC-S104; Passage PT10 and Privacy PT40 locks: 3-hour A label single fire door 4'0" x 8'0"
  • California State
  • Reference Code
  • All levers with a return to door of 1⁄2" (13 mm) or less comply (Longitude, Neptune, Rhodes and Tubular)



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical resources

Manufacturer Resources

Product Specs

Subcategory:
Tubular Locks
Product Group:
Mechanical Locks
Series:
PT Series
Function Description:
Lever with emergency release privacy-pin access in rose outside; lever with push button in rose inside; springlatch
Grade:
Grade 2
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Strike:
1-1/8" x 2-1/4" (29 mm x 57 mm) with square corner faceplate
Warranty:
5 Year Limited
Keyed:
No
Product Subgroup:
Tubular Locks and Trim
Product Type:
Tubular Locks
Commercial/Residential:
Commercial
Lock Type:
Tubular
Lock Function:
Double Dummy
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PT172
Product Function:
Double Dummy
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage PT172 ATHA 626 – Frequently Asked Questions

1) Is the Schlage PT172 dummy trim rated for a fire door?
The UL 10C and CAN/ULC-S104 fire rating on the PT Series is stated for the Passage PT10 and Privacy PT40 locks, 3-hour A label single fire door 4'0" x 8'0". That rating is tied to those latching functions, not the dummy trim. Where a fire label depends on the hardware, spec the PT10 or PT40 on the active leaf.
2) What bore prep does the Schlage PT Series lever need in the door?
It depends on which rose you order. The C and D large roses fit a 2-1/8 inch (54 mm) bore and the ANSI/SDI A250.14 door prep. The A small rose fits a 1-7/8 inch (48 mm) cross bore prep. If you're mounting on doors already bored 2-1/8, order the C or D rose.
3) Can I match Schlage PT172 dummy levers to the working locks on my other doors?
That's what the series is built for. PT Series shares lever and rose styles with Schlage PM Series mortise locks, so a mortise opening and a dummy leaf can carry the same lever design and finish. It's also made to suite with other Allegion products for a consistent look across a building. Pick the same lever design and finish code across both and the openings match.
4) Which Schlage PT Series levers meet accessibility requirements for lever return?
Longitude, Neptune, Rhodes and Tubular all have a return to door of 1/2 inch (13 mm) or less. The PT Series complies with ICC A117.1 Accessible and Usable Buildings and Facilities. If a lever return spec is on your drawing, those four are the designs that satisfy it.
5) What is the closest substitute for a Schlage PT172 double dummy if the opening actually needs a latching passage lock?
The PT172 is a double dummy - fixed levers on both sides with no latch or chassis, used as a door pull or as matching inactive trim, so it never latches. If the door has to latch and hold closed, the substitute is a passage lockset: the Corbin Russwin TL3710 is a Grade 1 tubular lockset in passage function, and the Corbin Russwin HP3010 is a Grade 1 tubular lock in passage/hall/closet function with HPSK paddle trim. Both operate a latch from either side without locking; the PT172 does not.
6) For a door that needs push-pull operation with a full hand or a cart, is the PT172 or the Corbin Russwin HP3010 the right trim?
The PT172 uses a lever handle, offered in Athens, Broadway, Latitude, Longitude, Neptune, Playa, Rhodes, Selena, Tubular and Two designs, and it is dummy trim only. The Corbin Russwin HP3010 carries HPSK paddle trim on a passage-function tubular lock, so the door is operated by pressing a paddle and the latch retracts. Where a loaded hand or a cart has to move the door and the latch must retract, the HP3010 paddle trim is the operating trim; the PT172 is a fixed pull.
7) Can a Corbin Russwin TL3710 be used as inactive-leaf trim on a pair of doors instead of a Schlage PT172?
They are not interchangeable in that role. The Schlage PT172 is non-keyed double dummy trim with fixed levers on both sides and no latch or chassis, which is what an inactive leaf takes when it should not latch. The Corbin Russwin TL3710 is a passage-function tubular lockset, so it carries a working latch. Specify the PT172 for the inactive leaf and a latching lockset such as the TL3710 for the active leaf.
8) Do I need to specify handing when ordering Schlage PT172 dummy trim?
No. Handing on the PT Series is field reversible, so one part covers left and right hand openings and you set it at install. That matters most on a fleet order where you don't want to count hands across a building.
9) What ANSI grade is the Schlage PT Series tubular lock?
Grade 2 under ANSI/BHMA A156.2, Series 4000 tubular lock, and Grade AAA under ANSI/BHMA A156.39 in Security, Durability and Finish. That's the commercial tier Schlage puts against multifamily, retail, hospitality and commercial real estate openings rather than heavy institutional traffic.
10) I need a Grade 1 tubular lockset instead of Grade 2 - what are my options?
The PT Series is Grade 2. For Grade 1 tubular, ZenSupply carries the Corbin Russwin TL3710 in the TL3700 Series, passage function, and the Corbin Russwin HP3010 in the HP3000 Series, passage function with HPSK paddle trim, rated for 1-3/4 inch doors. Both are latching passage functions, not dummy trim, so they cover the active leaf rather than the inactive one the PT172 is meant for.
11) Does the Schlage PT172 come keyed or accept a cylinder?
It's non-keyed and there's no cylinder. Double dummy trim has no chassis and no locking function at all, so there's nothing to key. If you need a keyed opening in the same lever and finish, that has to be a keyed function on the active leaf.
12) Do I need to order a strike or latch with Schlage PT172 dummy trim?
No strike and no latch. The double dummy has no latch or chassis, so nothing engages the frame and there's nothing to prep on the strike side. Latch and strike hardware belongs with the latching functions in the series, where the standard is a 1-1/8 x 2-1/4 inch (29 mm x 57 mm) square corner faceplate latch with a stainless steel latchbolt at 1/2 inch (13 mm) throw and a square corner T-strike with dust box.
13) What backset do Schlage PT Series latching locks use, and does it matter for the dummy trim?
For the dummy trim, backset is irrelevant, there's no latch to run into the door edge. On the latching functions in the series, the PT10 ships an adjustable latch covering 2-3/8 inch (60 mm) to 2-3/4 inch (70 mm) backsets, and the PT40 uses a non-adjustable latch at 2-3/4 inch (70 mm) standard or 2-3/8 inch (60 mm) optional. Those are the two usual commercial backsets, so existing prep is normally covered.
14) Is a Schlage PT172 Grade 2 tubular lock the same duty rating as a Corbin Russwin TL3710?
No. The PT172 is Grade 2, while the Corbin Russwin TL3710 tubular lockset and the Corbin Russwin HP3010 tubular lock are both Grade 1. For a facility standardizing on Grade 1 openings, the TL3710 and HP3010 meet that line; the PT172 answers a Grade 2 specification.
15) Will a Corbin Russwin HP3010 fit the same door thickness as a Schlage PT172?
Both are listed for 1-3/4 inch doors. The PT172 door thickness range is 1-3/4 inch and the Corbin Russwin HP3010 door thickness range is also 1-3/4 inch, so a standard commercial door leaf suits either. The difference is function, not door prep thickness: the PT172 is double dummy trim and the HP3010 is a passage/hall/closet lock.
16) What lever styles and finishes does the Schlage PT172 come in?
Ten lever designs: Athens (ATH), Broadway (BRW), Latitude (LAT), Longitude (LON), Neptune (NEP), Playa (PLA), Rhodes (RHO), Selena (SEL), Tubular (TLR) and Two (TWO). Six finishes: 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome and 643e aged bronze. Levers are pressure cast zinc plated to the finish; roses are stamped brass plated to match. Three rose designs, A, C and D.
17) What is the Schlage PT172 made of?
Chassis material on the PT Series is zinc and steel. Levers are pressure cast zinc plated to the ordered finish, and roses are stamped brass plated to match. The spring cage self-adjusts to accommodate the door thickness range.
18) Which lock lines can be matched across a building alongside the Schlage PT172?
The PT172 is part of the Schlage PT Series and shares lever and rose styles with the Schlage PM Series mortise locks, so a building can carry one lever look across dummy trim and mortise openings. Roses come in A, C and D designs and finishes in 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome and 643E aged bronze. The Corbin Russwin alternatives sit in different lines - the TL3710 in the TL3700 Series and the HP3010 in the HP3000 Series - so their trim is matched within those families rather than to PT Series levers.
