Schneider EXN T3 High-Capacity Fusible Switch Series – 15A to 225A

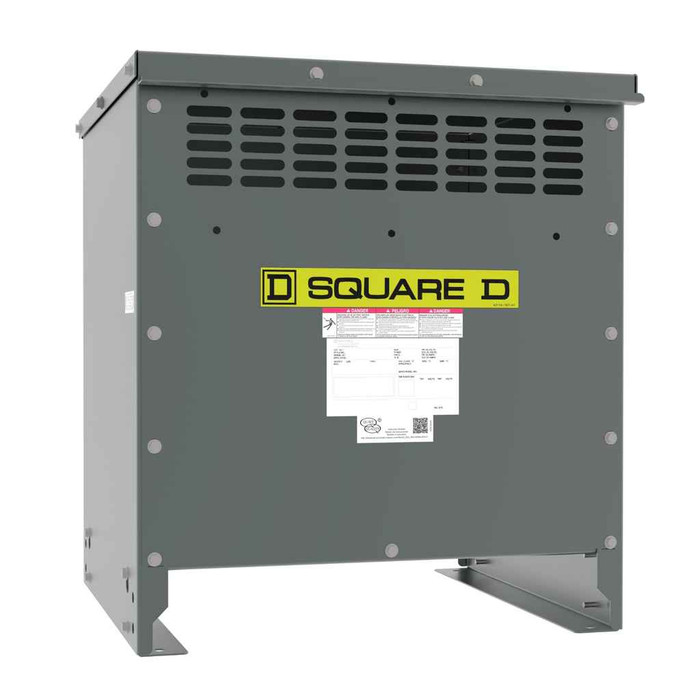

Schneider Electric EXN T3 High-Capacity Energy Efficient Dry Transformer 480V Delta to 208Y/120V 3-Phase

(No reviews yet) Write a Review

Model: EXN45T3HCU

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10,419.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric EXN T3 High-Capacity Energy Efficient Dry Transformer

Professional 3-Phase Power Distribution & Voltage Transformation

The Schneider Electric EXN T3 High-Capacity Energy Efficient Dry Transformer delivers reliable 3-phase power distribution for low voltage electrical applications. This copper-constructed transformer provides efficient voltage transformation from 480V delta primary to 208Y/120V secondary with natural convection cooling and 25-year average life duration for dependable long-term service.

Professional Features & Benefits

  • Energy Efficient Design: Advanced transformer technology reduces operating costs and environmental impact while maintaining reliable performance.
  • 3-Phase 480V Delta to 208Y/120V: Provides versatile voltage transformation for commercial and industrial power distribution requirements.
  • Natural Convection Cooling: Eliminates the need for forced air systems, reducing maintenance requirements and operating noise.
  • Copper Construction: Superior conductivity and corrosion resistance ensure optimal electrical performance and extended service life.
  • 25-Year Average Life Duration: Long-term reliability reduces replacement costs and minimizes system downtime.
  • 10kV Impulse Withstand Voltage: Enhanced protection against electrical surges and transient voltage conditions.
  • Green Premium Product Status: Meets environmental compliance standards including RoHS and REACH directives for sustainable operation.

Technical Specifications

  • Ambient Air Temperature For Operation: 40-40 °C
  • Average Ambient Air Temperature For Operation: 30 °C
  • Average Life Duration: 25 year(s)
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Country Of Origin: Mexico
  • Device Application: low voltage electrical distribution
  • Device Short Name: DOE 2016
  • Device Type: Transformer - dry
  • Environmental Disclosure: ENVPEP1604027_V2
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Field Service Division: PSIBS
  • Green Premium Status For Reporting: Green Premium product
  • Legacy Weee Scope: In
  • Mercury Free: Yes
  • Network Frequency: 60 Hz
  • Packaging Made With Recycled Cardboard: Yes
  • Packaging Without Single Use Plastic: Yes
  • Phase: 3 phase
  • Primary Voltage: 480 V delta
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Material: copper
  • Product Or Component Type: transformer
  • Range Of Product: Square D
  • Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2014
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: At least in Europe
  • Secondary Voltage: 208Y/120 V
  • Serviceability: No
  • Sustainable Packaging: Yes
  • Take Back: No
  • Toxic Heavy Metal Free: Yes
  • Traceability: Yes
  • Transformer Type: energy efficient
  • Type Of Cooling: natural convection
  • Uimp Rated Impulse Withstand Voltage: 10 kV
  • With Recycled Cardboard: Yes
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Commercial Building Power Distribution
  • Industrial Facility Voltage Transformation
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Shopping Centers
  • Light Industrial Manufacturing
  • Educational and Healthcare Facilities

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability with 25-year average life duration and comprehensive environmental compliance including RoHS and REACH directives. The copper construction and energy efficient design ensure optimal performance while the Green Premium product status demonstrates commitment to sustainable electrical solutions.

Manufacturer Resources

Product Specs

Ambient Air Temperature For Operation:
40-40 °C
Average Ambient Air Temperature For Operation:
30 °C
Average Life Duration:
25 year(s)
China Rohs In Scope:
No
China Rohs Label:
1
Country Of Origin:
Mexico
Device Application:
low voltage electrical distribution
Device Short Name:
DOE 2016
Device Type:
Transformer - dry
Environmental Disclosure:
ENVPEP1604027_V2
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Field Service Division:
PSIBS
Green Premium Status For Reporting:
Green Premium product
Legacy Weee Scope:
In
Mercury Free:
Yes
Network Frequency:
60 Hz
Packaging Made With Recycled Cardboard:
Yes
Packaging Without Single Use Plastic:
Yes
Phase:
3 phase
Primary Voltage:
480 V delta
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Material:
copper
Product Or Component Type:
transformer
Range Of Product:
Square D
Reach Free Of Svhc:
Yes
Reach Full Compliance Status:
Free of Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2014
Rohs Exemption Information:
Yes
Secondary Voltage:
208Y/120 V
Serviceability:
No
Sustainable Packaging:
Yes
Take Back:
No
Toxic Heavy Metal Free:
Yes
Traceability:
Yes
Transformer Type:
energy efficient
Type Of Cooling:
natural convection
Uimp Rated Impulse Withstand Voltage:
10 kV
With Recycled Cardboard:
Yes
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
transformer
Product Group:
Transformers

Schneider EXN45T3HCU – Frequently Asked Questions

1) Will the Schneider EXN T3 transformer give me 120V single-phase circuits off a 480V service?
Yes. The EXN T3 takes a 480V delta primary and puts out 208Y/120V, so you get 208V three-phase between phases and 120V line-to-neutral for receptacle and lighting branch circuits. It is a 3-phase dry-type unit built for low voltage distribution at 60 Hz.
2) What kVA sizes does the Schneider EXN T3 high-capacity transformer come in?
Two sizes: 45 kVA (EXN45T3HCU) and 75 kVA (EXN75T3HCU). Both are the same 480V delta to 208Y/120V copper-wound dry transformer, so pick by connected load, not by any difference in voltage or configuration.
3) Does this Schneider transformer meet DOE 2016 efficiency requirements?
It is identified as a DOE 2016 energy efficient dry transformer, which is the federal efficiency standard applied to distribution transformers in new commercial work. If your project spec or utility rebate program calls out DOE 2016, this line is the one to pull.
4) Does this transformer need forced-air cooling or clearance for fans?
No fans. Cooling is natural convection, so there is no blower to power, maintain, or fail, and no forced-air noise. Plan the install for free air movement around the enclosure and keep it out of a sealed closet with no ventilation.
5) Is the Schneider EXN T3 a copper-wound transformer or aluminum?
Copper. That matters on a retrofit where the spec or the drawing calls for copper windings and an aluminum-wound unit would get rejected at inspection or submittal review.
6) What ambient temperature can the EXN T3 transformer be installed in?
It is rated for operation at 40 degrees C ambient with a 30 degree C average ambient. A mechanical room or electrical room that runs hot through the day is fine as long as the average stays around 30 C and peaks do not exceed 40 C.
7) Is this the same as a Square D transformer?
Yes, the EXN T3 is part of the Square D range under Schneider Electric. If your existing gear, panel schedules, or facility standard is Square D, this fits that same family. Units are made in Mexico and carry full traceability.
8) Does the EXN T3 dry transformer meet RoHS and REACH for a green building submittal?
It carries Schneider's Green Premium status, is EU RoHS compliant, and is free of REACH Substances of Very High Concern above threshold. It is also mercury free and free of toxic heavy metals, and the environmental product declaration reference is ENVPEP1604027_V2 for LEED or sustainability documentation. Packaging is recycled cardboard with no single-use plastic.
9) Will this transformer work on a 50 Hz system?
No. The EXN T3 is specified at 60 Hz, which is North American utility frequency. For a 50 Hz export or international project you need a transformer rated for that frequency.
10) Can the EXN T3 handle surges on the 480V side?
The rated impulse withstand voltage is 10 kV, which covers transient and switching surges typical of a 480V feeder. It is not a substitute for a surge protective device on sensitive downstream loads, but the windings themselves are rated to 10 kV impulse.
11) Are the windings on this Schneider dry transformer field serviceable?
No. The EXN T3 is listed as non-serviceable, so treat it as a replace-not-repair unit. For a facility standardizing on these, that argues for planning around the 25-year average life duration rather than budgeting for winding repair.
