Schneider Electric Homeline 200A Meter Main CSED with Ringless Socket - 8 Space 16 Circuit Surface Mount

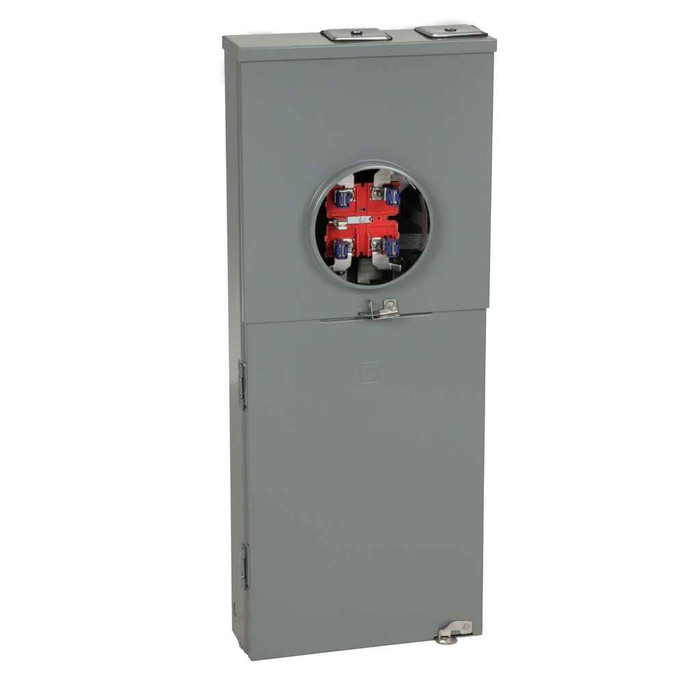

Schneider Electric Homeline 200A Meter Main CSED with Ringless Socket

Professional Combination Service Entrance Device for Residential Applications

The Schneider Electric Homeline 200A Meter Main CSED combines metering and distribution in a single surface-mount enclosure, providing reliable electrical service entrance for residential installations. This combination service entrance device features a ringless socket design with 200A service disconnect capability and accommodates up to 8 spaces for 16 circuits with tandem breaker compatibility.

Professional Features & Benefits

• 200A Service Rating: Provides robust electrical capacity for modern residential power demands with reliable service disconnect functionality.
• Ringless Socket Design: Simplifies meter installation and maintenance with secure, code-compliant utility metering connection.
• 8 Space/16 Circuit Configuration: Maximizes circuit capacity in compact footprint with tandem breaker compatibility for flexible load distribution.
• 22 kA Short Circuit Rating: Delivers enhanced safety protection with high fault current interruption capability for demanding applications.
• Surface Mount Installation: Enables versatile mounting options with accessible design for service and maintenance requirements.
• Homeline Series Integration: Ensures seamless compatibility with Schneider Electric Homeline circuit breakers and accessories.

Technical Specifications

• Branch Circuit Breaker Rated Current: 200 A
• Bus Rated Current: 200.0 A
• China Rohs In Scope: No
• Country Of Origin: Mexico
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2509019
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Meter enclosures
• H And D Enrichment Class 4: Combination service entrance device
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: RESI
• Hub Type: A
• Legacy Weee Scope: In
• Line Rated Current: 200 A
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Meter Socket Type: ringless
• Network Number Of Phases: 1
• Number Of Circuits: 16
• Number Of Spaces: 8
• Number Of Tandem Circuit Breakers: 8
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 5.07 in
• Product Height: 35.13 in
• Product Or Component Type: Meter Mains
• Product Width: 14.37 in
• Range Of Product: Homeline
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2534
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Service Disconnect Rated Current: 200 A
• Short Circuit Current: 22 kA
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 399 kg CO2 eq.
• Use Carbon Footprint: 316.61
• With Recycled Cardboard: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Applications
• Single-Family Home Electrical Service
• Duplex and Multi-Unit Residential Properties
• Residential Renovation and Upgrade Projects
• New Construction Residential Developments
• Mobile Home and Manufactured Housing

Why Choose Schneider Electric Quality?

Schneider Electric Homeline products deliver proven reliability with mercury-free construction and Green Premium environmental compliance. The surface-mount design with 22 kA short circuit rating ensures safe, durable performance for demanding residential electrical service applications.
