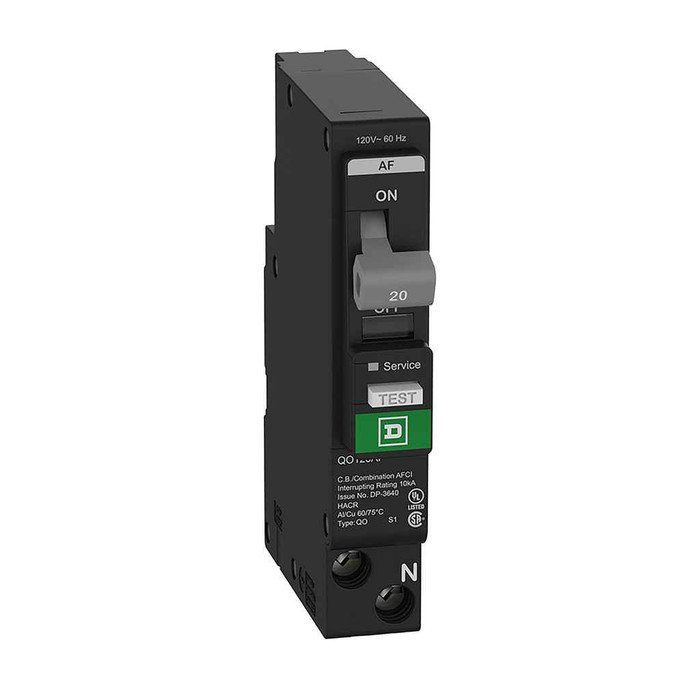

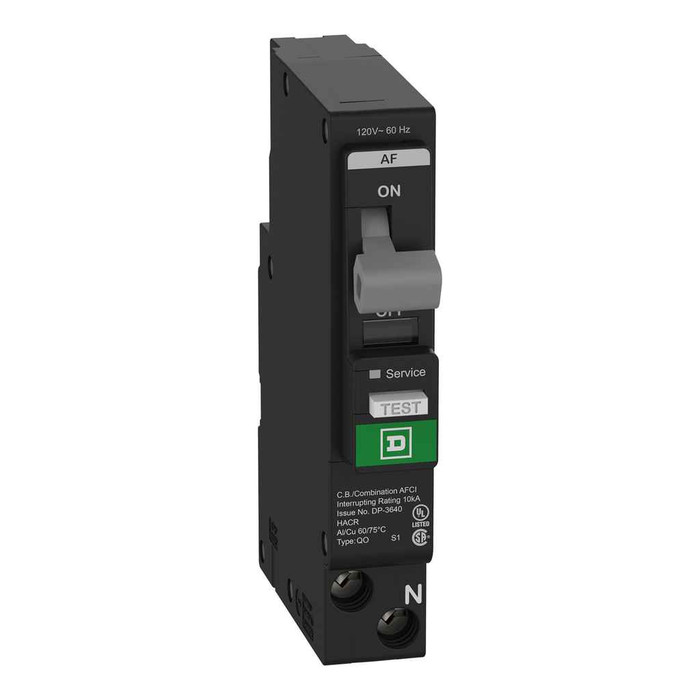

Schneider Electric QO 1-Pole Combination Arc-Fault Circuit Breaker with Plug-On Neutral Connection

Schneider Electric QO 1-Pole Combination Arc-Fault Circuit Breaker with Plug-On Neutral Connection

Advanced Arc-Fault Protection for Residential Applications

The Schneider Electric QO 1-Pole Combination Arc-Fault Circuit Breaker delivers reliable arc-fault protection for residential electrical systems. This HACR rated miniature circuit breaker features plug-on neutral connection technology and pressure plate electrical connections for secure installation. Designed for plug-in mounting in QO load centers, this UL Listed device provides comprehensive protection in a compact 0.75-inch width profile requiring only one panel space.

Professional Features & Benefits

• Combination Arc-Fault Protection: Detects and interrupts dangerous arc faults to prevent electrical fires and enhance safety
• HACR Rating: Certified for heating, air conditioning, and refrigeration applications providing versatile protection
• Plug-On Neutral Design: Simplifies installation with integrated neutral connection reducing wiring complexity
• UL Listed Certification: Meets rigorous safety standards ensuring reliable performance and code compliance
• Compact Single-Pole Design: Occupies only one panel space while delivering full protection capabilities
• Pressure Plate Connections: Provides secure electrical connections with proper tightening torque of 4-4 N.m
• 15-Year Average Life Duration: Engineered for long-term reliability reducing maintenance and replacement costs

Technical Specifications

• Accessories: QOADV1PAF
• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Circuit Breaker Type: combination ARC-fault
• Circularity Profile: ENVEOLI2212009
• Compliance: TAA
• Connections Terminals: plug-on neutral
• Country Of Origin: United States
• Device Type: LV equipment - Low voltage circuit breaker
• Distribution Carbon Footprint: 0.061945472
• Electrical Connection: pressure plate
• End Of Life Carbon Footprint: 0.066757776
• End Of Life Doc Ref: ENVEOLI2212009
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212009
• Eoli Availability Display: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: yes
• H And D Enrichment Class 3: Arc-fault protection devices
• H And D Subrange: RESI
• Installation Carbon Footprint: 0.001381446
• Legacy Weee Scope: In
• Manufacturing Carbon Footprint: 2.593684647
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: plug-in
• Number Of Spaces Required: 1
• Package Weight Lbs: 186 g
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: Yes
• Poles Description: 1P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Certifications: UL Listed
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 4.09 in
• Product Height: 2.72 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 0.75 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: Yes
• Take Back: No
• Tier: 1
• Tier Id: 1
• Tightening Torque: 4-4 N.m
• Traceability: No
• Wd Status: L - LOB initialized
• With Recycled Cardboard: Yes
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Panels
• Single-Family Homes
• Multi-Unit Residential Properties
• Apartment Buildings
• Condominiums
• HVAC System Protection
• Branch Circuit Protection

Why Choose Schneider Electric Quality?

Schneider Electric QO circuit breakers deliver proven reliability with UL Listed certification and 15-year average life duration. The Green Premium product status and sustainable packaging demonstrate environmental responsibility while maintaining the performance standards expected from professional electrical protection equipment.
