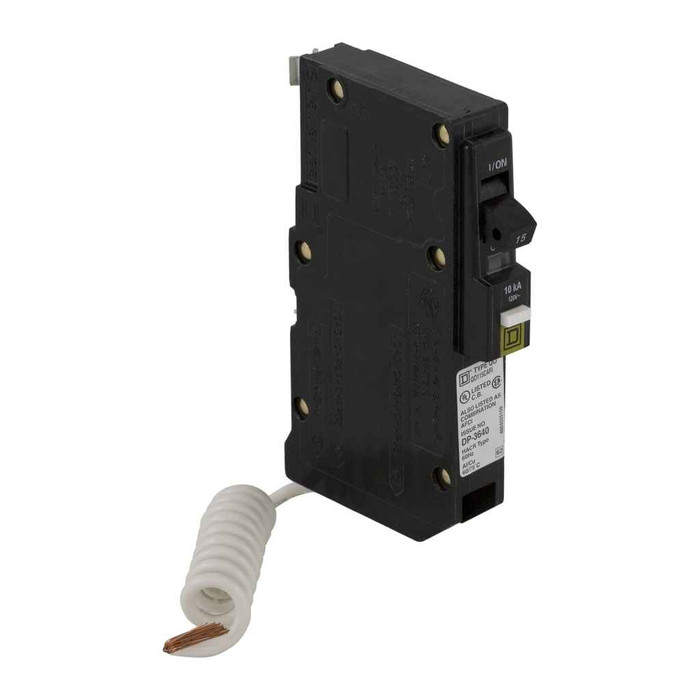

Schneider Electric QO 15A 1-Pole 120VAC Combination Arc-Fault Circuit Breaker with Plug-In Connection

Schneider Electric QO 15A 1-Pole 120VAC Combination Arc-Fault Circuit Breaker with Plug-In Connection

Professional Arc-Fault Protection for Residential Applications

The Schneider Electric QO combination arc-fault circuit breaker delivers reliable 15A protection with advanced arc-fault detection technology. This 1-pole, 120VAC miniature circuit breaker features plug-in mounting for easy installation and includes pigtail neutral connections for comprehensive arc-fault protection in residential electrical systems.

Professional Features & Benefits

• 15A Line Rated Current: Provides optimal circuit protection for standard residential branch circuits with reliable overcurrent protection.
• Combination Arc-Fault Technology: Advanced CAFI protection detects both series and parallel arc-faults for enhanced electrical safety.
• Plug-In Mounting: Quick and secure installation into QO load centers without additional hardware or complex wiring.
• HACR Rated Application: Certified for heating, air conditioning, and refrigeration equipment providing versatile protection options.
• Pigtail Neutral Connection: Integrated neutral connection ensures proper arc-fault detection and system grounding.
• 10kA Interrupting Capacity: Handles high fault currents safely while maintaining system integrity during electrical faults.
• 15 Year Average Life Duration: Long-term reliability reduces maintenance costs and ensures consistent protection over time.

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• Carbon Footprint: 39.41692465
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 39.41692465
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Circuit Breaker Type: combination ARC-fault
• Circularity Profile: ENVEOLI2212005
• Compliance: TAA
• Connections Terminals: pigtail neutral
• Country Of Origin: Mexico
• Device Type: LV equipment - Low voltage circuit breaker
• Distribution Carbon Footprint: 0.063531067
• Electrical Connection: pressure plate
• End Of Life Carbon Footprint: 0.051401759
• End Of Life Doc Ref: ENVEOLI2212005
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212005
• Eoli Availability Display: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: yes
• H And D Enrichment Class 3: Arc-fault protection devices
• H And D Enrichment Class 4: CAFI
• H And D Enrichment Function: AFCI
• H And D Subrange: RESI
• Installation Carbon Footprint: 0.001733597
• Legacy Weee Scope: In
• Line Rated Current: 15 A
• Manufacturing Carbon Footprint: 1.925258226
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: plug-in
• Number Of Spaces Required: 1
• Package Weight Lbs: 249.48 g
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: Yes
• Poles Description: 1P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.91 in
• Product Height: 4.76 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 0.75 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Tightening Torque: 4-4 N.m
• Total Lifecycle Carbon Footprint: 39 kg CO2 eq.
• Traceability: No
• Use Carbon Footprint: 37.375
• Wd Status: L - LOB initialized
• With Recycled Cardboard: No
• Without Single Use Plastic: Yes
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Branch Circuit Protection
• New Construction Electrical Systems
• Electrical Panel Upgrades
• HACR Equipment Protection
• Code Compliance Installations
• Arc-Fault Protection Requirements

Why Choose Schneider Electric Quality?

Schneider Electric QO circuit breakers deliver proven reliability with 15-year average life duration and comprehensive safety certifications. The Green Premium product status and TAA compliance ensure quality construction while mercury-free design supports environmental responsibility. Trust Schneider Electric's engineering excellence for critical electrical protection applications.
