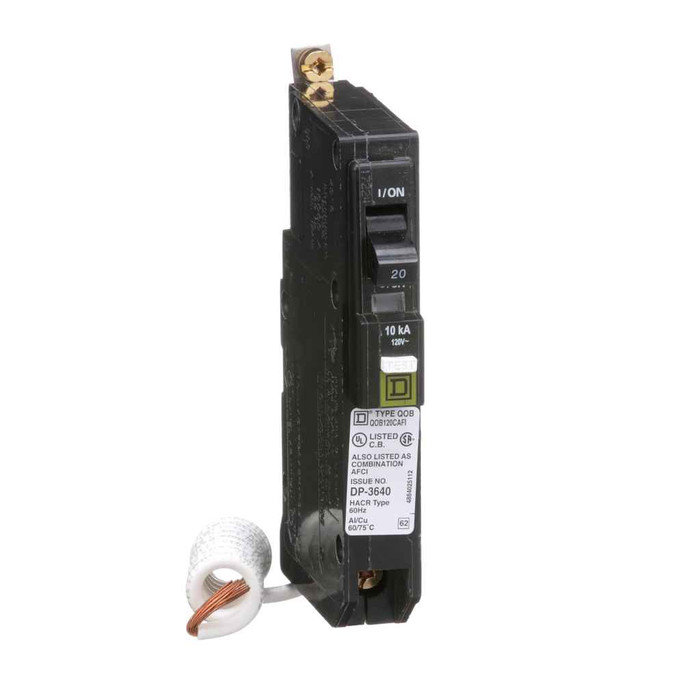

Schneider Electric QO 20A 1-Pole 120VAC Combination Arc-Fault Circuit Breaker with Bolt-On Mounting

Schneider Electric QO 20A 1-Pole 120VAC Combination Arc-Fault Circuit Breaker with Bolt-On Mounting

Professional Arc-Fault Protection for Residential Applications

The Schneider Electric QO series combination arc-fault circuit breaker delivers reliable 20A protection with advanced arc-fault detection technology. This 1-pole, 120VAC unit features bolt-on mounting for secure installation and includes pigtail neutral connections for comprehensive circuit protection. Designed for residential market applications with HACR rating and 10kA interrupting capacity.

Professional Features & Benefits

• 20A Line Rated Current: Provides optimal circuit protection for standard residential branch circuits with reliable overcurrent protection.
• Combination Arc-Fault Technology: Advanced CAFI protection detects both series and parallel arc faults to prevent electrical fires and enhance safety.
• Bolt-On Mounting: Secure mechanical connection ensures reliable installation and prevents accidental disconnection during service.
• HACR Rated: Certified for heating, air conditioning, and refrigeration applications providing versatile circuit protection options.
• Pigtail Neutral Connection: Integrated neutral connection simplifies installation and ensures proper arc-fault detection functionality.
• 10kA Interrupting Capacity: Robust fault interruption capability handles high fault currents in residential electrical systems.
• Single Space Design: Compact 0.75-inch width maximizes panel space utilization while providing full protection features.

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• Carbon Footprint: 39.45400144
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 39.45400144
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Circuit Breaker Type: combination ARC-fault
• Circularity Profile: ENVEOLI2212005
• Compliance: TAA
• Connections Terminals: pigtail neutral
• Country Of Origin: Mexico
• Device Type: LV equipment - Low voltage circuit breaker
• Distribution Carbon Footprint: 0.064684649
• Electrical Connection: pressure plate
• End Of Life Carbon Footprint: 0.0523351
• End Of Life Doc Ref: ENVEOLI2212005
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212005
• Eoli Availability Display: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Green Premium Status For Reporting: Green Premium product
• H And D Domain: Safety
• H And D Enrichment Assignment: yes
• H And D Enrichment Class 3: Arc-fault protection devices
• H And D Enrichment Class 4: CAFI
• H And D Enrichment Function: AFCI
• H And D Subrange: RESI
• Installation Carbon Footprint: 0.001765075
• Legacy Weee Scope: In
• Line Rated Current: 20 A
• Manufacturing Carbon Footprint: 1.960216618
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: bolt-on
• Number Of Spaces Required: 1
• Package Weight Lbs: 254.01 g
• Packaging Made With Recycled Cardboard: No
• Packaging Without Single Use Plastic: Yes
• Poles Description: 1P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.91 in
• Product Height: 4.76 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 0.75 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Tightening Torque: 4-4 N.m
• Total Lifecycle Carbon Footprint: 39 kg CO2 eq.
• Traceability: No
• Use Carbon Footprint: 37.375
• Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
• With Recycled Cardboard: No
• Without Single Use Plastic: Yes
• Department: Electrical
