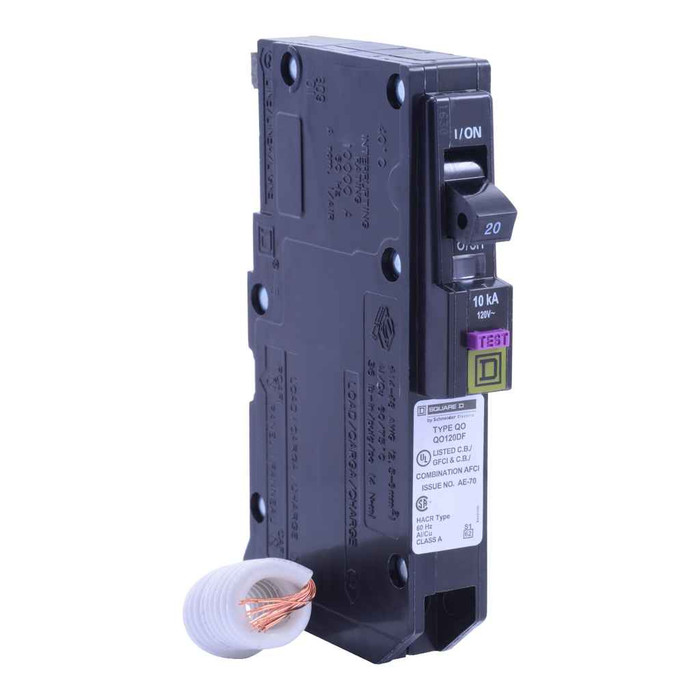

Schneider Electric QO 1-Pole 20A Dual Function Circuit Breaker with Pigtail Connection

Schneider Electric QO 1-Pole 20A Dual Function Circuit Breaker with Pigtail Connection

Advanced CAFI+GFCI Protection for Residential Applications

The Schneider Electric QO series dual function circuit breaker delivers comprehensive electrical protection combining arc-fault and ground fault interruption in a single 1-pole device. This 20A breaker features HACR rating for HVAC applications, 120 VAC operation with 10 kA interrupting capacity, and convenient pigtail neutral connection for streamlined installation in residential electrical panels.

Professional Features & Benefits

• 20A Current Rating: Provides reliable overcurrent protection for standard residential branch circuits and HVAC equipment.
• Dual Function Protection: Combines CAFI and GFCI technologies in one device, reducing panel space requirements while ensuring comprehensive safety.
• HACR Rated: Specifically designed and tested for heating, air conditioning, and refrigeration equipment applications.
• Pigtail Neutral Connection: Simplifies installation with pre-wired neutral connection, reducing wiring time and potential connection errors.
• Plug-in Mounting: Quick and secure installation into QO load centers with positive mechanical and electrical connection.
• Compact 0.75" Width: Single-space design maximizes panel capacity while providing full protection functionality.
• 15-Year Average Life Duration: Long-term reliability reduces maintenance costs and ensures consistent protection over extended service periods.

Technical Specifications

• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• Carbon Footprint: 40.91062428
• Carbon Footprint Kg Co2 Eq Total Life Cycle: 40.91062428
• China Rohs In Scope: No
• Circuit Breaker Application: HACR rated
• Circuit Breaker Type: combination ARC-fault and ground fault
• Circularity Profile: ENVEOLI2212005
• Compliance: TAA
• Connections Terminals: pigtail neutral
• Country Of Origin: Mexico
• Device Type: LV equipment - Low voltage circuit breaker
• Distribution Carbon Footprint: 0.069305345
• Electrical Connection: pressure plate
• End Of Life Carbon Footprint: 0.056073616
• End Of Life Doc Ref: ENVEOLI2212005
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2212005
• Eoli Availability Display: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• H And D Domain: Safety
• H And D Enrichment Assignment: yes
• H And D Enrichment Class 3: Combined electrical protection
• H And D Enrichment Class 4: CAFI+GFCI (Dual function)
• H And D Enrichment Function: DF
• H And D Subrange: RESI
• Html Descr: Mini circuit breaker, QO, 20A, 1 pole, 120 VAC, 10 kA, dual function, pigtail, plug in mount
• Installation Carbon Footprint: 0.001891162
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Manufacturing Carbon Footprint: 1.717354162
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: plug-in
• Number Of Spaces Required: 1
• Packaging Without Single Use Plastic: Yes
• Poles Description: 1P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 2.91 in
• Product Height: 4.76 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 0.75 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Tightening Torque: 4-4 N.m
• Total Lifecycle Carbon Footprint: 41 kg CO2 eq.
• Traceability: No
• Use Carbon Footprint: 39.066
• Wd Status: L - LOB initialized
• Without Single Use Plastic: Yes
• Department: Electrical
