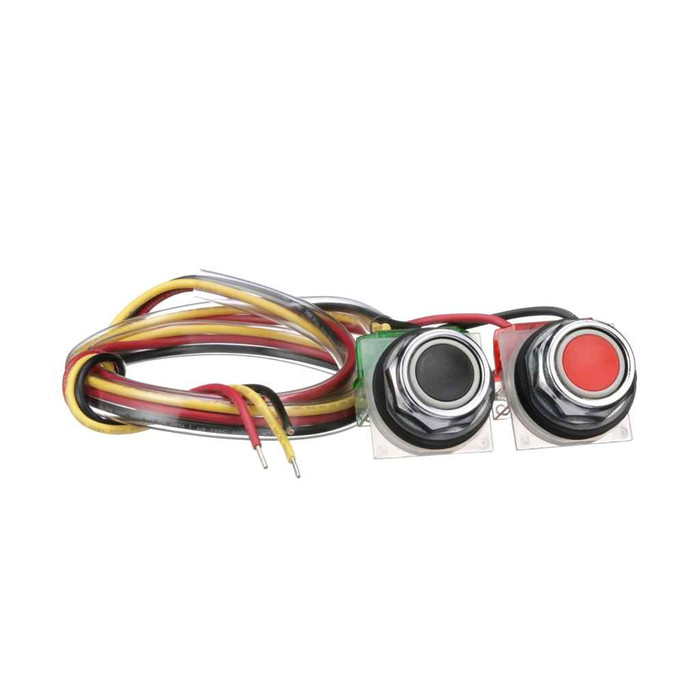

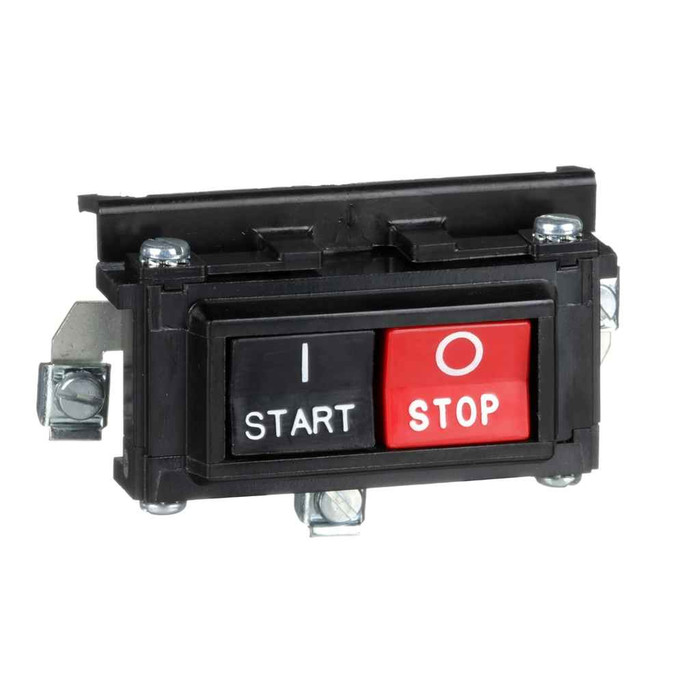

Schneider Electric Type S NEMA Motor Starter Push Button Kit with START-STOP Marking

Schneider Electric Type S NEMA Motor Starter Push Button Kit with START-STOP Marking

Professional Motor Control Interface Solution

The Schneider Electric Type S NEMA Motor Starter Push Button Kit provides reliable motor control functionality with clear START-STOP marking for professional applications. This panel-mounted push button kit features NEMA 1 protection rating and is designed for compatibility with Type S motor starters and contactors, delivering dependable operation in industrial and commercial motor control systems.

Professional Features & Benefits

• NEMA 1 Protection Rating: Provides reliable protection against dust and incidental contact for indoor applications.
• Panel-Mounted Design: Enables secure installation in control panels and enclosures for professional motor control systems.
• START-STOP Marking: Clear labeling ensures proper operation and reduces operator error in motor control applications.
• Type S Compatibility: Designed specifically for use with Type S motor starters and contactors for seamless system integration.
• Standard Function Option: Delivers reliable push button operation for conventional motor control requirements.
• Compact Dimensions: 2.58" width x 1.02" height x 23.98" depth provides flexible installation options in various panel configurations.

Technical Specifications

• China Rohs In Scope: No
• Country Of Origin: Mexico
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Under investigation
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• Legacy Weee Scope: In
• Manufacturer: Schneider Electric
• Marking: START-STOP
• Mounting Mode: panel-mounted
• Nema Degree Of Protection: NEMA 1
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 23.98 in
• Product Height: 1.02 in
• Product Or Component Type: push-button
• Product Width: 2.58 in
• Range Of Product: type S
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Full Compliance Status: Under investigation
• Rohs Eur Full Compliance Status Id: UNDER_INVESTIGATION
• Rohs Eur In Scope: Yes
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Traceability: No
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Systems
• Commercial HVAC Equipment
• Manufacturing Machinery
• Process Control Applications
• Pump and Fan Control
• Conveyor Systems
• Material Handling Equipment

Why Choose Schneider Electric Quality?

Schneider Electric delivers proven reliability in motor control solutions with NEMA 1 protection rating and panel-mounted design for professional installations. The Type S compatibility ensures seamless integration with existing motor starter systems, while the clear START-STOP marking provides operational confidence in critical motor control applications.
