Schneider Electric NQ Panelboard Interior L4 Series 400A Main Lugs Commercial Distribution System

Schneider Electric NQ Panelboard Interior L4 Series 400A Main Lugs Commercial Distribution System

Professional electrical distribution for commercial applications

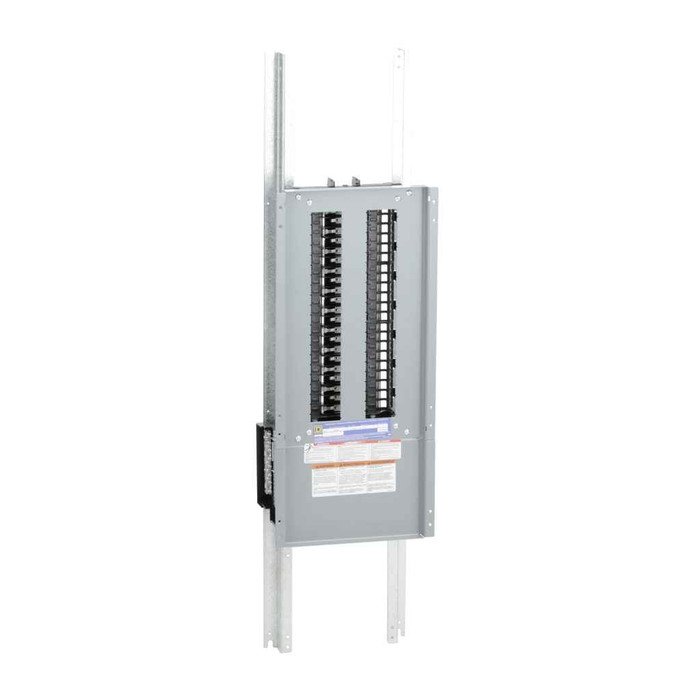

The Schneider Electric NQ Panelboard Interior L4 Series delivers reliable 400A main lugs electrical distribution designed for commercial installations. This copper construction panelboard interior accommodates 30 to 84 circuits in a compact 45 in height by 10.44 in width configuration, providing professional-grade power distribution with main lugs load center functionality for versatile commercial electrical systems.

Professional Features & Benefits

• 400A Line Rated Current: Provides substantial power capacity for demanding commercial electrical distribution requirements.
• Main Lugs Configuration: Offers flexible connection options for utility feeds and downstream distribution without requiring a main breaker.
• Copper Construction: Ensures excellent conductivity and long-term reliability for professional electrical installations.
• Compact Design: 45 in height and 10.44 in width maximizes circuit capacity while minimizing installation footprint.
• 30-84 Circuit Capacity: Accommodates extensive branch circuit requirements for comprehensive commercial power distribution.
• Commercial Market Segmentation: Engineered specifically for commercial applications with appropriate ratings and certifications.
• RoHS Compliant: Meets environmental compliance standards for responsible electrical equipment deployment.

Technical Specifications

• China Rohs In Scope: No
• China Rohs Label: 1
• Country Of Origin: Mexico
• Enclosure Nominal Height: 50 in
• Enclosure Nominal Width: 20 in
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP2303005
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant
• Function Option: Standard
• Function Option Id: STANDARD
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Panel components
• H And D Enrichment Class 4: Panelboard interior
• H And D Enrichment Function: ENCLOSURES
• H And D Subrange: COM
• Legacy Weee Scope: In
• Line Rated Current: 400 A
• Load Center Type: main lugs
• Market Segmentation: Commercial
• Market Segmentation Id: COMMERCIAL
• Mercury Free: Yes
• Packaging Made With Recycled Cardboard: Yes
• Packaging Without Single Use Plastic: No
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Height: 45 in
• Product Material: copper
• Product Or Component Type: interiors
• Product Width: 10.44 in
• Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc: Yes
• Reach Free Shvc: Yes
• Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2532
• Rohs Eur Full Compliance Status: Compliant
• Rohs Eur Full Compliance Status Id: COMPLIANT
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Toxic Heavy Metal Free: Yes
• Use Carbon Footprint: 44.70390249
• Wd Status: 5 - INITIALIZED WITH DataSCAN OK (Migration)
• With Recycled Cardboard: Yes
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Office Buildings
• Retail Establishments
• Light Industrial Facilities
• Multi-Tenant Properties
• Professional Services Buildings
• Educational Facilities
• Healthcare Facilities

Why Choose Schneider Electric Quality?

Schneider Electric NQ Panelboard Interiors deliver proven reliability with copper construction, RoHS compliance, and mercury-free design. The commercial market segmentation ensures appropriate engineering standards, while the compact design and substantial 400A capacity provide professional-grade electrical distribution for demanding applications.
