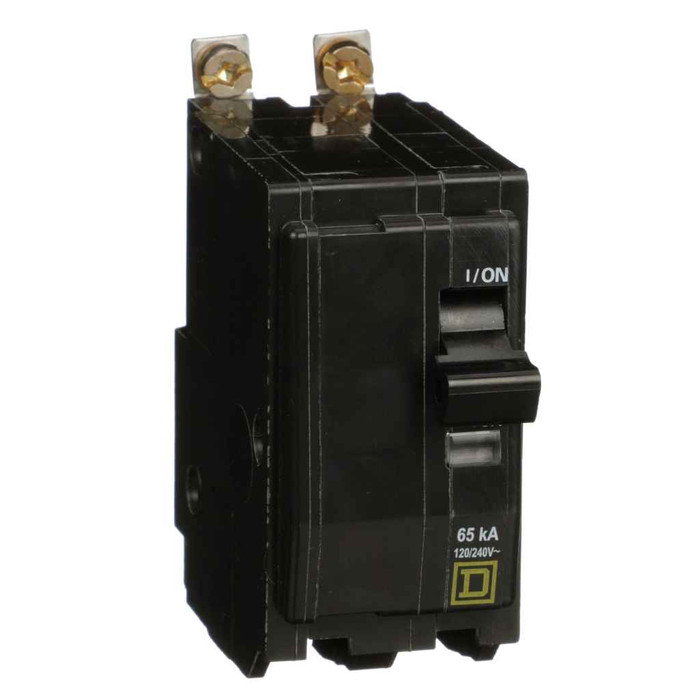

Schneider QHB 2-Pole HACR Circuit Breakers — 15A–30A

Schneider Electric QHB 2-Pole HACR Circuit Breaker 15A-30A Miniature Bolt-On System

(No reviews yet) Write a Review

Model: QHB230

In Stock (leaves warehouse same day if ordered before 3pm ET)

$448.09
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric QHB 2-Pole HACR Circuit Breaker 15A-30A Miniature Bolt-On System

Professional HACR-Rated Circuit Protection for Commercial Applications

Schneider Electric QHB 2-Pole HACR Circuit Breaker delivers reliable electrical protection with HACR rating specifically designed for heating, air conditioning, and refrigeration applications. This miniature circuit breaker features bolt-on mounting, pressure plate electrical connections, and compact 2-space design measuring 2.99" H x 1.5" W x 2.91" D for efficient panel installation in commercial environments.

Professional Features & Benefits

  • HACR Rating: Specifically designed and certified for heating, air conditioning, and refrigeration equipment protection, ensuring reliable motor load handling.
  • 2-Pole Configuration: Provides simultaneous protection for both conductors with 15A-30A current rating range for versatile commercial applications.
  • Bolt-On Mounting: Secure mechanical connection ensures reliable installation and reduces maintenance requirements in high-vibration environments.
  • Pressure Plate Connections: Professional-grade electrical connections provide consistent contact pressure and long-term reliability.
  • Compact Design: 2-space requirement with 1.5" width maximizes panel space utilization while maintaining full protection capabilities.
  • 15-Year Service Life: Extended operational lifespan reduces replacement frequency and total cost of ownership.
  • 40°C Operating Temperature: Reliable performance in elevated ambient temperatures common in commercial HVAC applications.

Technical Specifications

  • Ambient Air Temperature For Operation: 40 °C
  • Average Life Duration: 15 year(s)
  • China Rohs In Scope: No
  • China Rohs Label: 1
  • Circuit Breaker Application: HACR rated
  • Circuit Breaker Type: standard
  • Country Of Origin: Mexico
  • Device Type: LV equipment - Low voltage circuit breaker
  • Electrical Connection: pressure plate
  • Energy Efficiency Optimized: FALSE
  • Environmental Disclosure: ENVPEP2111016
  • Eoli Availability Display: No need of specific recycling operations
  • Eu Rohs Directive: Compliant
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Green Premium Status For Reporting: Green Premium product
  • H And D Domain: Safety
  • H And D Enrichment Assignment: no
  • H And D Enrichment Class 3: Circuit Breakers
  • H And D Enrichment Class 4: MCB UL 2P
  • H And D Enrichment Function: MCB
  • H And D Subrange: COM
  • Halogen Content Performance: Halogen free product
  • Halogen Free Status: Halogen free product
  • Halogene Performance: Halogen free product
  • Legacy Weee Scope: In
  • Market Segmentation: Commercial
  • Market Segmentation Id: COMMERCIAL
  • Mercury Free: Yes
  • Mounting Mode: bolt-on
  • Number Of Spaces Required: 2
  • Packaging Made With Recycled Cardboard: No
  • Packaging Without Single Use Plastic: Yes
  • Poles Description: 2P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 2.91 in
  • Product Height: 2.99 in
  • Product Or Component Type: miniature circuit-breaker
  • Product Width: 1.5 in
  • Range Of Product: QO
  • Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: CONTAINS_SVHC
  • Reach Regulation: Reference contains Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 2534
  • Rohs Eur Full Compliance Status: Compliant
  • Rohs Eur Full Compliance Status Id: COMPLIANT
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant
  • Rohs Exemption Information: Yes
  • Scope Perimeter: Outside of Europe
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Tier: 2
  • Tier Id: 2
  • Tightening Torque: 4.6-4.6 N.m
  • Toxic Heavy Metal Free: Yes
  • Traceability: No
  • Wd Status: 1 - GSC certified
  • With Recycled Cardboard: No
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Commercial HVAC Systems
  • Air Conditioning Equipment
  • Refrigeration Units
  • Heat Pump Systems
  • Commercial Kitchen Equipment
  • Industrial Cooling Systems
  • Building Climate Control

Why Choose Schneider Electric Quality?

Schneider Electric QHB circuit breakers deliver proven reliability with 15-year average service life, RoHS compliance, and halogen-free construction. Green Premium product status and mercury-free design demonstrate environmental responsibility while maintaining professional-grade performance standards for critical commercial applications.

Manufacturer Resources

Product Specs

Ambient Air Temperature For Operation:
40 °C
Average Life Duration:
15 year(s)
China Rohs In Scope:
No
China Rohs Label:
1
Circuit Breaker Application:
HACR rated
Circuit Breaker Type:
standard
Country Of Origin:
Mexico
Device Type:
LV equipment - Low voltage circuit breaker
Electrical Connection:
pressure plate
Energy Efficiency Optimized:
FALSE
Environmental Disclosure:
ENVPEP2111016
Eoli Availability Display:
No need of specific recycling operations
Eu Rohs Directive:
Compliant
Field Service Division:
PPIBS
Function Option:
Standard
Green Premium Status For Reporting:
Green Premium product
H And D Domain:
Safety
H And D Enrichment Assignment:
no
H And D Enrichment Class 3:
Circuit Breakers
H And D Enrichment Class 4:
MCB UL 2P
H And D Enrichment Function:
MCB
Halogen Content Performance:
Halogen free product
Legacy Weee Scope:
In
Market Segmentation:
Commercial
Mercury Free:
Yes
Mounting Mode:
bolt-on
Number Of Spaces Required:
2
Packaging Made With Recycled Cardboard:
No
Packaging Without Single Use Plastic:
Yes
Poles Description:
2P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
2.91 in
Product Height:
2.99 in
Product Or Component Type:
miniature circuit-breaker
Product Width:
1.5 in
Range Of Product:
QO
Reach Full Compliance Status:
Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
2534
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Tier:
2
Tightening Torque:
4.6-4.6 N.m
Toxic Heavy Metal Free:
Yes
Traceability:
No
Wd Status:
1 - GSC certified
With Recycled Cardboard:
No
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Miniature Circuit-Breaker
Product Group:
Circuit Breakers

Schneider QHB230 – Frequently Asked Questions

1) Will a Schneider QHB 2-pole breaker fit a QO load center?
The QHB is part of Schneider Electric's QO range and is a bolt-on breaker, not a plug-on. It bolts to the bus, so it needs a panel with bolt-on bus provisions (QOB-style interiors), not a standard plug-on QO load center. If the panel you are feeding takes plug-on breakers, the bolt-on QHB will not seat on that bus.
2) Is the Schneider QHB breaker rated for a rooftop air conditioning unit or heat pump?
Yes, it is HACR rated, meaning it is the type of breaker specified for heating, air conditioning and refrigeration equipment where the load is a motor-compressor rather than a straight resistive load. For a condensing unit or heat pump whose nameplate calls for a maximum HACR-type overcurrent device, the 2-pole QHB at 20 A or 30 A is the right family.
3) What amperages does the QHB 2-pole come in, and which one do I order?
Two orderable ratings: QHB220 at 20 A and QHB230 at 30 A. Pick from the equipment nameplate's maximum overcurrent protection figure, not from the wire size, on HVAC loads. Order by the MPN so you do not end up with a single-pole.
4) How much panel space does a 2-pole Schneider QHB breaker take up?
Two spaces. The QHB 2-pole measures 2.99 in high, 1.5 in wide, 2.91 in deep, so it occupies two single-pole slots in the panel. Budget the 2.91 in depth against your can and cover clearance when you are filling out an existing commercial panel schedule.
5) What torque do I tighten the lugs to on a Schneider QHB circuit breaker?
4.6 N.m on the terminals. The QHB uses pressure plate connections, so the conductor seats under a plate rather than a saddle screw, and hitting that torque figure with a calibrated driver is what keeps the connection from loosening. Re-torque after the first thermal cycle on a new commercial install.
6) Can I use a bolt-on breaker like the Schneider QHB in a high vibration mechanical room?
That is the main reason to choose bolt-on over plug-on. The QHB mechanically fastens to the bus instead of clipping on, so vibration from rooftop units, chillers and compressors will not work the connection loose over time. It is a commercial-segment device, and the bolt-on mount is why spec writers call for it in mechanical spaces.
7) Is the Schneider QHB a standard thermal-magnetic breaker or does it have GFCI or AFCI protection?
Standard overcurrent protection only. The QHB is catalogued as a standard-type, standard-function 2-pole miniature circuit breaker, so it gives overload and short circuit protection and nothing else. If the circuit needs ground fault or arc fault protection to satisfy the inspector, a QHB will not do it and you need a device with that function built in.
8) What ambient temperature is the Schneider QHB breaker rated for?
40 degrees C ambient. Mechanical rooms, rooftop enclosures and kitchen back-of-house runs hot, and the QHB is calibrated for operation at that ambient, so the panel location should be held at or below it to keep the trip curve honest.
9) Can a Schneider QHB breaker be repaired or rebuilt if it trips repeatedly?
No. The QHB is a non-serviceable miniature circuit breaker, so there are no field-replaceable parts inside it. A breaker that keeps tripping gets diagnosed at the load and then replaced as a unit. For MRO stores standardizing on a panel, keeping spare QHB220 and QHB230 units on the shelf is the practical approach.
10) Does the Schneider QHB breaker meet RoHS and halogen-free requirements for a green building spec?
It is EU RoHS compliant, halogen free, mercury free and free of toxic heavy metals, and Schneider classes it as a Green Premium product with environmental disclosure ENVPEP2111016. One caveat for procurement teams tracking REACH: the reference contains Substances of Very High Concern above the threshold, so it declares under REACH even while meeting RoHS.
11) Where is the Schneider QHB circuit breaker made?
Mexico. That matters for buyers working under domestic-content or country-of-origin reporting on government and institutional jobs, where the origin has to be documented on the submittal.
