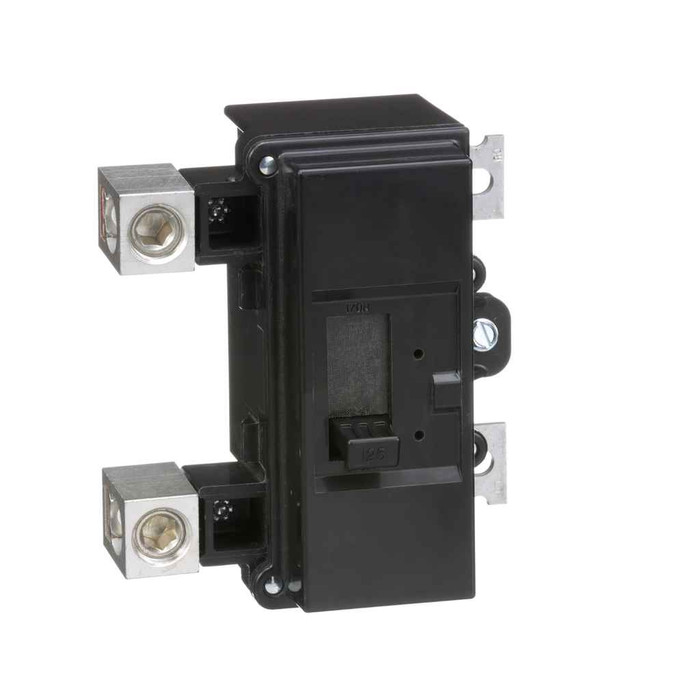

Schneider Electric QO Series 2-Pole Main Circuit Breaker 200A 120/240V Bolt-On Mount

Schneider Electric QO Series 2-Pole Main Circuit Breaker 200A 120/240V Bolt-On Mount

Professional Main Breaker Protection for Residential Load Centers

The Schneider Electric QO Series main circuit breaker delivers reliable primary protection for residential electrical systems with 200A capacity, 2-pole configuration, and 120/240V operation. This bolt-on mount breaker features 22kA interrupting capacity and lug electrical connections, providing professional-grade overcurrent protection for load center applications with proven Schneider Electric quality and 15-year average life duration.

Professional Features & Benefits

• 200A Current Rating: Provides robust main breaker protection for residential electrical systems with high-capacity load requirements.
• 22kA Interrupting Capacity: Delivers reliable fault current interruption capability for enhanced electrical system safety and protection.
• 2-Pole Configuration: Enables proper protection of single-phase 120/240V residential electrical systems with balanced load distribution.
• Bolt-On Mounting: Ensures secure mechanical connection and reliable electrical contact in load center installations.
• Lug Electrical Connection: Provides versatile wire termination options for professional installation flexibility.
• 15-Year Average Life: Delivers long-term reliability and durability for sustained electrical protection performance.
• 40°C Operating Temperature: Maintains reliable operation across standard ambient temperature conditions for residential applications.

Technical Specifications

• Accessories: QOM2PA
• Ambient Air Temperature For Operation: 40 °C
• Average Life Duration: 15 year(s)
• China Rohs In Scope: No
• Circuit Breaker Application: primary main breaker
• Circuit Breaker Type: standard
• Country Of Origin: Mexico
• Device Short Name: QOM2
• Device Type: LV equipment - Low voltage circuit breaker
• Electrical Connection: lugs
• Energy Efficiency Optimized: FALSE
• Environmental Disclosure: ENVPEP1403015
• Eoli Availability Display: No need of specific recycling operations
• Eu Rohs Directive: Compliant with Exemptions
• Field Service Division: PPIBS
• Function Option: Standard
• Function Option Id: STANDARD
• H And D Domain: Safety
• H And D Enrichment Assignment: no
• H And D Enrichment Class 3: Circuit Breakers
• H And D Enrichment Class 4: MCB UL 2P
• H And D Enrichment Function: MCB
• H And D Subrange: RESI
• Html Descr: QO main breaker, 200 A, 2 pole, 120/240 V, 22 kA, bolt on
• Legacy Weee Scope: In
• Load Center Type: main breaker
• Manufacturer: Schneider Electric
• Market Segmentation: Residential
• Market Segmentation Id: RESIDENTIAL
• Mercury Free: Yes
• Mounting Mode: bolt-on
• Packaging Without Single Use Plastic: No
• Phase: 1 phase
• Poles Description: 2P
• Product Availability: Stock - Normally stocked in distribution facility
• Product Contributes To Saved And Avoided Emissions: No
• Product Depth: 5.08 in
• Product Height: 5.59 in
• Product Or Component Type: miniature circuit-breaker
• Product Width: 3.58 in
• Range Of Product: QO
• Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Recycled Metal Content At Cr Level: 0%
• Relationshiptype: Compatible relationship
• Return Indicator: Y
• Returnability: Yes
• Rohs Eur Conformity Date: 2534
• Rohs Eur Full Compliance Status: Compliant with Exemptions
• Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Rohs Eur In Scope: Yes
• Rohs Eur Status: Compliant with Exemptions
• Rohs Exemption Information: Yes
• Scope Perimeter: Outside of Europe
• Serviceability: No
• Sustainable Packaging: No
• Take Back: No
• Tier: 1
• Tier Id: 1
• Total Lifecycle Carbon Footprint: 254 kg CO2 eq.
• Traceability: No
• Without Single Use Plastic: No
• Department: Electrical

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Load Centers
• Single-Family Homes
• Multi-Unit Residential Properties
• Residential Service Upgrades
• New Construction Projects
• Electrical Panel Replacements

Why Choose Schneider Electric Quality?

Schneider Electric QO Series circuit breakers deliver proven reliability with 15-year average life duration and mercury-free construction. The bolt-on mounting design ensures secure installation while lug electrical connections provide professional installation flexibility. With RoHS compliance and comprehensive safety certifications, this main breaker represents trusted Schneider Electric engineering for residential electrical protection applications.
