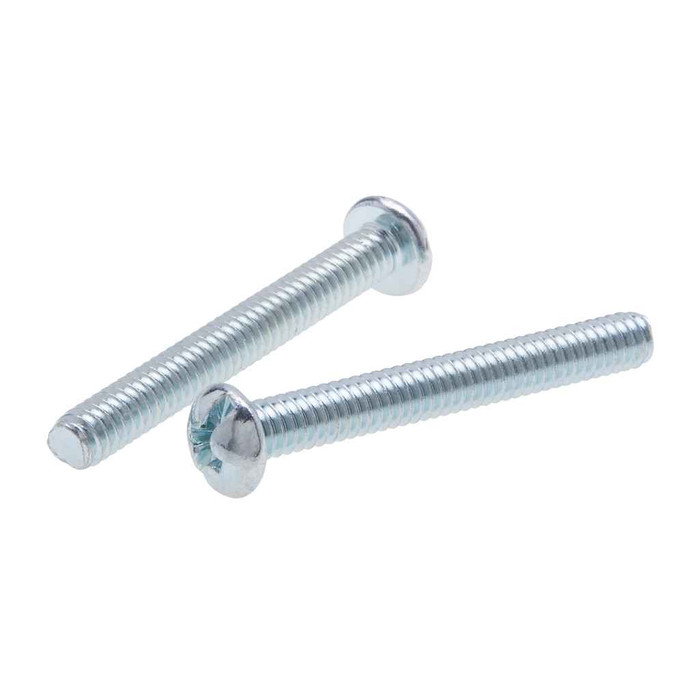

Screws 10-32 Rh Cd StvBlt Kit St-zn (Trey 1)
Features
- Hex Machine Screw Nut is a six-sided internally threaded fastener with flat tops and chambered corners, threads shall be unified standard Class 2B
- Steel Zinc is the most common and most popular variety of steel machine screws
- Steel Zinc Black and Black Oxide screws are used to blend in with black-colored components.
- Steel Zinc yellow screws are popular in electronics applications.
- Hex Machine Screw Nut is designed to be used specifically with machine screws.
Kit Components
- (100) #10 Lock Washers
- (150) #10-32 Hex Steel Nuts
- (100) #10 SAE Washers
- (50) 1/2, (30) 3/4, (20) 1, (30) 1-1/4, (15) 1-1/2, (15) 2
Additional Notes
- Other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ANSI B18.6.3
- Division:
- Electrical H1
- Drive Type:
- Slotted/Phillips
- Driver Size:
- #2
- Fastener Head Height:
- 0.123 - 0.137 in.
- Fastener Head Type:
- Round
- Fastener Head Width:
- 0.334 - 0.359 in.
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Finish:
- Zinc
- Hardness:
- Rockwell B70-B100
- Height:
- 1.25 in
- Language Code:
- EN
- Length:
- 8 in
- Material:
- Steel
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
- Number Of Pieces:
- 500
- Order Minimum Imperial:
- 1
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Tray
- Phillips Recess Depth:
- 0.119
- Phillips Recess Diameter:
- 0.182 - 0.195
- Phillips Recess Width:
- 0.031
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Height:
- 31.75 MM
- Product Length:
- 203.2 MM
- Product Series:
- RSB
- Product Weight:
- 971 g
- Product Width:
- 117.348 MM
- Slot Depth:
- 0.065 - 0.087
- Slot Width:
- 0.05 - 0.06
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 32
- Type:
- Stove Bolt Kit
- Weight:
- 2.14 lbs
- Width:
- 4.62 in
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Stove Bolt Kit
- Type2:
- Stove Bolt Kit
