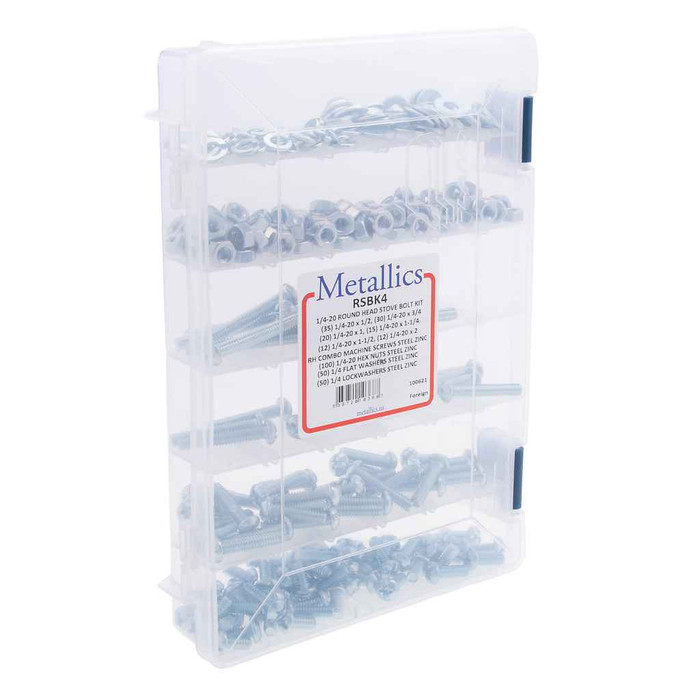

Metallics RSBK4 Screws 1/4-20 Rh Cd StvBlt Kit St- (Trey 1)

Metallics RSBK4 Screws 1/4-20 Rh Cd StvBlt Kit St- (Trey 1)

(No reviews yet) Write a Review

Model: RSBK4
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.46
$150.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Screws 1/4-20 Rh Cd StvBlt Kit St- (Trey 1)

  • Features

    • Hex Machine Screw Nut is a six-sided internally threaded fastener with flat tops and chambered corners, threads shall be unified standard Class 2B
    • Hex Machine Screw Nut is designed to be used specifically with machine screws.
    • Steel Zinc yellow screws are popular in electronics applications.
    • Steel Zinc Black and Black Oxide screws are used to blend in with black-colored components.
    • Steel Zinc is the most common and most popular variety of steel machine screws

  • Additional Notes

    • Other sizes and quantities available by request | Steel machine screws which have a nominal diameter smaller than #4 are not subject to tensile testing. No. 4 and No. 5 machine screws which are shorter than 1/2" are not subject to tensile testing. Steel machine screws of diameters No. 6 to 1/2" inclusive, which are shorter than either 1/2" or 3D (where D is the nominal screw size in inches) are not subject to tensile testing. Such steel machine screws of a size to be tested shall meet the tensile load requirements listed above.

  • Kit Components

    • (50) 1/4 SAE Washers
    • (35) 1/2, 30 - 3/4, (20) 1, 15 - 1-1/4, (12) 1-1/2, (12) 2
    • (50) 1/4 Lock Washers
    • (100) 1/4-20 Hex Nuts

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Country Of Origin:
MUL
Dimensional Standard:
ANSI B18.6.3
Division:
Electrical H1
Drive Type:
Slotted/Phillips
Driver Size:
#4
Fastener Head Height:
0.16 - 0.175 in.
Fastener Head Type:
Round
Fastener Head Width:
0.443 - 0.472 in.
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Hardness:
Rockwell B70-B100
Language Code:
EN
Material Standard:
AISI 1006 - 1022
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stove_Bolt.pdf
Number Of Pieces:
324
Order Minimum Imperial:
1
Order Minimum Uom Imperial:
EA
Pack Type:
Tray
Phillips Recess Depth:
0.147
Phillips Recess Diameter:
0.255 - 0.268
Phillips Recess Width:
0.034
Product Family:
Electrical Supplies
Product Group:
Fasteners
Product Height:
1.75 in
Product Length:
11 in
Product Weight:
3.25 lbs
Product Width:
7.25 in
Slot Depth:
0.082 - 0.109
Slot Width:
0.064 - 0.075
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Per Inch:
20
Department:
Electrical
Product Subgroup:
Screws
Product Type:
Stove Bolt Kit
Type2:
Stove Bolt Kit
Series:
RSB
Product Finish:
Zinc
Product Details:
Stove Bolt Kit
Product Material:
Steel

Metallics RSBK4 – Frequently Asked Questions

1) What exactly comes in the Metallics RSBK4 stove bolt kit?
The RSBK4 is a 324-piece tray of 1/4-20 round head stove bolts with matching hardware. Bolt lengths run 1/2, 3/4, 1, 1-1/4, 1-1/2 and 2 inch (35 of the 1/2 inch, 30 of the 3/4, 20 of the 1 inch, 15 of the 1-1/4, 12 each of the 1-1/2 and 2 inch). It also includes 100 1/4-20 hex nuts, 50 1/4 SAE flat washers and 50 1/4 lock washers, so you can make up a bolted connection without pulling parts from another bin.
2) Do these 1/4-20 bolts thread into standard 1/4-20 strut channel nuts and fittings?
Yes. Thread is 1/4-20 UNC, 20 threads per inch, made to ANSI B18.6.3, so it mates with any standard 1/4-20 internal thread (channel nuts, spring nuts, tapped brackets) as well as the 1/4-20 hex nuts supplied in the tray.
3) How much clamping load will these stove bolts take on a conduit or box support?
Steel bolts with a 60,000 psi minimum tensile strength and Rockwell B70 to B100 hardness, made from AISI 1006 to 1022 steel. That is standard low-carbon machine screw material, fine for mounting boxes, straps, hangers and panel work, but it is not a grade 5 or grade 8 structural bolt. For a load-bearing structural connection, step up to a hex cap screw in the proper grade.
4) Can I use this kit on a federally funded job with Buy American requirements?
No. The RSBK4 kit is listed as not Buy American compliant and not ARRA compliant, with multiple countries of origin. If your project carries a domestic-content clause, source a domestically manufactured 1/4-20 machine screw assortment instead.
5) Will a Phillips bit drive these 1/4-20 stove bolts, or do I need a flat blade?
Either works. The heads are combination slotted/Phillips, so a #4 Phillips driver seats in the recess (0.255 to 0.268 inch diameter, 0.147 inch deep) and a flat blade fits the slot (0.064 to 0.075 inch wide, 0.082 to 0.109 inch deep). Handy on a ladder where you only brought one screwdriver.
6) Is the zinc finish on these stove bolts OK for a damp or outdoor location?
The bolts are steel with a zinc finish, which is a general-purpose corrosion coating for indoor and dry service. It will handle a mechanical room or an unheated space, but for direct weather exposure, wash-down, or coastal work you want hot-dip galvanized or stainless fasteners instead.
7) What trades actually use a 1/4-20 stove bolt kit like this?
Metallics lists the RSB series for electrical, plumbing, heating and air conditioning work. In practice that is mounting boxes and enclosures, hanging strut and channel, fastening straps and brackets, and duct and equipment attachment where a through-bolt and nut is wanted rather than a tapping screw. The included lock washers let you make up a joint that resists vibration on mechanical equipment.
