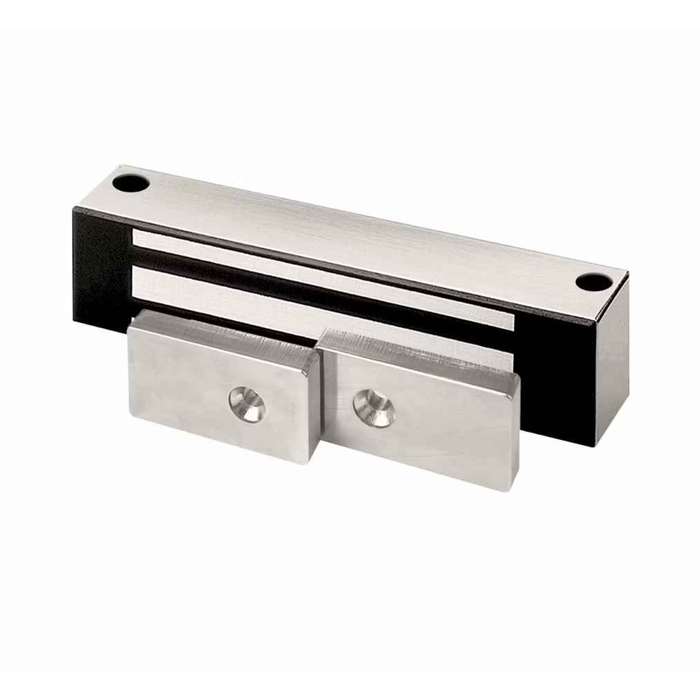

Securitron M32-SS Split Strike Magnalock for Double-Door Cabinet Control

Securitron M32-SS Split Strike Magnalock for Double-Door Cabinet Control

(No reviews yet) Write a Review

Model: M32-SS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$590.00
$420.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Split Strike Magnalock®
Split Strike for Double-Door Cabinet Control

Now you can add asset control to your existing access control system with the durable, power-effi cient M32-SS.
Each strike plate of the M32-SS delivers 300lbs of holding force (600lbs total).
Ideal for securing large two-door cabinets, retail cases or double-door, indoor/outdoor storage applications with out-swinging doors that share a common center latching point.

FEATURES & BENEFITS

STANDARD FEATURES
• Direct mount with common tools for strength and reliability;
• For 5/8" to 7/8" [15.875mm to 22.225mm] thick cabinet doors;
• Efficient, low power usage
• Noise suppression with included MOV
• Instant release circuit — no residual magnetism
• Fully sealed and for weather-proof operations
• Rust resistant — all ferrous metal surfaces plated for durability
• 10 ft. [3.05m] of jacketed, stranded conductor cable
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

OPTIONAL FEATURES
• B BondSTAT® magnetic bond sensor — Patented (MBS)
• Use with CWB-32 bracket for mounting option on wood or concrete

SPECIFICATIONS


Electrical
• Dual voltage 12/24 VDC
• 300 mA at 12 VDC / 150 mA at 24 VDC

Holding Force
• Static Strength 600 lbs (300 lbs per strike)

Environmental
• Operating Temperature: 40° to 140°F [-40° to 60°C]
• Indoor or outdoor use

Shipping Weight
• 6 lbs [2.72kg]


DOWNLOAD & RESOURCES

• Securitron M32-SS Cabinet Locks Template
• Securitron M32-SS Cabinet Lock Catalog Page
• HES Cabinet Locks Overview Brochure

Manufacturer Resources

Product Specs

Series:
M32-SS
Holding Force:
600
Product Type:
Cabinet Lock
Product Group:
Cabinet Hardware
Product Subgroup:
Cabinet Latches and Locks
Subcategory:
Cabinet Latches and Locks
Commercial/Residential:
Commercial
Warranty:
Lifetime Replacement
Product Model:
M32-SS
Product Voltage:
12/24VDC
Fire Rating:
Yes
Product Height:
1-7/8''
Product Category:
Cabinet Hardware
Product Width:
8''
Department:
Door Hardware
Product Depth:
1-5/8''

Securitron M32-SS – Frequently Asked Questions

1) Will the Securitron M32-SS work on a pair of out-swinging cabinet doors with no center post?
That is exactly the opening it is built for. The M32-SS is a split strike magnet: one magnet body with two separate strike plates, so each leaf of a double door gets its own strike at the shared center latching point. It suits large two-door cabinets, retail display cases, and double-door indoor or outdoor storage, all with out-swinging doors. In-swinging leaves are not the application.
2) What voltage and current draw should I plan for on a Securitron M32-SS cabinet magnet?
Dual voltage 12/24 VDC, field selectable, drawing 300 mA at 12 VDC or 150 mA at 24 VDC. Running it at 24 volts halves the current, which matters when you are hanging several cabinets off one access control power supply. It ships with 10 ft of jacketed stranded conductor cable, so plan your transition point within that reach or splice into a junction.
3) What is the difference between the two M32-SS options, and do I need BondSTAT monitoring?
The M32-SS comes two ways: no monitoring, or with the BondSTAT magnetic bond sensor (MBS). BondSTAT reports actual magnetic bond, not just that the door is closed, so your access control head end can tell the difference between a latched cabinet and one resting shut against a dead magnet. Specify it if the panel needs a real secured state or you are logging cabinet status; skip it for straightforward lock and release on a controlled output.
4) How much room do I need inside the cabinet to mount an M32-SS Magnalock?
The magnet body measures 8 x 1-7/8 x 1-5/8 inches. Lay that footprint out at the head over the center latching point before committing, since it mounts direct with common tools rather than into a mortise pocket. If the cabinet is wood or the assembly is on concrete, the CWB-32 bracket is the mounting option for those substrates.
5) Can a Securitron M32-SS be used on an outdoor storage cabinet?
Yes, it is rated indoor or outdoor. The unit is fully sealed for weather-proof operation and every ferrous metal surface is plated for rust resistance. Operating range is -40 to 140 degrees F (-40 to 60 degrees C), which covers unconditioned yard enclosures, loading dock cabinets, and rooftop equipment cases.
6) Will an M32-SS drop into an existing access control system, or do I need a separate panel?
It ties into what you already have. The M32-SS is a fail-safe magnet on a controlled output, so any access control relay or reader interface already switching 12 or 24 VDC can drive it, and the door releases the instant power drops. There is an instant release circuit with no residual magnetism, meaning the cabinet opens immediately rather than sticking after the relay opens, and an MOV is included for noise suppression back into the panel.
7) Should I use a split strike magnet or a pair of separate cabinet magnets on a two-door case?
A split strike is the answer when both leaves meet at a common center point with no mullion. One M32-SS body serves both doors, one wire run, one output from the panel, and 300 lbs on each leaf. Two individual magnets make more sense when the leaves latch at opposite jambs, or when a center post gives each door its own header landing. Where the doors meet in the middle, the split strike is the cleaner install and the cheaper wiring job.
8) Is the Securitron M32-SS rated for commercial use, and is it fire rated?
Commercial grade, and carries a fire rating. That matters for institutional specs on medication cabinets, tool cribs, evidence storage, and display cases inside healthcare, education, and government facilities, where the cabinet hardware has to pass the same review as the door hardware around it.
