Securitron Sex Bolt Replacement

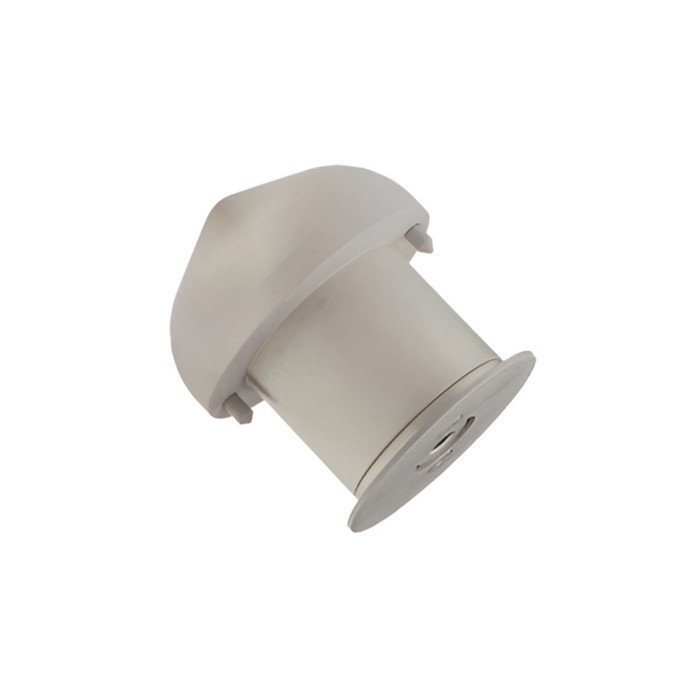

The SB-1 replacement sex bolt is the through-bolt hardware for the Securitron M32, M62, M82, M38 and M68 Magnalocks. If you are re-hanging one of those magnets or lost the original bolt during a door swap, this is the same part that came with the lock.

No. The standard SB-1 tops out at 1-3/4 inch doors. For anything thicker, up to 3 inches, you need the TDK-1 Thick Door Kit, which extends the SB-1 for use on M32, M38, M62, M68 and M82B Magnalocks. Order the kit along with the bolt, not instead of it.

Two different parts under the same family. The Replacement Sex Bolt is the plain through-bolt that anchors the Magnalock. The Energy Absorbing Sex Bolt is the version used where the mag takes repeated impact or slam loading. There is also a 1/4 inch spacer kit if you need to shim the magnet or armature off the door face. Pick by what the original install used.

It does. Certain sex bolt and spacer options are called out for a specific magnet, M32, M62 or M82, while the standard replacement bolt covers M32, M62, M82, M38 and M68 together. Match the option to the model number stamped on your magnet so the bolt length and prep line up.

Four choices, so you can match the magnet and the door: 605 bright brass clear coated, 613 dark oxidized satin bronze (oil rubbed), 652 satin chromium plated over nickel, and White Matte. Securitron catalogs the plain clear bolt as SB-1, polished brass as SB-1-03 and oil rubbed bronze as SB-1-10B.

Only if the armature or magnet does not sit flush on your door. The 1/4 inch spacer kit is ordered separately from the sex bolt and is used to build out the mounting by a quarter inch. On a straight one-for-one bolt replacement where nothing else changed, you do not need it.

Yes, Securitron lists the SB-1 as commercial door hardware. It is a replacement part for electromagnetic lock installations, so it belongs on access-controlled openings in commercial and multi-family buildings rather than residential retrofits.
