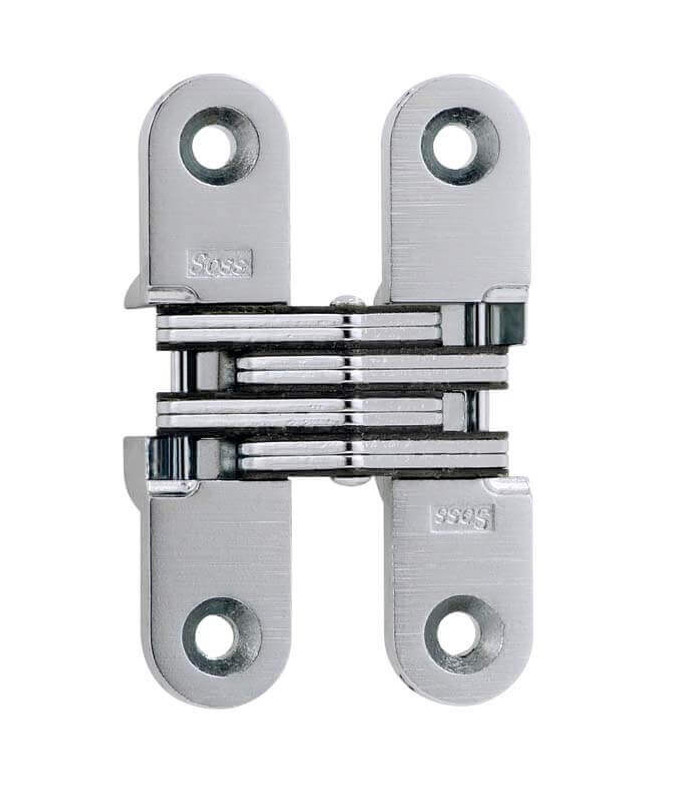

SOSS 208 Series Invisible Hinge with Nylon Links for 1" to 1-1/8" Wood or Metal Doors

SOSS 208 Series Invisible Hinge with Nylon Links for 1" to 1-1/8" Wood or Metal Doors

(No reviews yet) Write a Review

Model: 208US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$22.89
$19.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 208 Series Invisible Hinge with Nylon Links for 1" to 1-1/8" Wood or Metal Doors

The SOSS 208 Series Invisible Hinge is engineered for wood or metal applications that are 1" to 1-1/8" thick, delivering a fully concealed appearance when the door is closed. Constructed of zinc and steel with internal nylon links for added strength and durability, this mid-range hinge opens a full 180° as a single action hinge. Ideal where flush fit, compact size, and smooth operation are required, the 208 Series is sized at 2-3/4" and suitable for cabinet, metal, and wood applications.

Key Features

  • Material Thickness Compatibility: Designed for wood or metal doors and applications that are 1" to 1-1/8" thick, with a minimum material thickness of 1".
  • Full 180° Operation: Single action hinge design allows the door to swing a full 180° for versatile installation.
  • Durable Construction: Made of zinc and steel materials for long-term reliability in cabinet, metal, and wood applications.
  • Nylon Link Reinforcement: Internal nylon links provide added strength and durability to the hinge mechanism.
  • Invisible, Flush-Fit Design: Fully concealed when the door is closed, offering a clean appearance with compact size and smooth operation.
  • Product Size: 2-3/4" size fits standard cabinet, wood, and metal door applications.
  • Wood Screws Included: Wood screws are included with each unit; machine screws are available for an additional charge.
  • Convenient Packaging: Packaged 1/Box = 1 each, priced per pair, with 1 package per container for straightforward ordering.

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Commercial/Residential: Commercial
  • Product Group: Door Hinges and Pivots
  • Product Type: Hinges and Pivots
  • Duty Level: Medium Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 208 Series
  • Product Size: 2-3/4"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware
  • Application: Cabinet, Metal, Wood
  • Min. Material Thickness: 1″
  • Fire Rating: No
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: Wood
  • Packaging: 1/Box = 1 each
  • Packages Per Container: 1
  • Price Per: Each

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Cabinet and Millwork Installations
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why SOSS 208?

SOSS 208 Series Invisible Hinges combine zinc and steel construction with reinforced nylon links to deliver a mid-range hinge built for superior appearance and durability. Designed to open a full 180° as a single action hinge, the 208 Series is trusted in applications where flush fit, compact size, and smooth operation are essential requirements.

Manufacturer Resources

Hinge Template

Product Specs

Subcategory:
Hinges and Pivots
Commercial/Residential:
Commercial
Product Group:
Door Hinges and Pivots
Product Type:
Hinges and Pivots
Product Subgroup:
Invisible Hinges
Duty Level:
Medium Duty
Electronic:
No
Corner Type:
Radius
Series:
208 Series
Product Size:
2-3/4"
Product Category:
Door Hinges and Pivots
Product Substrate:
Zinc and Steel
Department:
Door Hardware

SOSS 208US26D – Frequently Asked Questions

1) Will a SOSS 208 invisible hinge work on a standard 1-3/4 inch commercial door?
No. The 208 Series is built for wood or metal material 1 inch to 1-1/8 inch thick, and 1 inch is the minimum material thickness it will take. A standard 1-3/4 inch commercial door is well outside that band, so you want a SOSS invisible hinge whose stated material thickness range covers 1-3/4 inches instead. Where the 208 belongs is thin doors, cabinet doors, and millwork panels sitting in that 1 to 1-1/8 inch range.
2) Do SOSS 208 invisible hinges come with screws, and what do I need for a metal application?
Wood screws come in the box with each 208 hinge. If you are hanging metal, machine screws are not included and have to be added to the order separately. Worth knowing before you cut: the screw holes on the 208 are not counterbored.
3) How far will a door on SOSS 208 invisible hinges open?
A full 180 degrees. The 208 Series is a single action hinge, so the door swings one direction only, but it goes the whole 180 and can lay back flat against the adjacent surface. If you need a panel that pushes both ways, a single action hinge is the wrong device for the opening.
4) Is there a routing template for mortising in a SOSS 208 hinge?
SOSS publishes a hinge template for the 208 Series that gives you the pocket layout for the door edge and the frame. The hinge is the 2-3/4 inch size with radius corners. Both leaves mortise in, which is what lets the hinge disappear completely once the door is shut.
5) What finishes does the SOSS 208 invisible hinge come in for matching the rest of my hardware?
Eight finishes: unplated (UNP), 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, and 626 satin chrome. Those are standard BHMA finish numbers, so if the other hardware on the opening is specified by number you can match it directly rather than eyeballing it.
6) Can a SOSS 208 invisible hinge go on a fire rated door?
Keep it off rated openings. The 208 Series carries no fire rating, so it cannot be used where the assembly has to hold a label. For a rated opening you need hinges listed for that assembly. On unrated interior doors, cabinets, and millwork the 208 is fine.
7) Can I run access control wiring through a SOSS 208 invisible hinge?
There is no path for it. The 208 is a purely mechanical hinge with no power transfer and no electronic version, so wiring to an electrified lock or exit device has to run through a dedicated electric power transfer hinge or a surface door loop on that opening.
8) Why choose an invisible hinge like the SOSS 208 over a regular butt hinge?
It comes down to what shows. The 208 mortises fully into the material and vanishes when the door is closed, where a butt hinge leaves its knuckle proud of the door edge on the hinge side. Pick the invisible hinge when the door has to read as part of the wall or the cabinet face, or when the design will not tolerate visible hardware. Pick a butt hinge when you want a surface mount that drops into an existing prep with no routing, since the 208 needs pockets cut in both the door and the frame.
9) Are SOSS 208 hinges suitable for cabinet doors and millwork panels?
Cabinet work is one of the 208's listed applications, along with wood and metal. At the 2-3/4 inch size and a 1 inch minimum material thickness it suits cabinet doors and panels in the 1 to 1-1/8 inch range, which covers most casework and architectural millwork. Thinner than 1 inch and the hinge has nowhere to mortise into.
10) Is the SOSS 208 strong enough for a door that gets used all day in a commercial building?
It is a commercial, medium duty hinge, built from zinc and steel with internal nylon links carrying the pivot action. That puts it in service in offices, schools, healthcare, retail, and multi-tenant buildings on the thin doors and casework it is sized for. For a heavy, high traffic entrance door you would step up to a heavier invisible hinge sized for thicker material anyway, since the 208 tops out at 1-1/8 inch stock.
11) Will a SOSS 208 hinge pull the door closed on its own?
No closing action of any kind. The 208 is a plain single action hinge with no built-in closer, so the door stays wherever you leave it through its 180 degrees. If the door needs to return to the frame or stay shut, that job belongs to a separate closer, catch, or latch.
