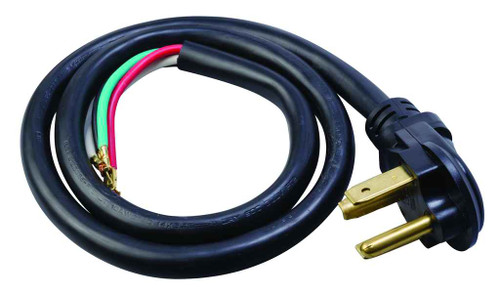

Southwire 9044SW8808 Range Replacement Cord - 6/2-8/2 50-AmpRound SRDT 4-Wire 4' with NEMA 14-50 Plug - Black
Manufacturer Resources
Product Specs
- Amps:
- 50 Amps
- Batteries Required :
- No
- Certifications And Listings:
- UL
- Compact Fluorescent Light Bulb :
- No
- Cord Construction Style Tubed Pressure Filled :
- Filled
- Csa Certified:
- No
- Direct Burial:
- No
- Energy Guide Label Required:
- No
- Flame Retardant:
- No
- Gauge:
- 6/2-8/2
- Gauge Conductor:
- 6/2-8/2
- Grounded:
- No
- Indoor Outdoor:
- Indoor
- Insulation Material Pvc Tpe Rubber :
- PVC
- Item Depth:
- 10
- Item Height:
- 2.25
- Item Length:
- 12
- Item Volume Cubic Feet:
- 0.08025
- Item Weight:
- 2.23
- Item Width:
- 5
- Master Carton Length:
- 15.75
- Master Pack Height:
- 3.5
- Max Min Temperature F :
- -4 to 140 F
- Maximum Temp C:
- 60
- Maximum Temp F:
- 140
- Minimum Temp C:
- -20
- Minimum Temp F:
- -4
- Nmfc Classification:
- 61490
- Number Of Outlets:
- 0
- Package Length:
- 10
- Packaging Type:
- Sleeve
- Plug Color:
- Black
- Plug Configuration:
- NEMA 14-50P
- Shielded:
- No
- Solar Powered :
- No
- Swing Arm :
- No
- Tier Qty Pallet:
- 30
- Wattage Watts :
- 7500/15000
- Wet Location Use:
- No
- Product Voltage:
- 125/250
- Product Color:
- Black
- Product Material:
- SRDT Round
Southwire 90448808 – Frequently Asked Questions
1) Is this a 3-wire or 4-wire range cord, and which does new construction require?
It is a 4-wire cord, with two hots, a neutral and a ground, terminating in a NEMA 14-50P. Current practice for new range circuits is the 4-wire setup, which is why the 14-50 receptacle is what gets installed today. If the apartment or house still has a 3-prong 10-50 receptacle on a 3-wire branch circuit, this cord is the wrong one for that opening and the range's bonding strap stays in place with a 3-wire cord instead.
2) Is this range cord UL listed for a rental unit inspection?
Yes, the 90448808 cord carries a UL listing. It is not CSA certified, so for work in Canada where CSA marking is required on the cordset, specify a CSA marked cord instead.
3) Can this Southwire range cord be used in a garage, outdoors, or anywhere damp?
No. It is rated for indoor use only, with no wet-location rating and no direct burial rating. Keep it to a kitchen or interior appliance location. Operating temperature range is -4 to 140 F.
4) Will a 50 amp NEMA 14-50 range cord work as an EV charger cord?
This is an appliance replacement cordset for a range: 4 feet, indoor rated only, with a 14-50 plug on one end and bare conductor ends for the terminal block in the appliance. It has no receptacle on it (zero outlets) and no outdoor or wet-location rating, so it is not an EV charging cable or an extension. For charging, use equipment built and rated for that service.
5) Is the cord round or flat, and does that matter behind a range?
It is a round SRDT cord. Flat cords lie tighter against a wall when clearance behind the appliance is tight; a round jacket takes a bit more depth but is easier to dress and less prone to kinking at the strain relief. Both land on the same range terminal block when matched to the correct plug configuration.
