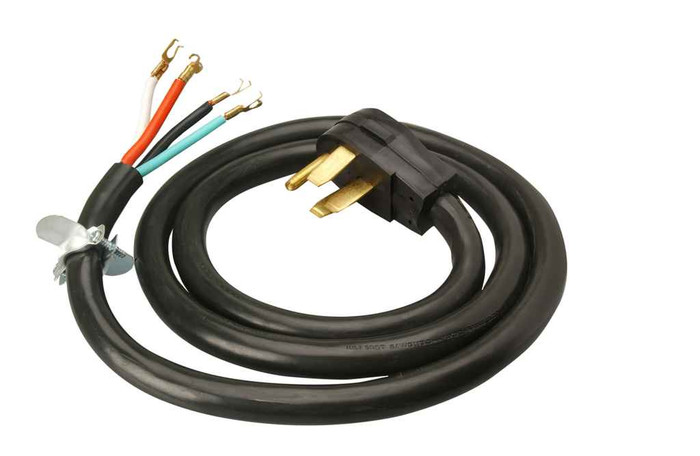

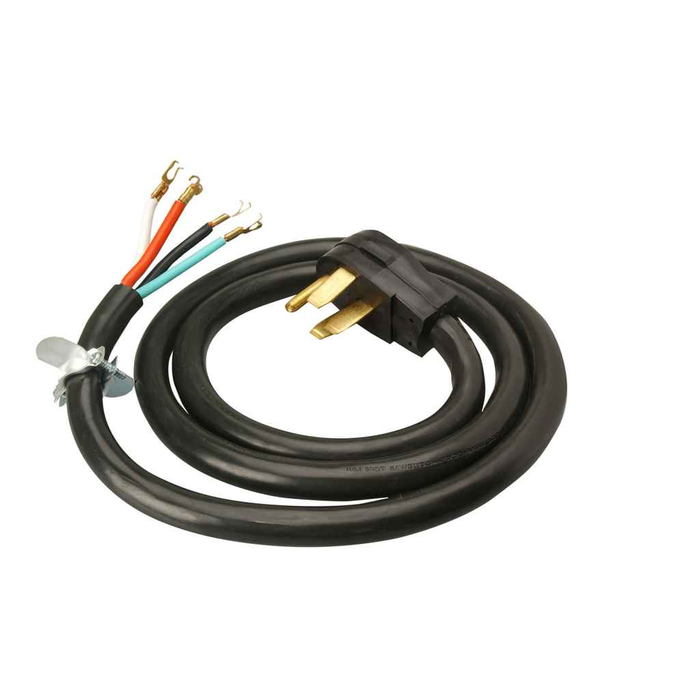

Southwire 9046SW8808 Range Replacement Cord - 6/2-8/2 50-Amp Round SRDT 4-Wire 6' with NEMA 14-50 Plug - Black
Features
- UL Listed
Manufacturer Resources
Product Specs
- Amps:
- 50 Amps
- Batteries Required :
- No
- Certifications And Listings:
- UL
- Compact Fluorescent Light Bulb :
- No
- Cord Construction Style Tubed Pressure Filled :
- Filled
- Csa Certified:
- No
- Direct Burial:
- No
- Energy Guide Label Required:
- No
- Flame Retardant:
- No
- Gauge:
- 6/2-8/2
- Gauge Conductor:
- 6/2-8/2
- Grounded:
- No
- Indoor Outdoor:
- Indoor
- Insulation Material Pvc Tpe Rubber :
- PVC
- Item Depth:
- 10
- Item Height:
- 2.25
- Item Length:
- 12
- Item Volume Cubic Feet:
- 0.11957
- Item Weight:
- 3.13
- Item Width:
- 5
- Master Carton Length:
- 15.75
- Master Pack Height:
- 4.75
- Max Min Temperature F :
- -4 to 140 F
- Maximum Temp C:
- 60
- Maximum Temp F:
- 140
- Minimum Temp C:
- -20
- Minimum Temp F:
- -4
- Nmfc Classification:
- 61490
- Number Of Outlets:
- 0
- Package Length:
- 10
- Packaging Type:
- Sleeve
- Plug Color:
- Black
- Plug Configuration:
- NEMA 14-50P
- Shielded:
- No
- Solar Powered :
- No
- Swing Arm :
- No
- Tier Qty Pallet:
- 20
- Wattage Watts :
- 7500/15000
- Wet Location Use:
- No
- Product Voltage:
- 125/250
- Product Color:
- Black
- Product Material:
- SRDT Round
Southwire 90468808 – Frequently Asked Questions
1) Will this Southwire range cord plug into my 4-prong 50-amp dryer or range outlet?
It terminates in a NEMA 14-50P plug, the 4-wire 50-amp configuration (two hots, neutral, ground) used for electric ranges. If your wall receptacle is a 14-50R, it mates. If you have the older 3-prong 10-50R range outlet, this cord will not fit and you need a 3-wire range cord instead.
2) Is a 4-wire range cord required, or can I reuse the 3-wire cord that was on the old range?
New construction and most jurisdictions require the 4-wire setup for ranges, which is what this Southwire cord provides with its NEMA 14-50P end. A 4-wire cord separates neutral from ground, so when you install it you must remove the factory bonding strap or jumper between the neutral terminal and the frame on the appliance. Reusing a 3-wire cord on a 4-wire receptacle is not possible anyway, since the blade pattern differs.
3) What wire gauge is this 50-amp range cord and is it heavy enough for a full-size electric range?
Conductors are 6/2-8/2, meaning the two 6 AWG current-carrying legs with 8 AWG neutral and ground, which is the standard build for a 50-amp range circuit. Rated capacity is 50 amps at 125/250 volts, 7500/15000 watts.
4) How long is the Southwire 90468808 range cord, and will 6 feet reach from the range to the wall outlet?
The cord is 6 feet. For a range pushed into a standard cabinet opening with the receptacle behind it, 6 feet is the usual length and leaves slack for pulling the appliance out. If your receptacle sits in an adjacent cabinet or well off to the side, measure first, cords cannot be spliced or extended.
5) Can this range cord be used outdoors on a patio kitchen or in a damp garage?
No. The SRDT round PVC cord is rated for indoor use only, it is not approved for wet locations and not for direct burial. For an outdoor range or appliance, use a cord and connection method listed for wet locations.
6) Can I use this 50-amp 14-50 cord for an EV charger or welder instead of a range?
Don't. This is an appliance cord assembly built as a range replacement cord, SRDT jacket, indoor only, with ring terminals for an appliance terminal block. EV charging equipment and welders need the cord set specified by that equipment's listing. Using an appliance cord in its place is outside what it is listed for.
7) What temperature range can this range cord handle behind a hot oven?
Rated -4 to 140 F (-20 to 60 C). That covers normal cabinet conditions behind a range, but keep the cord off the oven back panel and out of direct contact with hot surfaces, and route it so it is not pinched when the appliance is pushed back.
8) Does this cord come with the terminal ring lugs and strain relief needed to wire it to the range?
The Southwire 90468808 is a factory-assembled 4-wire range cord with the NEMA 14-50P molded on one end and ring-terminal conductors at the appliance end. The strain relief clamp or bushing for the appliance's cord entry is typically supplied with the range, not the cord, so check the appliance box before the install trip.
9) How is the Southwire range cord packaged for stocking in a maintenance crib?
It ships in a sleeve, one cord per pack, with a listed item weight of 3.13 lb. Pallet tier quantity is 20 for anyone buying in volume for a multi-family turn program.
