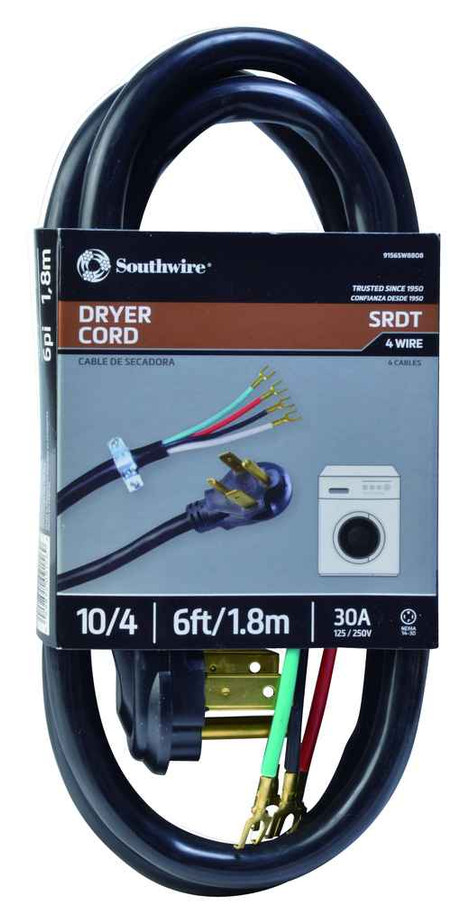

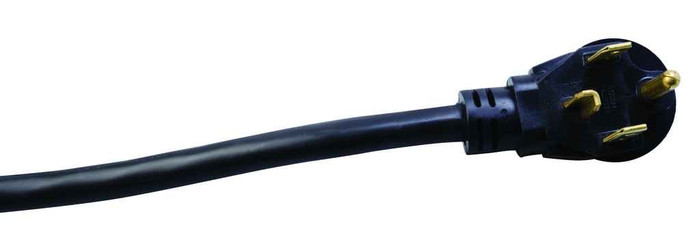

Southwire 9156SW8809 Dryer Replacement Cord - 10/4 30-Amp Round SRDT 4-Wire 6' with NEMA 14-30 Plug - Gray
Features
- UL Listed
Manufacturer Resources
Product Specs
- Amps:
- 30 Amps
- Batteries Required :
- No
- Certifications And Listings:
- UL
- Compact Fluorescent Light Bulb :
- No
- Cord Construction Style Tubed Pressure Filled :
- Filled
- Csa Certified:
- No
- Direct Burial:
- No
- Energy Guide Label Required:
- No
- Flame Retardant:
- No
- Gauge:
- 4-Oct
- Gauge Conductor:
- 4-Oct
- Grounded:
- Yes
- Indoor Outdoor:
- Indoor
- Insulation Material Pvc Tpe Rubber :
- PVC
- Item Depth:
- 10
- Item Height:
- 1.5
- Item Length:
- 12
- Item Volume Cubic Feet:
- 0.14685
- Item Weight:
- 1.92
- Item Width:
- 5
- Master Carton Length:
- 13
- Master Pack Height:
- 6
- Max Min Temperature F :
- -4 to 140 F
- Maximum Temp C:
- 60
- Maximum Temp F:
- 140
- Minimum Temp C:
- -20
- Minimum Temp F:
- -4
- Nmfc Classification:
- 61490
- Number Of Outlets:
- 0
- Package Length:
- 10
- Packaging Type:
- Sleeve
- Plug Color:
- Black
- Plug Configuration:
- NEMA 14-30P
- Shielded:
- No
- Solar Powered :
- No
- Swing Arm :
- No
- Tier Qty Pallet:
- 20
- Wattage Watts :
- 3750/7500
- Wet Location Use:
- No
- Product Voltage:
- 125/250
- Product Color:
- Black
- Product Material:
- SRDT Round
Southwire 91568808 – Frequently Asked Questions
1) Is a 10/4 30-amp dryer cord enough for a standard electric dryer?
Yes for a typical residential electric dryer on a 30-amp circuit. The cord is rated 30 amps at 125/250 volts, which works out to 3750/7500 watts, and it uses 10 AWG 4-conductor wire. If the appliance nameplate calls for a 50-amp circuit (common on ranges, not dryers), this is the wrong cord.
2) Is 6 feet long enough, or should I run a longer dryer cord?
Six feet covers most laundry closets and alcoves where the receptacle sits behind or beside the dryer. If the dryer has to sit well off the wall, or the receptacle is on an adjacent wall, measure from the terminal block to the outlet with the appliance pulled out for service and step up to a longer cord. Dryer cords are not meant to be extended with an extension cord.
3) Can this dryer cord be used in a garage, basement, or outdoors?
Indoor use only. The Southwire 91568808 is not rated for wet locations and is not direct burial rated, so a dry interior laundry location is the limit. A conditioned basement or interior garage laundry is fine as long as it stays dry; anywhere exposed to weather or washdown is not. The cord jacket is good from -4 to 140 F.
4) Is the ground on a NEMA 14-30 dryer cord separate from the neutral?
Yes. The cord is grounded, and the 4-wire 14-30 arrangement carries two hots, a neutral, and a dedicated equipment ground, which is why current code requires it for new dryer circuits. That separation is the whole reason to use this instead of a 3-wire cord that bonds the frame to the neutral.
5) What is SRDT round cord and how is it different from flat dryer cord?
SRDT is the service cord type used for dryer and range pigtails; round means the jacket is circular rather than the flat ribbon profile. Construction here is filled with PVC insulation. Round cord routes and coils better behind an appliance, but it needs a round cord entry or a bushing sized for round cord, so check what the dryer's cord hole and clamp were set up for before swapping a flat cord for a round one.
