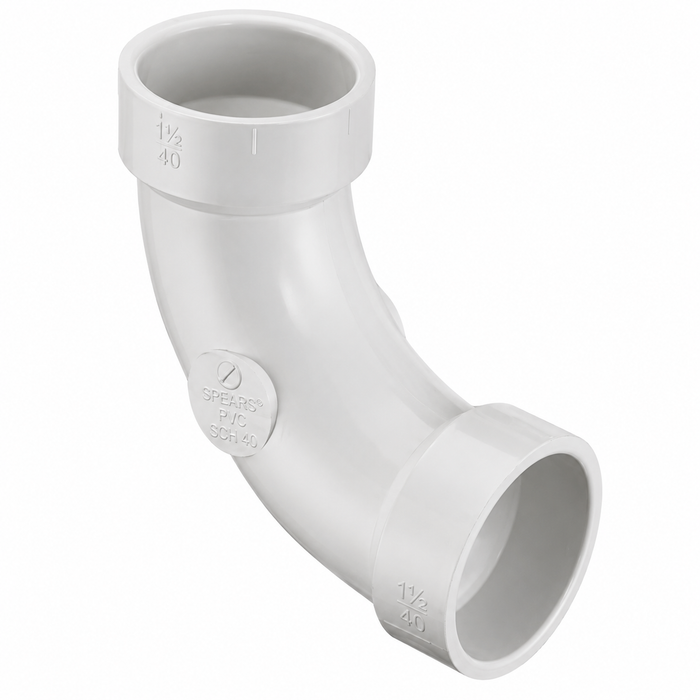

Spears PVC DWV Long Sweep 90° (1/4 Bend) Elbow, Hub x Hub

Spears PVC DWV Long Sweep 90° (1/4 Bend) Elbow, Hub x Hub

(No reviews yet) Write a Review

Model: P304-020

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Spears PVC DWV Long Sweep 90° Elbow, Hub x Hub

The Spears PVC DWV Long Sweep 90° Elbow (1/4 Bend) is engineered for drain, waste, and vent applications where a smooth, gradual directional change is required. Constructed from durable PVC with Hub x Hub solvent-weld connections on both ends, this long sweep fitting minimizes turbulence and flow restriction compared to standard short-radius elbows. This long sweep 90° elbow is available in trade sizes from 2" through 6" (2", 3", 4", and 6"), giving plumbing contractors and DIY installers a consistent, code-compliant fitting style across common DWV pipe diameters.

Key Features

  • Trade Size Range: Available in 2", 3", 4", and 6" sizes to match common DWV piping runs.
  • Long Sweep Design: The 90° (1/4 bend) long sweep geometry provides a gradual turn that promotes smoother waste and vent flow through the piping system compared to short-radius elbows.
  • Hub x Hub Connections: Solvent-weld hub fittings on both ends deliver a secure, leak-resistant joint when properly primed and cemented.
  • Durable PVC Construction: Lightweight, corrosion-resistant PVC material stands up to the demands of drain, waste, and vent service without rusting or degrading over time.
  • 90° / 1/4 Bend Configuration: A true quarter-bend elbow for redirecting DWV piping runs by 90 degrees, consistent across every size in the range.
  • Job-Site Ready Packaging: Packaged for efficient stocking and inventory management across all available trade sizes.

Technical Specifications

  • Product Material: PVC
  • Angle: 90°
  • Trade Sizes Available: 2", 3", 4", 6"
  • PDF:PVC DWV Drain Waste Vent Fittings: https://zensupply.com/content/pdf/spears/pvc-dwv-drain-waste-vent-fittings.pdf

Typical Applications

  • Residential and Commercial Drain, Waste, and Vent (DWV) Piping
  • Sanitary Sewer and Drain Line Connections
  • Plumbing Renovation and New Construction Projects
  • Below-Grade and Above-Grade Drainage Runs
  • Vent Stack Direction Changes Requiring Smooth Flow Transitions

Why Spears?

Spears PVC DWV fittings are built from durable PVC material and designed with Hub x Hub solvent-weld connections for reliable, leak-resistant joints on drain, waste, and vent systems. The long sweep 90° elbow geometry supports smoother flow characteristics for professional plumbing installations across the full 2" through 6" size range, making Spears a dependable choice for contractors who need consistent, code-compliant DWV components for residential and commercial projects alike.

Product Specs

Product Type:
Elbow
Department:
Plumbing
Product Group:
PVC & CPVC Fittings
Product Material:
PVC
Connection Type:
Hub x Hub
Angle:
90°
Product Subgroup:
Pipe Fittings
Product Size:
2" - 6"

Spears P304-020 – Frequently Asked Questions

1) What sizes does the Spears P304 PVC DWV long sweep 90 degree elbow come in?
Four sizes: 2 inch (P304-020), 3 inch (P304-030), 4 inch (P304-040), and 6 inch (P304-060). All four are hub x hub, so both ends take DWV pipe of that same nominal size solvent welded into the socket.
2) Is a long sweep 90 elbow better than a standard quarter bend for a drain line?
For horizontal drainage and anywhere solids have to keep moving, the long sweep is the one to use. Its wider radius turns the flow gradually instead of snapping it 90 degrees, so there is less turbulence and less flow restriction than a short-radius elbow of the same size. A short quarter bend is fine for vent piping or tight vertical-to-vertical turns where space is the constraint. The Spears P304 is a true 90 degree (1/4 bend) long sweep in PVC.
3) Do the hub ends on the Spears P304 elbow glue on, or do they thread?
They glue. Both ends are solvent weld hub sockets, so the pipe slides into the socket and is joined with PVC primer and cement. No threads, no gaskets, no clamps. If you need a threaded or gasketed transition somewhere in the run, do it with a separate adapter fitting rather than trying to thread into this elbow.
4) Can I use this PVC DWV elbow on a pressure or water supply line?
No. The P304 is a DWV fitting, built for drain, waste, and vent service only. Gravity drainage, sanitary sewer and drain connections, and vent stack direction changes. Pressure water supply needs a pressure-rated PVC or CPVC fitting, which is a different fitting family entirely, so do not substitute this one into a supply run.
5) How many elbows come in a pack of the Spears P304?
Each package is 5 each. For a contractor stocking a truck or a job trailer that is a full set of turns for one bathroom group or a short sewer run, so order package count against how many direction changes your layout has rather than buying singles.
6) Will a PVC DWV elbow hold up buried underground?
PVC does not rust or corrode, which is why it is used for both below-grade and above-grade drainage runs. The P304 is listed for both. Underground the joints still have to be properly primed and cemented, and the trench bedding and support are what keep the fitting from taking point load, not the fitting itself.
7) I am replacing a section of 4 inch DWV line. Which part number do I order?
P304-040 is the 4 inch long sweep 90. It takes 4 inch DWV pipe into both hubs. If your existing run is cast iron or ABS rather than PVC, you will need a transition coupling at each end, since this fitting only accepts solvent welded PVC.
8) Can I use the 2 inch long sweep on a vent stack turn?
Yes. Vent stack direction changes that need a smooth flow transition are one of the listed uses, and the 2 inch P304-020 is the common size for branch vent and stack work. A long sweep on a vent also keeps the turn friendly if that vent ever carries condensate back down.
