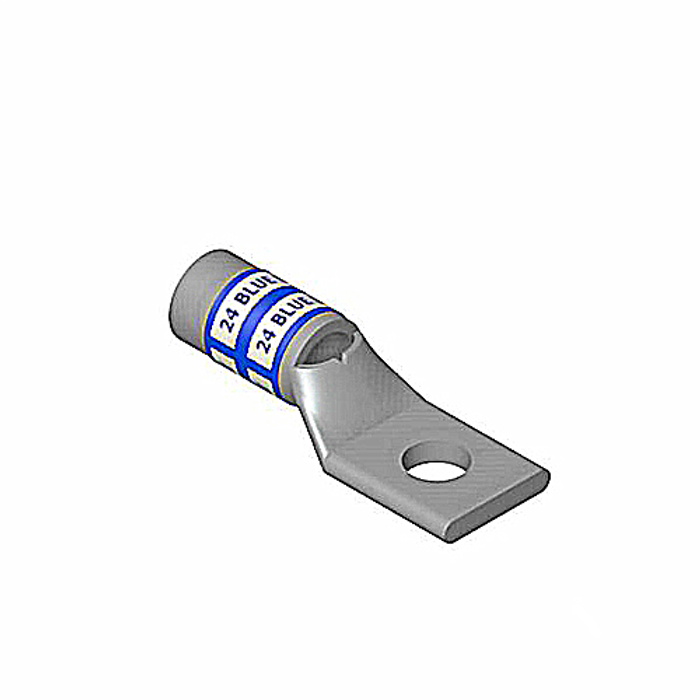

Thomas & Betts Standard Barrel Copper Lug #2 AWG Tin-Plated with Peep Hole

Thomas & Betts Standard Barrel Copper Lug #2 AWG Tin-Plated with Peep Hole

(No reviews yet) Write a Review

Model: 54142-TB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$66.81
$8.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Standard Barrel Copper Lug #2 AWG Tin-Plated with Peep Hole

Professional Electrical Connection Solution

Thomas & Betts delivers reliable electrical connectivity with this standard barrel copper lug designed for #2 AWG wire applications. Featuring tin-plated copper construction with a peep hole for visual connection verification, this single-stud lug provides professional-grade performance for electrical installations requiring secure, long-lasting connections.

Professional Features & Benefits

  • #2 AWG Wire Compatibility: Precisely engineered for #2 AWG conductors, ensuring proper fit and optimal electrical contact for reliable current transfer.
  • Tin-Plated Copper Construction: Combines copper's excellent conductivity with tin plating for enhanced corrosion resistance and extended service life.
  • Peep Hole Design: Allows visual verification of proper wire insertion and connection integrity during installation and inspection.
  • Standard Barrel Configuration: Proven barrel design provides consistent crimping performance and reliable mechanical connection strength.
  • Single Stud Design: Streamlined connection point optimizes installation efficiency while maintaining secure electrical contact.
  • RoHS Compliant: Meets environmental compliance standards for safe use in commercial and industrial applications.

Technical Specifications

  • B Inches: 0.88
  • Barrel Length: Standard
  • Barrel Shape: Standard
  • Department: Electrical
  • Die Code: 33
  • Die Color: Brown
  • E Inches: 0.41
  • F Inches: 0.375
  • Hole Shape: Round
  • Inner Package: 25
  • Marking: Standard
  • Material: Copper
  • Number Of Studs: 1
  • Outer Package: 250
  • Package Height: 3.5
  • Package Length: 12.4
  • Package Width: 6.4
  • Peep Hole: Y
  • Product Finish: Tin-Plated
  • Product Group: Connectors
  • Product Subgroup: Lugs
  • Rohs Compliance: Yes
  • Stud Size: 16-May
  • T B Sold In Uom: Each
  • T B Weight Per Uom: 3.38 lbs. per 100
  • Tongue Angle: Straight
  • Tongue Width: Standard
  • Wire Size: #2 AWG

Professional Applications

  • Electrical Panel Connections
  • Motor Control Centers
  • Distribution Equipment
  • Industrial Control Systems
  • Commercial Electrical Installations
  • Maintenance and Repair Operations

Why Choose Thomas & Betts Quality?

Thomas & Betts copper lugs deliver proven reliability through precision engineering and quality materials. With RoHS compliance and tin-plated finish for corrosion resistance, these connectors provide the durability and performance electrical professionals demand for critical connection applications.

Manufacturer Resources

Product Specs

B Inches:
0.88
Barrel Length:
Standard
Barrel Shape:
Standard
E Inches:
0.41
F Inches:
0.375
Hole Shape:
Round
Inner Package:
25
Marking:
Standard
Number Of Studs:
1
Outer Package:
250
Package Height:
3.5
Package Length:
12.4
Package Width:
6.4
Peep Hole:
Y
Product Group:
Wire Connectors & Terminals
Rohs Compliance:
Yes
Stud Size:
16-May
T B Sold In Uom:
Each
T B Weight Per Uom:
3.38 lbs. per 100
Tongue Angle:
Straight
Tongue Width:
Standard
Wire Size:
#2 AWG
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Product Finish:
Tin-Plated
Product Material:
Copper
Product Die Color:
Brown
Product Die Code:
33
Product Type:
Compression Lug

Thomas & Betts 54142-TB – Frequently Asked Questions

1) What wire size does the Thomas & Betts 54142-TB copper lug take?
The 54142-TB is sized for a single #2 AWG copper conductor. It's a one-hole compression lug, so it terminates one #2 conductor per lug, not doubled conductors. If your feeder is a different gauge, you need the matching lug for that size, because the barrel is drawn for #2 and will not crimp reliably on anything larger or noticeably smaller.
2) What crimp die do I need for the T&B 54142-TB lug?
Die code 33, brown color code. Set your compression tool to the 33 die and match the brown index and the crimp will meet the lug's rating. Using an unmarked or mismatched die is the usual cause of a loose barrel on inspection.
3) Will this lug fit a flat bus bar or breaker pad without spacing problems?
It's a straight tongue with a standard tongue width and a round bolt hole, so the palm lands flat on a bus bar or breaker lug pad with no offset or twist. Published dimensions are B 0.88 in, E 0.41 in and F 0.375 in. If your pad has two bolt holes on centers, this is a one-hole lug and won't span them, you'd want a two-hole tongue instead.
4) How do I verify the conductor is fully seated in a compression lug?
This one has a peep hole in the barrel. You push the stripped #2 conductor in until copper strands show through the inspection hole, then crimp. That gives you and the inspector a visual check that the wire bottomed out before the die was closed, which a closed-barrel lug won't.
5) Is a tin-plated copper lug OK for a panel or motor control center in a damp or industrial space?
Yes. The lug body is copper for conductivity, with a tin plating over it that slows oxidation at the pad and inside the barrel. That's the standard choice for panelboard, MCC and distribution gear terminations where the connection may sit for years before anyone touches it again. It's also RoHS compliant if your facility or specifier requires that.
6) What is the difference between a standard barrel lug and a long barrel lug?
The 54142-TB uses a standard barrel and standard barrel shape, which means one crimp location and a shorter overall body. A long barrel version takes two crimps and is specified where a spec calls for higher pull-out strength or where the terminal sits under vibration. For ordinary panel, distribution and control terminations on #2 copper, the standard barrel is the normal call.
7) How is the 54142-TB copper lug packaged for a larger job?
Sold each, packed 25 to an inner carton and 250 to the outer. For crews terminating a run of #2 feeders that makes it easy to send a 25-count box out with each truck rather than counting singles. Weight works out to 3.38 lbs per 100 pieces.
