Thomas & Betts BH614R SUPER BLUE OLD WORK WALL BOX

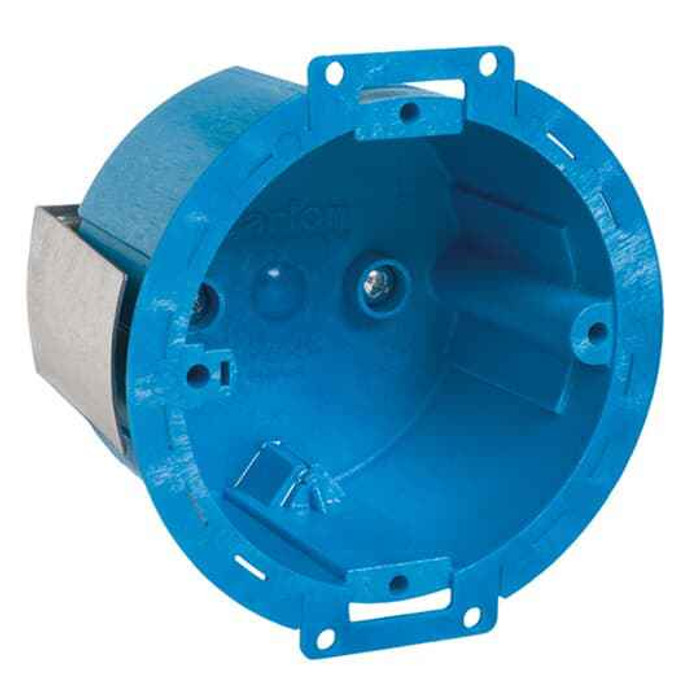

Carlon Super Blue Old Work Ceiling Box Non-Metallic Screw Mount 14.5 Cubic Inch

(No reviews yet) Write a Review

Model: BH614R
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.70
$7.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Super Blue Old Work Ceiling Box

Professional Non-Metallic Electrical Ceiling Box

The Thomas & Betts Super Blue Old Work Ceiling Box delivers reliable ceiling installation performance for retrofit electrical applications. This non-metallic ceiling box provides dependable performance designed for electrical contractors, industrial facilities, and commercial installations, offering the trusted performance and quality that professionals expect from America's established electrical infrastructure manufacturer.

Professional Features & Benefits

Old Work Installation Performance

  • Super Blue Construction - Enhanced visibility and professional identification for electrical contractors during installation
  • 14.5 Cubic Inch Volume - Generous wire capacity for multiple conductor connections and electrical device installations
  • Non-Metallic Construction - Corrosion-resistant material provides long-lasting performance in various environmental conditions
  • Screw Mount Design - Secure attachment method ensures reliable installation in ceiling applications

Professional Installation Benefits

  • Old Work Application - Designed specifically for retrofit installations in existing ceiling structures
  • UL Listed Safety - Meets rigorous electrical safety standards for professional electrical installations
  • Contractor-Friendly Design - Professional features that facilitate efficient installation and long-term reliability

Technical Specifications

Product Type: Ceiling Boxes, Material: Non-Metallic, Mounting Type: Screws, Volume: 14.5 cubic inches, Color: Blue, Department: Electrical, Product Group: Electrical Boxes, Product Subgroup: Electrical Boxes, Standards: UL e11461, Application: Old Work Installation

Installation & Usage

  1. Mark ceiling location and cut appropriate opening for box installation
  2. Insert ceiling box into opening ensuring proper fit and alignment
  3. Secure box using screw mount system to ceiling structure or mounting hardware
  4. Route electrical conductors through appropriate entry points
  5. Make electrical connections following NEC guidelines and local electrical codes
  6. Install electrical device or fixture ensuring proper grounding and connections

Professional Applications

Ideal for:

  • Retrofit Installations - Old work ceiling applications in existing residential and commercial buildings
  • Ceiling Fixtures - Light fixtures, ceiling fans, and electrical devices requiring ceiling mounting
  • Commercial Construction - Office buildings, retail spaces, and commercial facility electrical installations
  • Residential Electrical - Home electrical upgrades, additions, and ceiling fixture installations
  • Industrial Facilities - Manufacturing and warehouse ceiling electrical installations
  • Electrical Contractors - Professional electrical installation and retrofit projects
  • Facility Maintenance - Building maintenance and electrical system upgrades
  • Electrical Infrastructure - Ceiling-mounted electrical distribution and device installations

Non-Metallic Construction Advantage

Thomas & Betts selection of non-metallic materials provides excellent corrosion resistance and electrical insulation properties, making this ceiling box ideal for various environmental conditions while maintaining long-term reliability and safety in electrical applications.

Why Choose Thomas & Betts Quality?

With decades of established experience in electrical infrastructure solutions, Thomas & Betts maintains unwavering commitment to professional quality standards and trusted reliability that electrical contractors and facility managers depend on for critical electrical installations and building infrastructure projects.

Manufacturer Resources

Product Specs

Idea Granular Category Code Igcc :
4448 >> Ceiling box
Number Of Knockouts:
0
Product Group:
Electrical Boxes
Product Type:
Ceiling Boxes
Selling Unit Of Measure:
each
Standards:
UL e11461
Volume:
14.5 in³
Department:
Electrical
Product Subgroup:
Electrical Boxes
Product Color:
Blue
Installation Category:
Screws
Product Material:
Non-Metallic

Carlon BH614R – Frequently Asked Questions

1) Can the Thomas & Betts BH614R Super Blue box be installed in an existing ceiling without opening the drywall?
That's exactly what old work boxes are for. The BH614R Super Blue goes into an existing ceiling through a cut opening, no need to pull the drywall or get at a joist from above. It's secured with screws rather than nails into framing, so the box holds against the ceiling material once it's set. Cut the opening, seat the box, drive the mounting screws, then bring your conductors in and make up the device.
2) How many wires can I put in a 14.5 cubic inch ceiling box?
14.5 cubic inches is the working volume of the Super Blue BH614R, and NEC box fill is what governs the count off that number. 14 AWG counts 2.00 cubic inches per conductor and 12 AWG counts 2.25, with one extra conductor volume for all grounds combined, one for all clamps, and two for a mounted device such as a fixture canopy strap or fan control. Two 14 AWG cables plus grounds plus a device runs about 12.0 cubic inches, so it fits. Three 12 AWG cables with a device pushes past 14.5 and needs a larger box.
3) Can I hang a ceiling fan from the Thomas & Betts BH614R Super Blue box?
No. The BH614R is a non-metallic old work ceiling box for light fixtures and electrical devices. A paddle fan has to hang from a box specifically marked and listed for fan support, and this one is not. For a retrofit fan, order an old work fan-rated ceiling box or a fan brace bar with a fan-rated box, not this one.
4) Does the Super Blue BH614R ceiling box have knockouts for conduit?
No knockouts at all on the BH614R. It's a non-metallic box built for cable entry, so it takes NM cable through its integral entry points rather than accepting a conduit connector or a metal fitting through a punched knockout. If your ceiling run is EMT or flex, you want a metallic box with knockouts instead.
5) Non-metallic or metal ceiling box for a retrofit, which should I use?
Non-metallic, like the BH614R Super Blue, is the usual pick on an old work ceiling running NM cable: the plastic body doesn't corrode, it doesn't need to be bonded to the branch circuit ground, and it screws in from the face without needing framing access. Go metal instead when the wiring method is conduit or armoured cable, when you need knockouts for fittings, or when the box has to support weight the plastic box isn't rated for. The BH614R has no knockouts, which is the clearest tell of where it belongs.
6) What is the part number for the Thomas & Betts Super Blue old work ceiling box, and is it sold individually?
Order it as Thomas & Betts BH614R. It sells each, not by the carton, so a job needing eight ceiling openings is a quantity of eight. The blue body is the Super Blue line marking, which is how crews pick it out of a mixed box of fittings on site.
7) Will the BH614R hold up in a damp basement or an unconditioned warehouse ceiling?
The non-metallic body won't rust or corrode the way a steel box will in humid air, which is the main reason contractors reach for plastic in basements, parking structures, and unheated warehouse space. It is an ordinary indoor outlet box though, not a weatherproof or wet-location enclosure, so keep it out of locations exposed to rain or direct wetting.
