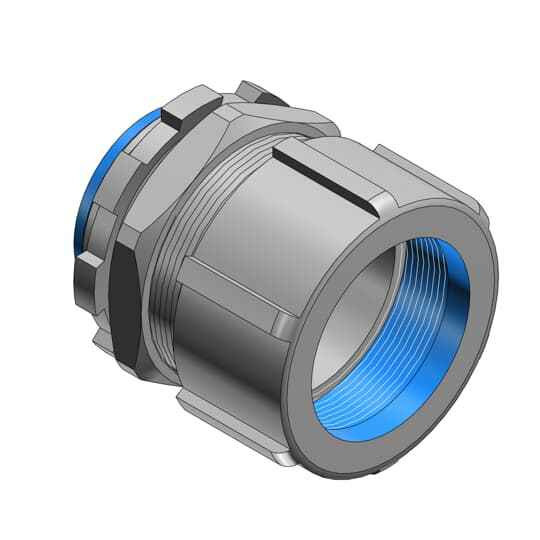

1 INCH RIGID INSUL COMPRESSION CONN
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Conduit & Raceway
- Department:
- Electrical
- Product Subgroup:
- Conduit Fittings
- Product Material:
- Malleable Iron
- Product Type:
- Conduit Connector
Thomas & Betts 8323 – Frequently Asked Questions
1) What conduit sizes does the Thomas & Betts rigid insulated compression connector come in?
Two trade sizes: 3/4 inch (part 8223) and 1 inch (part 8323). Pick the size to match the rigid or IMC conduit run you are terminating, not the knockout, since the connector locknut seats in the standard knockout for that trade size.
2) Do I need to thread the conduit to use this compression connector?
No. It is a threadless compression connector, so it grips unthreaded rigid or IMC conduit with a compression gland and nut. That is the point of it on a retrofit or repair where you have cut conduit in place and cannot get a threader onto the run.
3) Can I use this on EMT instead of rigid conduit?
No. The 8223 and 8323 are rigid conduit compression connectors, sized to the outside diameter of rigid/IMC. EMT of the same trade size is a smaller OD and will not seat properly in the gland, so you want an EMT compression connector instead.
4) What is this Thomas & Betts connector body made of?
Malleable iron. That gives it more mechanical strength than a die-cast zinc or steel set-screw fitting, which matters where the conduit stub takes abuse, such as an exposed run at grade or in a mechanical room.
5) What does the insulated part of the 8223 connector mean for pulling wire?
The connector has an insulated throat, so conductors bear on a smooth insulating surface instead of bare metal as they turn into the box. Useful when you are pulling THHN into a panel or junction box and want to avoid nicking insulation at the entry.
