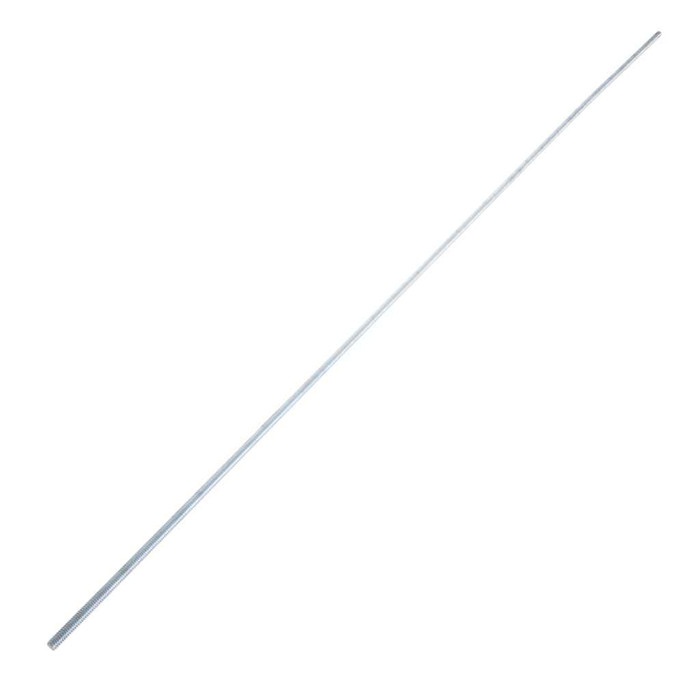

Thread Rod 1-1/4-7 x 10' St-zn (Bundle 1)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Bundle
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Group:
- Hangers, Supports & Fasteners
- Product Subgroup:
- Electrical Fasteners
- Product Type:
- Threaded Rod
Metallics TRS1410 – Frequently Asked Questions
1) What thread size and pitch is the Metallics TRS1410 threaded rod?
The TRS1410 is a 1-1/4-7 threaded rod, meaning 1-1/4 inch diameter with 7 threads per inch, which is the standard UNC coarse pitch for that diameter. Nuts and couplings have to match 1-1/4-7 to thread on.
2) Is 1-1/4-7 threaded rod the right size for hanging conduit or pipe, or is it overkill?
1-1/4 inch is the heavy end of the rod range. Typical electrical and mechanical hanger drops use 1/4, 3/8, or 1/2 inch rod; 1-1/4-7 rod is for heavy structural or large-bore pipe support, anchor bolt fabrication, and equipment tie-downs where the engineer has specified that diameter. If your drawings call out 3/8 or 1/2 inch, order that size rather than this one.
3) How long is each Metallics TRS1410 threaded rod?
Each rod runs 10 feet, threaded full length, so it can be cut down on site to whatever drop length your hangers or strut supports call for.
4) Is the TRS1410 threaded rod zinc plated or plain steel?
Steel with a zinc plating (the "St-zn" in the designation). Zinc plating suits dry indoor runs and normal mechanical rooms; for continuously wet, exterior, or corrosive environments you want a hot dip galvanized or stainless rod instead.
5) Does the Metallics TRS1410 come as a single rod or a bundle?
It ships as a bundle rather than a single loose piece, and the pack type on the TRS1410 is listed as Bundle. If you need one rod for a single hanger drop, a bundled quantity of 1-1/4 inch rod may be more material than the job needs.
6) What hardware do I need to order with 1-1/4 inch threaded rod?
The rod is supplied bare, so plan on separate 1-1/4-7 hex nuts, flat washers, and, where you are joining lengths, 1-1/4-7 rod couplings. All of it has to be the same 1-1/4-7 thread to engage. Beam clamps or anchors sized for 1-1/4 inch rod are also a separate line item.
7) Can 1-1/4-7 steel threaded rod be cut and threaded on site?
Yes. Being fully threaded along its 10 foot length, the TRS1410 can be cut to length anywhere along the rod and still take a nut at the cut end. Dress the cut with a file or run a nut off the end to clean the first threads after cutting.
