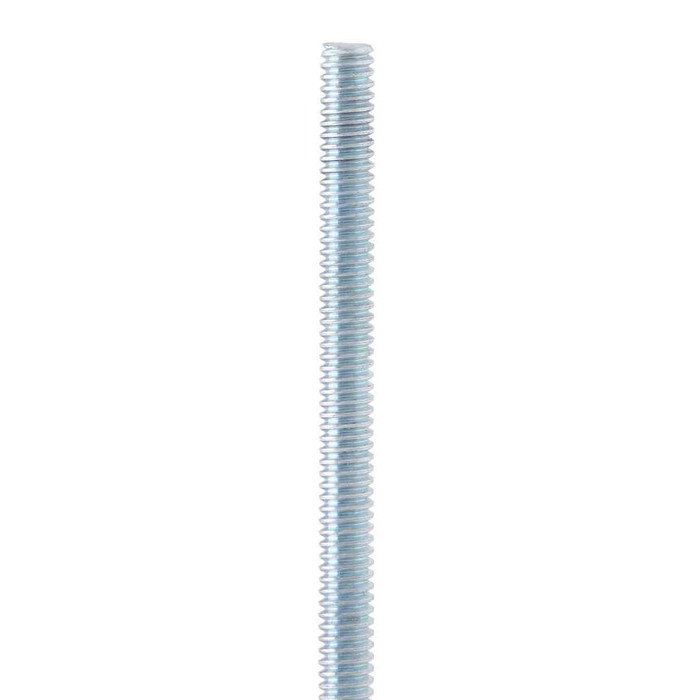

Thread Rod 5/16-18 X 10' St-zn (Bundle 35)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Bundle
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Group:
- Hangers, Supports & Fasteners
- Product Subgroup:
- Electrical Fasteners
- Product Type:
- Threaded Rod
Metallics TRS710 – Frequently Asked Questions
1) What thread size and length is the Metallics TRS710 threaded rod?
The TRS710 is 5/16-18 threaded rod in 10 foot lengths, steel with a zinc finish. 5/16-18 is the standard UNC coarse thread for that diameter, so it mates with off-the-shelf 5/16-18 hex nuts, couplings, rod couplers and spring nuts.
2) How many pieces come in a bundle of Metallics TRS710 threaded rod?
It ships as a bundle of 35 pieces of 10 foot rod, which is 350 linear feet of 5/16-18 rod per bundle. Pack type is bundle, not individual sticks, so plan the order around full-bundle quantities.
3) Is zinc plated threaded rod like the TRS710 okay for outdoor or wet locations?
Zinc plated steel is a dry-interior finish. The TRS710 is steel with zinc plating, which suits indoor hanging of conduit, strut, cable tray and mechanical supports. For exterior, damp, corrosive or coastal work, step up to hot dip galvanized or stainless rod instead.
4) What is 5/16-18 threaded rod normally used for on an electrical job?
5/16 rod is the common light-duty hanger size for electrical work: trapeze supports for conduit runs, strut hangers, cable tray drops, box and fixture supports, and lighting hung from a deck. The TRS710 is catalogued for electrical use. For heavier mechanical loads, 3/8 or 1/2 inch rod is the usual step up.
5) Can I cut Metallics TRS710 rod down to shorter drop lengths?
Yes. It comes as plain 10 foot continuously threaded rod with no fittings, so you cut each drop to length on site with a bandsaw, portaband or rod cutter. Chamfer or chase the cut end so nuts and couplings start cleanly. Nuts, washers, couplings, beam clamps and anchors are not included.
6) What is the Metallics part number to order for 5/16-18 x 10 foot zinc rod?
Order Metallics TRS710. That number covers 5/16-18 by 10 foot steel zinc threaded rod supplied in a 35 piece bundle.
