Topaz Lighting 671S Malleable Iron Set-Screw Rigid Connector

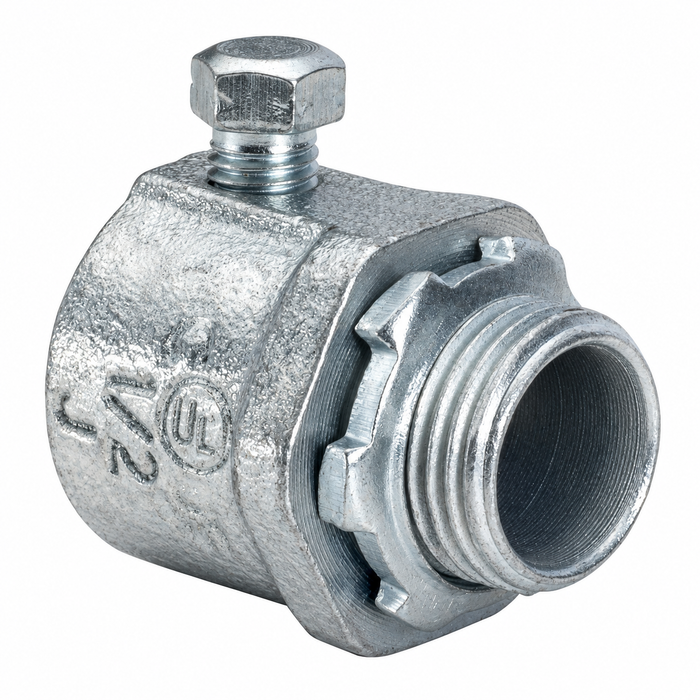

Topaz Lighting Malleable Iron Set-Screw Rigid Connectors deliver secure, concrete-tight bonding between rigid or thin-wall conduit and electrical boxes or enclosures. Available across trade sizes from 1/2" to 2", this threadless, set-screw design creates a fast, tool-assisted mechanical connection without threading conduit ends. Built from high-quality malleable iron and UL Listed, these connectors are rated for both dry and wet locations, offering superior corrosion resistance for demanding job-site conditions.

Key Features

  • Trade Size Range: Available in 1/2" through 2" trade sizes, accommodating a wide variety of rigid conduit system configurations on a single connector platform.
  • Durable Construction: Manufactured from high-quality malleable iron for exceptional strength, impact resistance, and long-term durability in demanding electrical environments.
  • Set-Screw Connection Type: Threadless, set-screw assembly enables fast, tool-assisted installation that creates a secure mechanical connection without threading conduit ends.
  • Concrete-Tight Protection: When taped, these connectors provide concrete-tight protection, making them suitable for embedded and protected conduit runs.
  • Corrosion Resistance: Superior corrosion resistance in wet locations ensures reliable performance in moisture-prone environments and outdoor-adjacent applications.
  • Versatile Location Rating: Suitable for use in both dry and wet locations, bonding rigid and thin-wall conduits to electrical boxes or enclosures across a broad range of job-site conditions.

Certifications & Compliance

  • UL Listed
  • Suitable for Dry Locations
  • Suitable for Wet Locations (with superior corrosion resistance)
  • Concrete-Tight When Taped

Technical Specifications

  • Conduit Type: Rigid/IMC
  • Connection Type: Set Screw
  • Pack Size: 100

Typical Applications

  • Bonding rigid conduit to electrical boxes and enclosures in commercial and industrial installations
  • Dry-location conduit and raceway system terminations
  • Wet-location conduit connections requiring superior corrosion resistance
  • Concrete-encased or embedded conduit runs when taped
  • New construction and renovation electrical rough-in work
  • Industrial and commercial panelboard and enclosure wiring

Why Topaz Lighting?

Topaz Lighting's Malleable Iron Set-Screw Rigid Connectors are built from high-quality malleable iron and carry a UL Listing, ensuring they meet the rigorous standards required for professional electrical installations. Their threadless, set-screw design simplifies installation while delivering concrete-tight, corrosion-resistant performance across the full 1/2" to 2" trade size range. Electrical contractors and installers trust Topaz Lighting for code-compliant fittings that stand up to the demands of both dry and wet location applications.

Product Specs

Product Type:
Connector
Conduit Type:
Rigid/IMC
Connection Type:
Set Screw
Listing:
UL Listed
Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Fittings
Product Material:
Malleable Iron
Pack size (unit):
100
Product Size:
1/2" - 2"

Topaz Lighting 671S – Frequently Asked Questions

1) Can I use the Topaz 671S set-screw connector on rigid conduit without threading the ends?
That's the point of it. The Topaz 671S is a threadless set-screw connector for rigid and IMC conduit, so you cut the conduit, slip it in, and tighten the set screw against the wall of the pipe. No die work, no threading the field end. It lands the conduit on a box or enclosure knockout with a locknut connection.
2) Is a set-screw rigid connector rated for outdoor or wet locations?
Yes. The Topaz 671S series is UL Listed and rated for both dry and wet locations, with the malleable iron body giving corrosion resistance in damp and moisture-prone spots. That covers exterior walls, mechanical rooms and washdown-adjacent runs.
3) Can these set-screw connectors be poured in concrete?
They are concrete-tight when taped. Tape the joint before the pour and the Topaz set-screw rigid connector is suitable for embedded and concrete-encased runs. Untaped, it is not a concrete-tight fitting, so if you skip that step use a fitting that is concrete-tight as supplied.
4) What trade sizes do the Topaz malleable iron set-screw rigid connectors come in?
Trade sizes run 1/2 inch through 2 inch. The orderable sizes are 1/2 inch (671S), 3/4 inch (672S), 1 inch (673S), 1-1/2 inch (675S) and 2 inch (676S), so one part family covers most branch and feeder runs.
5) Is a set-screw connector or a threaded fitting the right choice for rigid conduit?
Threaded couplings and connectors give you a threaded, fully bonded joint and are what most specs call for on exposed rigid runs. The Topaz 671S set-screw type is for when you don't want to thread in the field, cut ends on an existing run, retrofits, tight ceiling work. It still bonds rigid or thin-wall conduit to the box, and it is UL Listed for dry and wet locations. If the drawing specifically calls out threaded rigid terminations, follow the drawing.
6) I need to standardize rigid conduit terminations across a facility, does one part number cover it?
One family does. The Topaz set-screw rigid connector runs 671S through 676S across 1/2 inch to 2 inch, all malleable iron, all UL Listed, all rated dry and wet location. Stocking that range in the 100-piece packs covers branch through feeder terminations on rigid and IMC with a single fitting type and one install method for your crews.
7) How are Topaz 671S connectors packaged, and can I buy just a few?
They are packed 100 per unit. That is a contractor pack, sized for rough-in work where you are landing dozens of terminations on a single job rather than picking up a handful for one repair.
8) Why malleable iron instead of die-cast zinc for a conduit connector?
Malleable iron takes impact and mechanical abuse better than die cast, which matters where conduit gets knocked, on industrial floors, loading areas, exposed plant runs. The Topaz set-screw rigid connectors are malleable iron throughout the 1/2 inch to 2 inch range, and the same material is what gives them their wet-location corrosion resistance.
