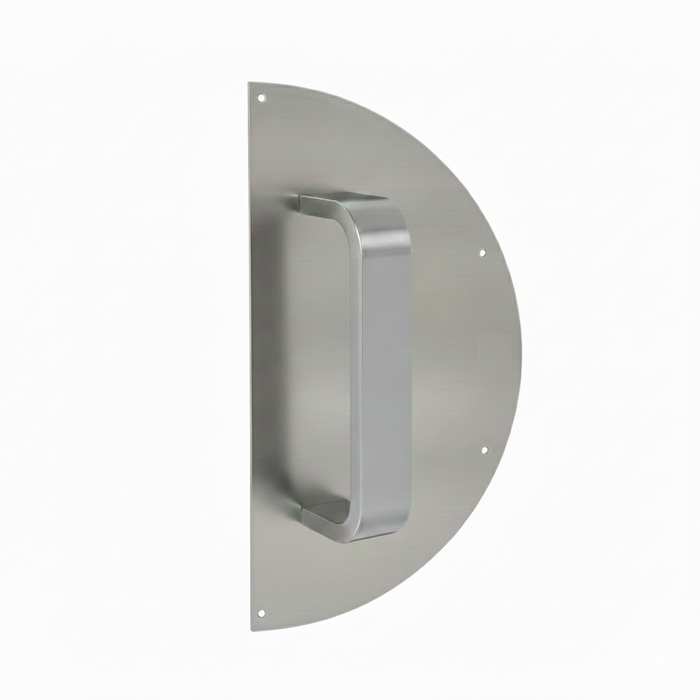

Trimco 1056 Half-Round Pull Plate 8" x 16" with 8" CTC Pull

Total projection is 1-7/8 inches off the door, with 1-1/2 inches of that being open hand clearance behind the grip. That matters where the door swings into a corridor with a clear-width requirement, or where the leaf sits close to a return wall or an adjacent door in a pair.

When the outside trim has to work with an exit device, the Detex P/PN Series pull plate is made specifically as pull trim for Detex Value Series exit devices, so it matches that device's outside prep. The Trimco 1056 is a plate and grip assembly for a standard pull-side opening rather than device-specific exit trim. On an opening with a Detex Value Series device, specify the P/PN pull plate.

The Ives 8302 heavy duty pull plate is built for through bolt mounting, where the pull hardware is bolted through the door rather than surface fastened only. The Trimco 1056 is a heavy duty assembly as well, pairing an 8 inch by 16 inch half round plate with a 1 inch by 3/8 inch straight pull on 8 inch centers. Both are heavy duty grade parts, so the deciding factor is the door prep: if the opening is already drilled for through bolts, the 8302 matches that prep.

The Ives 8303 heavy duty pull plate is offered in 8 inch or 10 inch center-to-center mounting, so it covers a 10 inch prep. The Trimco 1056 carries an 8 inch center-to-center pull only. For an opening already bored on 10 inch centers, the 8303 in the 10 inch configuration lines up without redrilling the door.

Standard plate is 8 x 16 inches with a half-round top edge, pencil beveled on all four sides. Trimco will make the plate in custom sizes and custom finishes, so an odd stile width or a taller plate to cover existing fastener holes can be ordered rather than worked around.

Same half-round plate, different hardware on it. The 1041 is the plain half-round push plate; the 1056 takes that same 8 x 16 inch plate and adds the 1139 Series bar grip to make it a pull. On a push/pull pair of leaves you'd use the plate alone on the push side and the 1056 on the pull side.

Eight standard finishes: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 626 satin chrome, 629 bright stainless, and 630 satin stainless. For matching an existing building standard, 630 is the usual commercial default and 626 the usual match to chrome levers. Custom finishes can be run if none of the eight match the rest of the openings.

It's built as heavy duty commercial trim: .050 inch thick stainless steel, brass or bronze plate, not a stamped light gauge plate. That is the material spec you want on a school corridor, hospital wing, or retail entry that sees constant hand traffic.

The Ives 8303 is the closest cross-brand equivalent, a heavy duty pull plate offered with 8 or 10 inch center-to-center mounting, so it matches the 1056's 8 inch CTC grip spacing. The Ives 8302 is the heavy duty plate with through bolt mounting, which is what you want on an abused door where sex bolts through the leaf beat screws. The Trimco is the one with the half-round plate profile if the look is part of the spec.

The Emtek Modern and Emtek Knoxville push and pull plates are decorative pattern families, and the Emtek Petal set is lost wax cast bronze. The Trimco 1056 is a commercial heavy duty assembly: a .050 inch stainless steel, brass or bronze plate pencil beveled on four sides with an ADA compliant 1 inch by 3/8 inch straight pull on 8 inch centers, specified for commercial and industrial buildings, government and military facilities, retail, hospitality and multifamily. For a residential or boutique interior door the Emtek styles read as decorative trim; for a commercial traffic door the 1056 is the commercial specification.

The Delaney 3-1/2 inch by 15 inch push plate and the Delaney 4 inch by 16 inch push plate are flat plates for the push side of the door, with no pull attached. The pull versions in the same sizes are the Delaney 3-1/2 inch by 15 inch pull plate and the Delaney 4 inch by 16 inch pull plate. The Trimco 1056 is a plate with a grip already mounted to it, combining a half round plate with a bar pull on 8 inch centers, so it serves the pull side of the opening.

Emtek offers push and pull plates as matched sets in the Knoxville, Modern and Petal styles, so both sides of a door come from one family. The Trimco 1056 is a pull side assembly combining a half round plate with a bar pull, and its companion push plate is the 1041 half round plate that forms its base. On a commercial opening, matching the 1056 to the plain 1041 plate on the push side holds the same half round profile across the door.

The Trimco 1056 is ADA compliant and carries a 1 inch by 3/8 inch straight pull with 1-1/2 inch clearance and 1-7/8 inch projection, which is the grip geometry an accessible opening is checked against. Peer plates such as the Delaney 4 inch by 16 inch pull plate and the Ives 8303 are pull plates in the same class, but any substitution on an accessible route should be confirmed against the grip dimensions your drawing calls for before the order is placed.

Yes, Trimco publishes template 11400 covering the 1041-4 and 1056-4, along with the heavy duty pull plates cut sheet. Pull that before the door shop preps, because the grip mounts on 8 inch centers and the fastener locations have to be bored with the plate, not after it.
