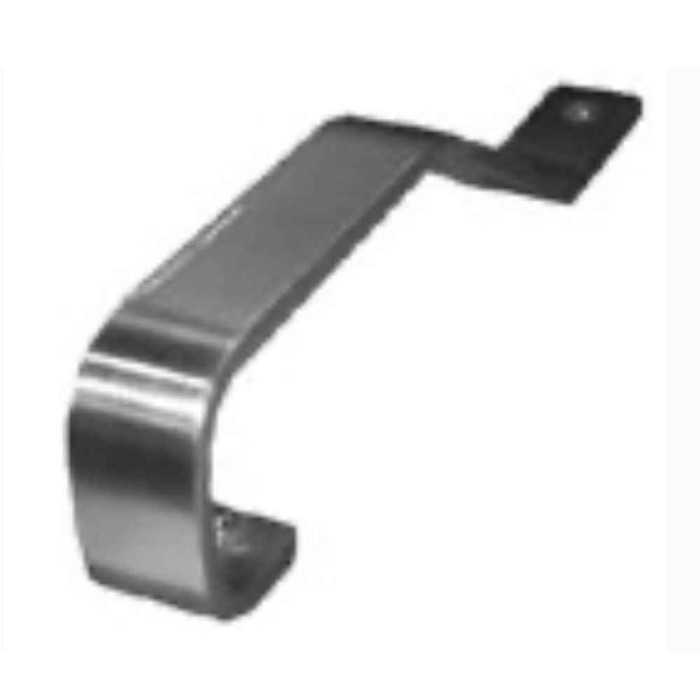

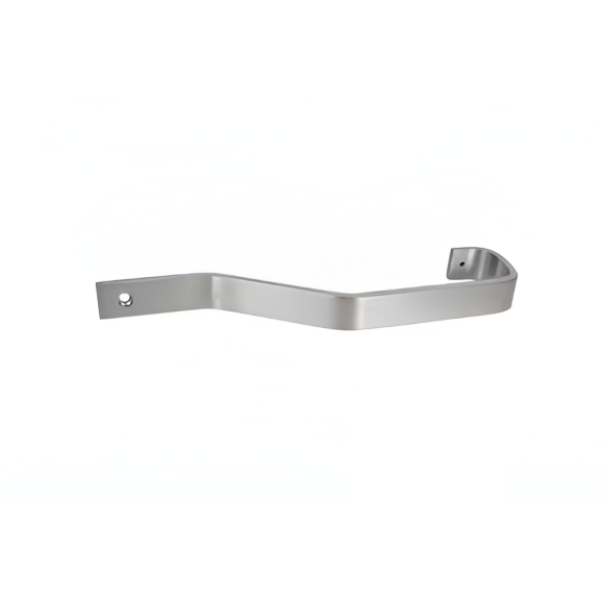

Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC

Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC

(No reviews yet) Write a Review

Model: TRI-1633-1.630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$351.75
$265.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO 1633-1 LEVER HANDLE PROTECTOR 3/8" X 1-1/2" X 14" CTC OVERVIEW

1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC. Lever Handle Protector 3/8" x 1-1/2" x 14" CTC.

Trimco’s 1630 Series Push Bars & Protectors is a family of highly durable door hardware trim with a multitude of applications. From heavy duty push bar to rugged protection device for panic hardware and locks against rolling carts and other vehicles, the 1630 Series is manufactured from 1-1/2″x3/8″ material for lasting durability. Made in the USA from stainless steel, bronze or brass.

Buy the TRIMCO 1630 Series today to add a stylish hardware for your home!

TRIMCO 1633-1 LEVER HANDLE PROTECTOR PRODUCT FEATURES

  • Manufactured in the United States from rugged 1-1/2″x3/8″ stainless steel, bronze or brass.
  • Multiple applications from heavy duty push bar to protection device for panic hardware and locksets.
  • Easy installation and back-to-back options available.
  • Offered in most architectural finishes.
  • Must specify center-to-center.
  • All Push Bar Sets and Push/Pull Sets are priced up to 34"" ctc.

TRIMCO 1633-1 SERIES COLOR VARIATIONS

Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC Bright Brass (605)
Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC Satin Brass (606)
Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC Oil Rubbed Bronze (613)
Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC Dark Oxidized Satin Bronze (613E)
Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC Matte Black (622)
Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC Bright Stainless Steel (629)
Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC Satin Stainless Steel (630)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Manufacturing Facilities
  • Multifamily & Mixed-Use
  • Public Buildings & Facilities
  • Schools

TRIMCO 1630 SERIES COLLECTION

Trimco 1630 Single Push Bar 3/8" x 2-1/2"
Trimco 1630B Single Push Bar 3/8" x 2-1/2" BTB (Pair)
Trimco 1633 Single Push Bar 3/8" x 2-1/2"
Trimco 1633-1 Lever Handle Protector 3/8" x 1-1/2" x 14" CTC
Trimco 1637 Push Bar 3/8" x 1-1/4"

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Parts And Accessories
Subcategory:
Door Pulls, Push and Pull Plates
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
(CTC) Center-to-Center:
14"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Trimco TRI-1633-1.630 – Frequently Asked Questions

1) What does the Trimco 1633-1 lever handle protector actually do on a door?
It mounts across the face of the door and stands off from it, so carts, gurneys, and pallet jacks hit the bar instead of the lever or panic hardware behind it. The 1630 Series is used both as a heavy duty push bar and as a protection device for panic hardware and locksets. The 1633-1 is the version built specifically to shield a lever handle.
2) How thick and wide is the Trimco 1633-1 bar stock?
The bar is 1-1/2 inches by 3/8 inch solid stock, 14 inches center-to-center between the mounting posts. That 3/8 inch thickness is what lets it take repeated cart strikes without deforming. Worth checking the 1-1/2 inch width against your lever escutcheon or exit device trim so the bar clears whatever it is protecting.
3) What finishes does the Trimco 1633-1 come in for matching existing door hardware?
Seven finishes: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 629 bright stainless steel, and 630 satin stainless steel. For a building already standardized on 630 satin stainless, which is the most common commercial spec, that finish is available and will sit next to existing push plates and pulls without standing out.
4) Is the Trimco 1633-1 stainless steel or brass?
Both, depending on finish. The 1630 Series is made in the USA from stainless steel, bronze, or brass. The 629 and 630 options are stainless; 605 and 606 are brass; 613 and 613E are bronze. If the door is on an exterior or wash-down opening, the stainless finishes are the material to pick.
5) Can I mount a Trimco 1633-1 back to back with a push bar on the other side of the door?
Back-to-back mounting is offered on the 1630 Series, so a protector on the pull side can be through-bolted against a bar on the push side. That is the usual approach on a high-traffic swing door where both faces take cart contact. Back-to-back is a separate ordering configuration, so specify it when you place the order rather than assuming the single-side 1633-1 covers it.
6) What is the difference between the Trimco 1633-1 and the other bars in the 1630 Series?
The 1633-1 is the lever handle protector, 1-1/2 by 3/8 inch stock at 14 inch CTC. The 1630 and 1633 single push bars use wider 2-1/2 inch by 3/8 inch stock and are push bars first. The 1637 is a slimmer 1-1/4 by 3/8 inch push bar. Pick the 1633-1 when the job is shielding a lever or exit device trim; pick a 1630, 1633, or 1637 when you want a push bar as the operating hardware.
7) Is the Trimco 1633-1 a replacement part I can order to repair an existing door, or is it new-install only?
It is catalogued as a replacement part, so it is ordered both as a one-off repair for a damaged or missing protector and as new trim on a fresh opening. Since the only thing you specify is finish and the 14 inch center-to-center is fixed, matching an existing installation comes down to confirming your two mounting holes are 14 inches apart.
