Trine Trine 005RS Series - Fail-Safe, Light Commercial Electric Strike 3-1/2” x 1-3/8” Faceplate TRN-005RS

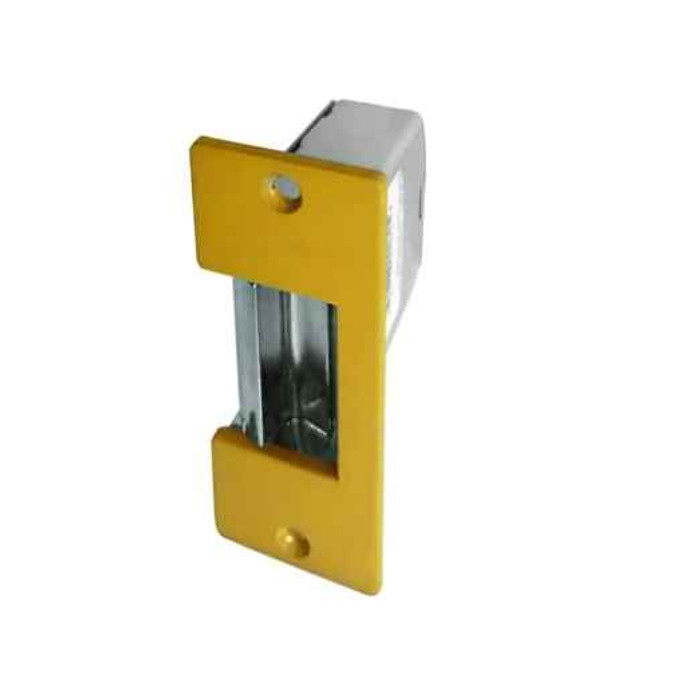

Trine 005RS Series - Fail-Safe, Light Commercial Electric Strike 3-1/2” x 1-3/8” Faceplate

(No reviews yet) Write a Review

Model: 005RS-24DC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.00
$81.94
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

00/01 Series Electric Strikes

Light Commercial Strikes

Trine 005
For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.

Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”

Available Finishes: 005 (Brass Powder Coated) -- 005C (Satin Chrome or - BHMA652)
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

Voltage Amps Ohms (Ω) Duty Sound Wire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

Downloadable content:

Manufacturer Resources

Product Specs

Series:
5
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Safe
Face Plate:
3-1/2"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 005RS-24DC – Frequently Asked Questions

1) What size cutout does the Trine 005 strike need in the jamb?
The faceplate is 3-1/2 by 1-3/8 inches with a 2-3/4 inch mortise backset, and the cavity behind it is 1/2 inch deep by 9/16 inch wide by 1-1/2 inches high. Because it was designed as a replacement in wood jambs, that small footprint is the point: it goes back into an existing prep rather than needing a full ANSI 4-7/8 inch cut. If your frame is already prepped for a 4-7/8 by 1-1/4 inch ANSI faceplate, this plate will not cover it and you want an ANSI-prep strike such as the Dortronics 3300.
2) The Trine 005RS will not work in my aluminum storefront jamb - what should I use instead?
The 005RS is built for replacement installations in wood jambs and iron gates with a 3-1/2 inch by 1-3/8 inch faceplate, which is not a storefront cutout. For aluminum jambs, the Adams Rite 7100 Series uses a flat 1-1/4 inch by 4-7/8 inch faceplate sized for that frame, and the Adams Rite 7160 uses the same 1-1/4 inch by 4-7/8 inch faceplate. If the same job also has hollow metal or wood openings, the Adams Rite 7170 carries that faceplate size for hollow metal and wood jambs, which keeps the faceplate appearance consistent across the entrance.
3) What is a fail-safe alternative to the Trine 005RS when the opening needs a fire label?
The Trine 005RS is a fail-safe light commercial electric strike that is not fire rated, so it should not go into a labeled opening. The Hager 2930 is a fire rated Grade 1 electric strike for cylindrical and mortise locks with field reversible fail safe/fail secure operation, so it can be set to fail safe and still sit in a fire rated frame. The Camden CX-ED1410 and CX-ED1420 'Universal' Grade 1 ANSI strikes are also fire rated. Note that on a fire rated opening the strike normally has to be fail secure to keep the latch held, so confirm the function the code official will accept before ordering.
4) Which electric strike lets me decide fail safe or fail secure in the field instead of ordering it one way?
The Trine 005RS is ordered as fail safe; the function is set by the model number, not switchable at the door. If you want to make that call on site, the Hager 2925 is an electric strike with a 5/8 inch latch and field reversible fail safe/fail secure operation, and the Hager 2928 offers the same field reversible function. For exit device openings the Hager 2945 rim exit strike is field selectable with a latchbolt monitor. Field selectable function is useful when you are buying for several openings and the egress and access control decisions are not final yet.
5) I need a Grade 1 heavy duty electric strike rather than a light commercial one - what are my options?
The Trine 005RS is a light commercial strike for replacement work in wood jambs and iron gates. For a high traffic or abuse prone opening, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, and the Von Duprin 4211 is a Grade 1 heavy duty strike for cylindrical locks with 12/24 VDC field selectable operation. The Von Duprin 6400 is a Grade 1 heavy duty modular strike that handles either mortise or cylindrical locks. Heavier strikes generally require a deeper frame cutout than a light commercial replacement strike, so verify the prep before committing.
6) Is the Trine 005RS suitable for an exterior gate, or is there a better choice?
The 005RS is described for use in wood jambs and iron gates but is not outdoor rated, so an exposed gate is outside what it is built for. The Camden CX-ED1959 Series is an outdoor rated electric gate strike made for that condition. For gate work, the outdoor rating is the deciding spec, not the faceplate size.
7) Which electric strikes look like a Trine 005RS substitute but will not work on a cylindrical latch opening?
Several strikes in the same family are cut for a different latch entirely. The SDC 30-4 Series is a rim mount strike for a 3/4 inch Pullman latchbolt, which is exit device hardware, not a bored cylindrical latch. The Hager 2945 is a rim exit strike, and the HES Folger Adam 310-4-2 is a complete strike pac for surface vertical rods. The RCI 15BS is built for a special offset latch entry. The Trine 005RS is used with bored cylindrical locksets having up to 5/8 inch throw, so none of those are drop in swaps for it.
8) I need the access control system to know whether the door actually latched - which strike gives me that?
The Trine 005RS is a fail-safe strike without a monitoring output. If you need latch status back at the panel, the Dortronics 3300 Series includes a latch bolt sensing switch, runs 12/24 VDC, and uses a strike plate for ANSI prep at 4-7/8 inch by 1-1/4 inch. The Hager 2945 rim exit strike includes a latchbolt monitor, and the Camden CX-ED1799L-8 is a dual monitor Grade 1 strike. Monitoring requires extra conductors to the frame, so plan the wire count before the door is prepped.
9) Is there an electric strike that avoids cutting the frame the way the Trine 005RS requires?
The Trine 005RS is a replacement strike that seats in a mortised cavity in a wood jamb or iron gate. When you cannot cut the existing frame, the Locknetics NC450 is a no cut electric strike built for that situation. If cutting is acceptable but you want heavier hardware, the Locknetics MDS100 and MS100 are heavy duty strikes in the same family. Retrofit choice usually comes down to whether the existing prep can be enlarged without replacing the frame.
10) My opening has a mortise lock, not a cylindrical lockset - is the Trine 005RS still the right strike?
The 005RS is described for use with bored cylindrical locksets having up to 5/8 inch throw. For a true mortise lock, the Securitron MUNL Series Mortise UnLatch is a Grade 1 fire rated strike made for mortise locks, and the Von Duprin 6210 is a Grade 1 heavy duty strike for mortise locks, 24 VDC fail-secure, UL 10C fire rated. The Von Duprin 6400 is a Grade 1 modular strike that serves either mortise or cylindrical locks. Confirm the latch and deadlatch geometry of the mortise lock before selecting.
11) My latchbolt throw is 3/4 inch - can I still use the Trine 005RS?
No. The 005RS is used with bored cylindrical locksets having up to 5/8 inch throw, based on a 1/8 inch door gap, so a longer latch will not clear the keeper. The HES Folger Adam 310-1(X) is an electric strike body for 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts and is Grade 1 and fire rated. The Rockwood double door strike also uses a 3/4 keeper. Measure the actual latch projection with the door closed before ordering.
12) Will the Trine 005 electric strike work with a mortise lock?
The 005 covers mortise or cylindrical lock types, but the sizing that matters is the bolt: up to 5/8 inch throw on a 1/8 inch gap, into a keeper cavity 1/2 inch deep by 9/16 inch wide by 1-1/2 inches high. A mortise lock with a deadlatch plunger and a taller or deeper bolt won't seat in that cavity. If you're strictly on mortise locks, the Securitron MUNL mortise unlatch strike or the Von Duprin 6210 for mortise locks are purpose-built for that.
13) Do I need to specify handing on the Trine 005 electric strike?
No handing to specify. The 00 Series locking mechanism is non-handed, so the same strike works on a left or right hand opening. What you do have to pick is voltage (12 VDC or 24 VDC) and finish, either brass powder coated or 626 satin chrome.
14) How much current does a 12 VDC Trine 005 electric strike draw, and can it stay energized all day?
At 12 VDC it draws 0.40 amps across 30 ohms; at 24 VDC it's 0.19 amps across 125 ohms. Both DC configurations are continuous duty and silent, so a fail-safe 005RS can sit energized (locked) all day without cooking, which is exactly what fail-safe operation requires. The AC configurations in the 00 Series are intermittent duty and buzz, which is another reason the RS fail-safe option is DC only. Size your power supply for the continuous draw plus everything else on the circuit.
15) Which wires do I land on a Trine 005 electric strike?
Wire colors follow the voltage: red/white for 12 VDC and black/white for 24 VDC. The other pairs in the 00 Series are black for the 8-16VAC/4-6VDC configuration and red for 24AC. Match the pair to the supply you're feeding it, since the coil resistance differs (30 ohms at 12 VDC, 125 ohms at 24 VDC) and this is not a dual-voltage strike you can flip in the field.
16) How much force will a Trine 005 strike hold, and how long does it last?
1000 lbs holding force and 500,000 life cycles. There's only one moving part in the locking mechanism, plus a heavy duty latch spring. That's a light commercial rating: fine for an interior office door, a stockroom, or a gate on a wood post. For a high-traffic main entrance or anywhere you need Grade 1, step up to something like the Alarm Controls AES-100 Grade 1 heavy duty strike or the Locknetics MDS100.
17) Can I mount a Trine 005 electric strike on an outdoor gate?
The 005 is listed for iron gates as a replacement install, but it is not outdoor rated, so it belongs on a gate that's covered or otherwise out of the weather. For an exposed exterior gate, the Camden CX-ED1959 Series is an outdoor rated gate strike.
18) What's the difference between a fail-safe and a fail-secure electric strike, and which do I want?
Fail-safe unlocks when power drops; fail-secure stays locked. The Trine 005RS is fail-safe, so it's for openings where people must be able to get through in a power outage, and it draws current the whole time the door is locked. Fail-secure suits a stockroom or exterior door you want held closed regardless of power, and it only draws current during the release. If you want to decide in the field rather than at the order form, the Hager 2925 and 2928 are field reversible fail safe/secure.
19) What is a comparable 12/24 VDC electric strike to the Trine 005RS?
The Trine 005RS is offered in 12 VDC and 24 VDC, ordered as separate voltages. Peers that take either voltage in one part include the SDC 15 Series with 12/24 VDC operation and a 5/8 inch latchbolt, the Dortronics 3300 Series at 12/24 VDC, and the Von Duprin 4211 with 12/24 VDC field selectable operation. A dual voltage strike is convenient when the power supply for the opening has not been specified yet.
20) What electric strike works with a 5/8 inch latchbolt like the Trine 005RS does?
The Trine 005RS is used with bored cylindrical locksets having up to 5/8 inch throw, based on a 1/8 inch door gap. Other strikes cut for that same latch projection include the SDC 15 Series with 12/24 VDC operation, the SDC 45F fire rated strike with a radius corner faceplate, the Hager 2925 with a 5/8 inch latch, and the Adams Rite 7240 fire rated strike for cylindrical locksets with 5/8 inch latchbolt projection. If your latch is shorter, the SDC 25 Series is built for a 1/2 inch latchbolt instead.
21) I am standardizing electric strikes across a building with mixed frame preps - which one covers the most openings?
The Trine 005RS is one faceplate size, 3-1/2 inch by 1-3/8 inch, for replacement work in wood jambs and iron gates. If you want a single part number that adapts to varied preps, the Camden CX-ED1689L-4 is a fire rated 'Universal' low profile strike supplied with four faceplates, and the Camden CX-ED1799L-8 is a Grade 1 dual monitor fire rated strike supplied with eight faceplates. The Von Duprin 6400 is a Grade 1 modular strike that covers mortise or cylindrical locks. Multi faceplate kits let one stocked SKU serve frames that would otherwise need separate orders.
22) I need a strike for a pair of doors, not a single opening - what should I look at instead of the Trine 005RS?
The Trine 005RS is a single strike for a wood jamb or iron gate replacement. For a pair, the Rockwood electric strike for double doors uses a 3/4 keeper and is a Grade 1 fire rated unit in the 310-1 Series. Double door applications turn on the inactive leaf and the keeper depth rather than on the jamb faceplate size.
23) What finish should I order to match the other hardware in my building?
Two finishes: 626 satin chrome (BHMA 652 on the Trine designation, sold as the 005C) and brass powder coated. Satin chrome is the one that lines up with 626/US26D hardware, which is the usual commercial standard on levers and closers. Both are offered in 12 VDC and 24 VDC.
