Trine 005 Series - Fail-Secure...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$87.00
$74.76

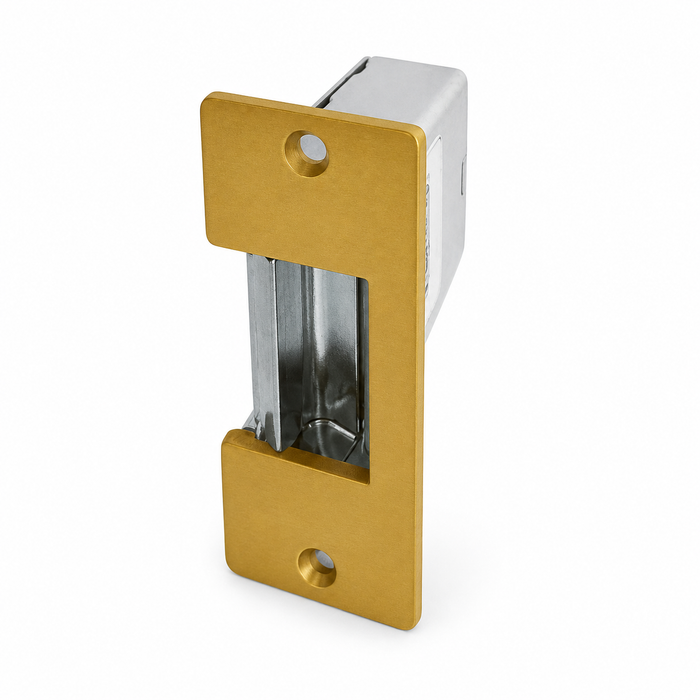

Trine 005 Series - Fail-Secure, Light Commercial Electric Strike 3-1/2” x 1-3/8” Faceplate

Trine 005 Series - Fail-Secure, Light Commercial Electric Strike 3-1/2” x 1-3/8” Faceplate

(No reviews yet) Write a Review

Model: 005C-24AC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.00
$74.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

00/01 Series Electric Strikes

Light Commercial Strikes

Trine 005
For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.

Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”

Available Finishes: 005 (Brass Powder Coated) -- 005C (Satin Chrome or - BHMA652)
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

Voltage Amps Ohms (Ω) Duty Sound Wire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

Downloadable content:

Manufacturer Resources

Product Specs

Series:
5
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Secure
Face Plate:
3-1/2"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 005C-24AC – Frequently Asked Questions

1) Will the Trine 005 electric strike work in a wood door jamb?
Wood jambs are exactly what the 005 is built for. Trine lists it for replacement installations in wood jambs and iron gates, with a 3-1/2 x 1-3/8 inch faceplate and a mortise backset of 2-3/4 inches. The cavity it needs cut is 1/2 inch deep, 9/16 inch wide and 1-1/2 inches high. If your opening is an aluminum jamb, this is the wrong strike, look at the Adams Rite 7100 or 7160, both of which are built for aluminum jambs.
2) Will a Trine 005 strike work with my cylindrical lockset latch?
It takes bored cylindrical locksets with up to a 5/8 inch latch throw, figured on a 1/8 inch door gap. Trine also lists the 005 as suiting mortise or cylindrical locks. If your latch throws more than 5/8 inch, this keeper will not capture it cleanly, the HES Folger Adam 310-1(X) body handles 1/2, 5/8 or 3/4 inch throw latchbolts.
3) Does the Trine 005 stay locked or unlocked when the power goes out?
Fail-secure is the standard action here: the door stays locked with no power and unlocks when power is applied. That is the configuration most access control jobs want on an exterior or egress-controlled opening, since a power loss does not leave the opening free. Trine offers a fail-safe version by adding RS to the model number, but only on DC. If you want the choice made in the field instead, the Hager 2925 and 2928 are field reversible between fail safe and fail secure.
4) What voltage do I need to order the Trine 005 electric strike in?
Five voltage builds are offered: 8-16VAC/4-6VDC, 12VAC, 12VDC, 24VAC and 24VDC. The choice decides how it sounds and how long it can stay energized. The 12VDC coil draws 0.40 amps at 30 ohms and is silent, continuous duty. 24VDC draws 0.19 amps at 125 ohms, also silent and continuous. The AC builds buzz and are intermittent duty only: 24VAC pulls 1.40 amps at 4.7 ohms, and the 8-16VAC/4-6VDC unit pulls 1.3 to 2.7 amps at 1.4 ohms. If the strike will be held unlocked for any length of time, order DC.
5) I am replacing an old strike in a wood jamb, will the Trine 005 drop into the existing cutout?
The 005 is sold specifically for replacement installations in wood jambs, and it works out to a 3-1/2 x 1-3/8 inch faceplate with a 2-3/4 inch mortise backset and a cavity 1/2 inch deep by 9/16 inch wide by 1-1/2 inches high. Measure what is in the jamb now against those numbers. If your existing cutout does not match and you would rather not recut the jamb, the Locknetics NC450 is a no cut electric strike.
6) Will the Trine 005 fit an ANSI 4-7/8 inch strike prep?
No. The 005 faceplate is 3-1/2 x 1-3/8 inches, which is not the 4-7/8 x 1-1/4 inch ANSI prep. For a door frame already cut to ANSI, look at the Dortronics 3300, which uses a 4-7/8 x 1-1/4 inch ANSI prep strike plate, or the Adams Rite 7170 for hollow metal and wood jambs with the same 1-1/4 x 4-7/8 inch faceplate.
7) What is a fire-rated alternative to the Trine 005 electric strike?
The Trine 005 carries no fire rating, so it should not go in a rated opening. For a rated door with a cylindrical lockset, the Adams Rite 7240 is a fire-rated electric strike for cylindrical locksets with 5/8 inch latchbolt projection, which matches the up-to-5/8 inch throw range the 005 is designed around. The Hager 2930 is another fire-rated option that accepts both cylindrical and mortise locks. Both are the direction to go when the opening is a rated door assembly.
8) Which electric strikes are alternatives to the Trine 005 for a gate installation?
The Trine 005 is used in replacement installations in wood jambs and iron gates, but it is not outdoor rated. For an exposed gate, the Camden CX-ED1959 series is an outdoor rated electric gate strike, which is the better choice when the strike sees weather rather than a covered gate or interior jamb.
9) The Trine 005 is fail-secure. What electric strike unlocks on power loss instead?
The Trine 005 is a fail-secure strike, which keeps the door locked when power drops. When the opening needs fail-safe behavior, or when the installer wants to decide in the field, the Hager 2925 has field reversible fail safe/fail secure operation with a 5/8 inch latch, and the Hager 2928 offers the same field reversible function. The Hager 2945 is a rim exit strike with field selectable fail safe/fail secure plus a latchbolt monitor for openings with an exit device rather than a bored lockset.
10) What is a Grade 1 heavy duty electric strike to use instead of the Trine 005 on a high-traffic opening?
The Trine 005 is a light commercial strike for replacement work in wood jambs and iron gates. On an opening that sees institutional traffic, the Von Duprin 4211 is a Grade 1 heavy duty electric strike for cylindrical locks with 12/24 VDC field-selectable operation, and the Von Duprin 6400 is a Grade 1 heavy duty modular fail-secure strike that takes mortise or cylindrical locks in satin stainless steel. The Alarm Controls AES-100 is another Grade 1 heavy duty strike. All three sit above the 005 in duty class for facilities standardizing on Grade 1.
11) The Trine 005 will not fit an aluminum storefront jamb. What electric strike does?
The Trine 005 has a 3-1/2 inch x 1-3/8 inch faceplate with a 2-3/4 inch mortise backset, cut for wood jambs and iron gates, which is not a narrow aluminum stile prep. For aluminum jambs, the Adams Rite 7100 uses a flat 1-1/4 inch x 4-7/8 inch faceplate and the Adams Rite 7160 uses the same 1-1/4 inch x 4-7/8 inch faceplate footprint. The Adams Rite 7170 is the hollow metal and wood jamb version of that same faceplate size if the glass front job also has metal frames.
12) The lockset has a 1/2 inch latchbolt, not 5/8 inch. Is the Trine 005 still right?
The Trine 005 is built for bored cylindrical locksets having up to 5/8 inch throw based on a 1/8 inch door gap, so a shorter latch falls inside that range but a purpose-built keeper is often the cleaner match. The SDC 25 Series is an electric strike specified for 1/2 inch latchbolt compatibility. For a 3/4 inch throw, the HES Folger Adam 310-1(X) strike body covers 1/2 inch, 5/8 inch, and 3/4 inch throw latchbolts, which is outside what the 005 is designed for.
13) The door has a surface vertical rod exit device, not a cylindrical lockset. What replaces the Trine 005 there?
The Trine 005 accepts bored cylindrical locksets with up to 5/8 inch throw and is not an exit device strike. For surface vertical rods, the HES Folger Adam 310-4-2 is a complete Grade 1 electric strike pac built for that application. For a rim exit device with a 3/4 inch Pullman latchbolt, the SDC 30-4 Series is a rim mount stainless steel electric strike. Confirm the exit device type before ordering either.
14) Is there an electric strike that avoids cutting the jamb the way the Trine 005 mortise prep does?
The Trine 005 requires a mortise prep with a 2-3/4 inch backset and a cavity 1/2 inch deep, 9/16 inch wide, and 1-1/2 inch high. When cutting the frame is not an option, the Locknetics NC450 is a no cut electric strike. The Camden CX-ED1689L-4 is a fire rated low profile universal strike shipped with four faceplates, which is the route when one part has to cover several different existing preps.
15) Do I have to specify handing when ordering a Trine 005 strike?
No handing to specify. The 00 Series locking mechanism is non-handed, so one part covers left and right hand openings. For a property manager stocking spares across a building, that means a single line item works on every door the strike suits rather than two.
16) How much abuse will the Trine 005 electric strike take, and is it enough for an apartment entry?
Rated at 500,000 life cycles with 1,000 lbs of holding force, and there is only one moving part in the locking mechanism plus a heavy duty latch spring. Trine classes it as light commercial, so it suits moderate traffic openings like an apartment entry, an office suite door or a storage room. For a high traffic main entrance or anywhere you need a Grade 1 heavy duty strike, step up to something like the Alarm Controls AES-100 or the Von Duprin 4211, both Grade 1 heavy duty.
17) Does the Trine 005 electric strike have a latch monitor or door position output?
The 005 is a plain fail-secure strike, the wiring is coil only, one pair per voltage build. If your access control panel needs to know the latch is captured, choose a strike with monitoring: the Dortronics 3300 has a latch bolt sensing switch, the Hager 2945 has a latchbolt monitor, and the Camden CX-ED1799L-8 is a dual monitor Grade 1 strike.
18) Why does my AC electric strike buzz, and can I get a silent one?
The buzz is the AC coil, and on the 005 it is deliberate, it gives an audible cue that the door is released. On the 005 the 24VAC and the 8-16VAC/4-6VDC builds buzz and are intermittent duty. The 12VDC and 24VDC builds are silent and continuous duty. Order DC if you want a quiet release, AC if you want people to hear it let go.
19) What electric strike works with a 5/8 inch latchbolt like the Trine 005 but runs on 12/24 VDC only?
The Trine 005 is ordered per voltage, in 12VAC, 12VDC, 24VAC, 24VDC, or 8-16VAC/4-6VDC, and it suits bored cylindrical locksets up to 5/8 inch throw. If a single dual-voltage DC part number is preferred, the SDC 15 Series is a 5/8 inch latchbolt electric strike with 12/24 VDC operation, and the Dortronics 3300 Series runs 12/24VDC with a strike plate for ANSI prep. The Dortronics also adds a latch bolt sensing switch if the access control system needs door position feedback.
20) What electric strike should be specified instead of the Trine 005 for a facility standardizing on one universal part?
The Trine 005 is a fixed-faceplate light commercial strike for one prep size. A facility buying one part number for many openings is better served by the Camden CX-ED1410 and CX-ED1420 series, which are universal Grade 1 ANSI fire-rated electric strikes, or the Camden CX-ED1799L-8, a fire rated dual monitor Grade 1 strike supplied with eight faceplates. The Von Duprin 6400 is a Grade 1 modular strike that handles mortise or cylindrical locks from one platform.
21) What is the difference between the Trine 005 and the RCI 15BS electric strike?
Both are fail-secure strikes without a fire rating. The Trine 005 is a light commercial strike for replacement work in wood jambs and iron gates with a 3-1/2 inch x 1-3/8 inch faceplate, sized for bored cylindrical locksets up to 5/8 inch throw. The RCI 15BS is an economy electric strike built specifically for a special offset latch entry, so it is aimed at that offset latch condition rather than a standard bored lockset prep.
22) Can the Trine 005 be used on a pair of doors or with a mortise lock?
The Trine 005 is sized for bored cylindrical locksets with up to 5/8 inch throw in a single wood jamb or iron gate opening. For a mortise lock the Securitron MUNL mortise unlatch strike is a Grade 1 fire rated option, and the Von Duprin 6210 is a Grade 1 heavy duty mortise lock strike, 24 VDC fail-secure with a UL 10C fire rating. For a double door the Rockwood electric strike for double doors with a 3/4 keeper is the Grade 1 fire rated choice.
23) Is the Locknetics MS100 or MDS100 a direct swap for the Trine 005?
Not a like-for-like swap. The Trine 005 is a light commercial strike with a 3-1/2 inch x 1-3/8 inch faceplate for replacement work in wood jambs and iron gates. The Locknetics MS100 and MDS100 are both heavy duty electric strikes, a different duty class, and the Locknetics CS450 is a separate series again. Verify the existing jamb cutout against the strike being ordered rather than assuming the frame prep carries over.
24) What finishes does the Trine 005 electric strike come in?
Two: brass powder coated, ordered as 005, and satin chrome, ordered as 005C, which is BHMA 652. Both are offered in every one of the five voltages. Satin chrome is the one that matches 626/652 hardware already on most commercial openings, brass powder coat suits a brass or bronze trim set.
25) Which wires do I land on the Trine 005 electric strike?
Wire color tracks the voltage build. Black is the 8-16VAC/4-6VDC coil, red and white is 12VDC, red is 24VAC, and black and white is 24VDC. Match the leads to the build you ordered before you power it up, the coil resistances differ widely, 1.4 ohms on the 8-16VAC unit against 125 ohms on 24VDC.
