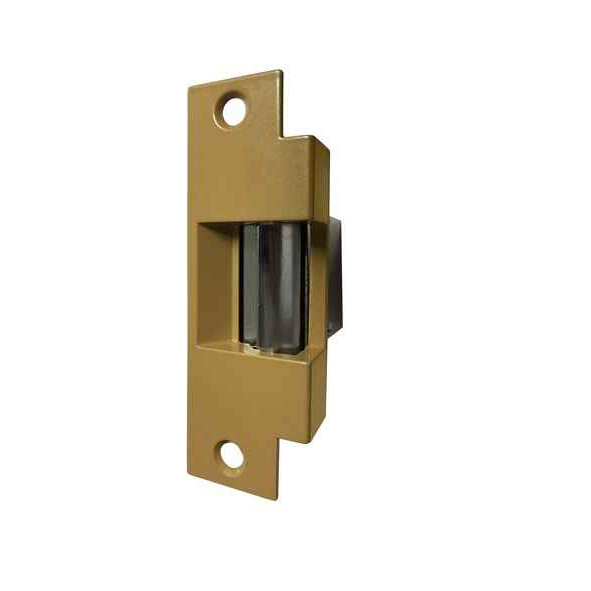

Trine Trine 007 Series - Fail-Secure, Light Commercial Electric Strike 4-7/8” x 1-1/4” Faceplate TRN-007

Trine 007 Series - Fail-Secure, Light Commercial Electric Strike 4-7/8” x 1-1/4” Faceplate

(No reviews yet) Write a Review

Model: 007C-24AC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$122.00
$105.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

00/01 Series Electric Strikes

Light Commercial Strikes

Trine 007
For use in new or replacement installations in wood jambs. Use with locksets having up to 3/4” throw, based on 1/8” door gap.

Face Plate 4-7/8” x 1-1/4” -- Mortise Backset 2-7/8” -- Cavity Depth 5/8” -- Cavity Width 3/4” -- Cavity Height 1-1/2

Available Finishes: 007 (Brass Powder Coated) -- 007C (Satin Chrome -- BHMA652)
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

Voltage Amps Ohms (Ω) Duty Sound Wire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

Downloadable content:

Manufacturer Resources

Product Specs

Series:
7
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Secure
Face Plate:
4-7/8"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 007C-24AC – Frequently Asked Questions

1) What latchbolt throw can the Trine 007 strike accept?
Up to 3/4 inch throw, figured on a 1/8 inch door gap. That covers most cylindrical latches and mortise latchbolts, and the strike is listed for use with either lock type. If your gap runs wider than 1/8 inch the usable throw drops, so measure the gap before you commit. Latches with a longer throw than 3/4 inch need a different strike body, such as the HES Folger Adam 310-1(X), which handles 1/2, 5/8 or 3/4 inch throw latchbolts.
2) Does the Trine 007 strike stay locked or unlock when the power goes out?
It stays locked. The 007 is fail-secure as standard, meaning it unlocks only when power is applied, so a power loss leaves the door secured and free egress still comes from turning the inside lever. Fail-safe operation is available as the RS option on DC models only, added as a suffix to the model number. If you need to switch modes in the field rather than at order time, the Hager 2925, 2928 and 2930 are field reversible fail safe/secure.
3) What voltage do I order the Trine 007 electric strike in, and will it buzz?
Five voltage builds are offered: 8-16VAC/4-6VDC, 12VAC, 12VDC, 24VAC and 24VDC. The AC versions buzz and are intermittent duty, so they're for momentary release on a doorbell or buzzer circuit, not for holding open. The DC versions are silent and continuous duty: 12VDC draws 0.40 amps at 30 ohms, 24VDC draws 0.19 amps at 125 ohms. If the strike sits on an intercom or access control panel and you don't want noise, go DC. The RS fail-safe option is DC only, which is another reason to spec DC up front.
4) Will the Trine 007 drop into an existing 4-7/8 by 1-1/4 inch strike cutout?
The faceplate is 4-7/8 by 1-1/4 inches, the standard ANSI strike opening, so it lines up with an existing prep of that size. What still has to match is the pocket behind it: the 007 needs a cavity 5/8 inch deep, 3/4 inch wide and 1-1/2 inches high, at a 2-7/8 inch mortise backset in a wood jamb. If the old strike sat in a shallower mortise you'll be routing. Other strikes on that same faceplate footprint include the Adams Rite 7100, 7160 and 7170 and the Dortronics 3300, which uses a strike plate for ANSI prep at 4-7/8 by 1-1/4 inches and adds latch bolt sensing.
5) What is the equivalent of a Trine 007 electric strike for an aluminum jamb instead of a wood jamb?
The Trine 007 is built for new or replacement work in wood jambs, so an aluminum storefront jamb calls for a strike designed for that frame. The Adams Rite 7100 Series is an electric strike for aluminum jambs with a flat faceplate measuring 1-1/4 inches by 4-7/8 inches, the same faceplate footprint the Trine 007 uses, and the Adams Rite 7160 is another aluminum-jamb strike with a 1-1/4 inch by 4-7/8 inch faceplate. If the frame is hollow metal or wood, the Adams Rite 7170 covers those jamb materials with the same faceplate size.
6) The Trine 007 is not fire rated - what electric strike should I use on a fire rated door opening?
The Trine 007 carries no fire rating, so a labeled opening needs a strike that does. For a cylindrical lockset, the Adams Rite 7240 is a fire-rated electric strike sized for a 5/8 inch latchbolt projection, and the Von Duprin 4211 is a Grade 1 fire-rated strike for cylindrical locks with 12/24 VDC field-selectable voltage. For a mortise lock, the Von Duprin 6210 is a Grade 1 heavy duty strike rated to UL 10C running on 24 VDC fail-secure. If the opening may take either lock type, the Von Duprin 6400 is a Grade 1 modular fail-secure strike for mortise or cylindrical locks with a 3-hour UL 10C rating in satin stainless steel.
7) Can I use a Trine 007 on an exterior gate, and what should I use instead?
The Trine 007 is not outdoor rated, so an exposed gate or exterior application needs a strike built for it. The Camden CX-ED1959 Series is an outdoor rated electric gate strike. Keep in mind it carries no fire rating, the same as the Trine 007, so it suits a gate or exterior opening rather than a labeled fire door.
8) Which electric strike should I use if I need latch monitoring, since the Trine 007 does not have it?
The Trine 007 has one moving part in the locking mechanism and no monitoring circuit. Where the access control system needs to know the latch state, the Dortronics 3300 Series is an electric strike with a latch bolt sensing switch on 12/24VDC and a strike plate for ANSI prep at 4-7/8 inches by 1-1/4 inches, the same faceplate dimensions as the Trine 007. The Hager 2945 is a fire-rated rim exit strike with a latchbolt monitor, and the Camden CX-ED1799L-8 is a Grade 1 fire-rated dual monitor strike supplied with 8 faceplates.
9) Will a Trine 007 work with a surface vertical rod exit device or a rim exit device?
The Trine 007 is set up for locksets with up to a 3/4 inch throw latch, mortise or cylindrical. Exit devices take a different strike. For surface vertical rods, the HES Folger Adam 310-4-2 is a complete Grade 1 electric strike pac built for that application. For a rim exit device, the Hager 2945 is a fire-rated rim exit strike with field selectable fail safe or fail secure and a latchbolt monitor, and the SDC 30-4 is a rim mount strike for a 3/4 inch Pullman latchbolt. For a pair of doors, the Rockwood electric strike for double doors uses a 3/4 keeper and is Grade 1 fire rated.
10) The Trine 007 fail-safe option is DC only - what strike lets me switch between fail safe and fail secure in the field?
The Trine 007 ships fail-secure as standard action, unlocking with power, and the RS fail-safe option applies on DC only. Strikes built for field-selectable operation include the Hager 2925, which has a 5/8 inch latch and field reversible fail safe or fail secure operation, and the Hager 2928, also field reversible. For a fire-rated opening with the same field reversible operation, the Hager 2930 is a Grade 1 fire-rated strike for cylindrical and mortise locks with 12/24 VDC dual voltage, and the Hager 2945 is a fire-rated rim exit strike with field selectable fail safe or fail secure plus a latchbolt monitor.
11) The Trine 007 takes up to a 3/4 inch throw latch - what strikes handle other latchbolt projections?
The Trine 007 works with locksets having up to a 3/4 inch throw, based on a 1/8 inch door gap, and accepts mortise or cylindrical locks. For other latch projections, the SDC 15 Series is a 5/8 inch latchbolt strike with 12/24 VDC operation, the SDC 25 Series covers a 1/2 inch latchbolt, and the SDC 30-4 is a rim mount strike for a 3/4 inch Pullman latchbolt in stainless steel construction. The HES Folger Adam 310-1(X) strike body accepts 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts in one Grade 1 fire-rated body.
12) I do not want to cut the jamb for a strike - is there an alternative to the Trine 007?
The Trine 007 requires a mortise cavity in the jamb, 5/8 inch deep by 3/4 inch wide by 1-1/2 inch high with a 2-7/8 inch mortise backset. Where cutting the frame is not an option, the Locknetics NC450 is a no cut electric strike. The Camden CX-ED1689L-4 is a fire-rated low profile universal strike supplied with 4 faceplates, which helps when the existing jamb prep does not match a single fixed faceplate.
13) Which electric strikes look like a Trine 007 replacement but are not?
Two things in the set read like substitutes and are not. The HES 1500 and HES 1600 items are electric strike accessories for those Grade 1 fire-rated series, not complete strike bodies, so neither replaces a Trine 007 on its own. The HES Folger Adam 310-1(X) is a strike body sold for 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts rather than a full assembly. The RCI 15BS is a fail-secure economy strike like the Trine 007, but it is made for a special offset latch entry rather than a standard 2-7/8 inch mortise backset wood jamb prep, so confirm the latch geometry before treating it as a drop-in.
14) Do I have to specify handing when ordering a Trine 007 electric strike?
No handing to call out. The 007 is non-handed, so one part covers left and right hand openings, which is useful if you're stocking spares across a building rather than matching each door. You do specify finish and voltage: brass powder coated (007) or satin chrome BHMA 652 (007C), and one of the five voltages.
15) Is the Trine 007 strike strong enough for an apartment building entry door?
For light commercial traffic, yes. The 00 Series mechanism is rated at 500,000 cycles with 1,000 lbs holding force and uses a single moving part in the locking mechanism, with a heavy duty latch spring. That suits multi-family entries, offices, and interior wood jamb openings. For a high-abuse door or where a Grade 1 heavy duty strike is specified, the Alarm Controls AES-100 and the Locknetics MDS100 and MS100 are heavy duty strikes.
16) I need a Grade 1 heavy duty electric strike instead of a light commercial one - what are my options?
The Trine 007 is a light commercial strike rated at 500,000 life cycles with 1000 lbs holding force. Where a heavier duty rating is specified, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, and the Securitron MUNL Mortise UnLatch strike is Grade 1 and fire rated. Locknetics offers heavy duty strikes in the MDS100 and the MS100, both in a US32D finish. The Von Duprin 4211, 6210 and 6400 are all Grade 1 heavy duty as well.
17) I need to standardize electric strikes across a facility with mixed jamb preps - what covers the most openings?
The Trine 007 is fixed to one prep: a 4-7/8 inch by 1-1/4 inch faceplate with a 2-7/8 inch mortise backset in wood jambs. For a fleet of mixed openings, the Camden CX-ED1410 and CX-ED1420 Series are universal Grade 1 ANSI fire-rated strikes, the Camden CX-ED1799L-8 is a Grade 1 fire-rated dual monitor strike shipped with 8 faceplates, and the Von Duprin 6400 is a Grade 1 modular strike that handles mortise or cylindrical locks with a 3-hour UL 10C fail-secure rating.
18) I need a silent electric strike - does the Trine 007 buzz, and what is a quiet alternative?
The Trine 007 is silent on its continuous duty DC options, 12VDC at 0.40 amps and 24VDC at 0.19 amps, and buzzes on the intermittent AC options at 24VAC and 8-16VAC/4-6VDC. If the design calls for DC operation from the start, the SDC 15 Series runs 12/24 VDC with a 5/8 inch latchbolt, the Dortronics 3300 Series runs 12/24VDC with latch bolt sensing, and the Von Duprin 6210 is a 24 VDC fail-secure mortise strike. The Von Duprin 4211 and the Hager 2930 are both 12/24 VDC field selectable.
19) What is the closest fire-rated strike with a radius corner faceplate if the Trine 007 square faceplate does not match my frame?
The Trine 007 uses a square corner faceplate measuring 4-7/8 inches by 1-1/4 inches. Frames prepped with a radius corner cutout need a matching plate. The SDC 45F Series is a fire-rated electric strike with a radius corner faceplate and 5/8 inch latchbolt compatibility. Where the existing prep is uncertain, the Camden CX-ED1689L-4 ships with 4 faceplates and the Camden CX-ED1799L-8 ships with 8, both fire rated.
20) Which wires do I land on a 12VDC Trine 007 strike?
On the 00 Series, the 12VDC coil is the red/white lead pair and the 24VDC is black/white. The 8-16VAC/4-6VDC unit uses black, and 24VAC uses red. Each 007 is built for one voltage, so identify the unit before you wire it rather than assuming a dual-voltage board. The DC coils are continuous duty and silent; AC is intermittent and buzzes.
21) Which finish of the Trine 007 matches satin chrome hardware on the rest of the doors?
Order the 007C, satin chrome, BHMA 652. The other choice is 007 in brass powder coat. Both finishes are offered in all five voltages, so matching the building's existing trim doesn't limit how you power the strike.
22) The Trine 007 comes in satin chrome BHMA652 - what other strikes come in a matching satin finish?
The Trine 007 is offered in brass powder coated and in satin chrome to BHMA 652, across 12VAC, 12VDC, 24VAC, 24VDC and 8-16VAC/4-6VDC. For openings where the rest of the hardware is satin stainless, the Locknetics CS450 comes in 32D, and the Locknetics MDS100, MS100 and NC450 are all catalogued in US32D. The Von Duprin 4211 and 6400 are offered in 32D, with the 6400 described as satin stainless steel.
