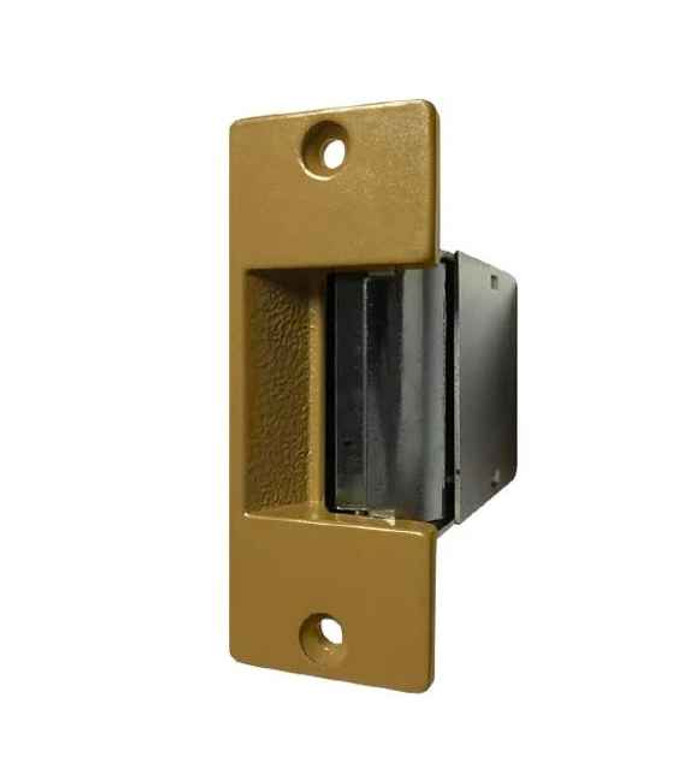

Trine S005RS Series - Fail-Safe, Light Commercial Electric Strike 3-1/2” x 1-3/8” Faceplate

Trine S005RS Series - Fail-Safe, Light Commercial Electric Strike 3-1/2” x 1-3/8” Faceplate

(No reviews yet) Write a Review

Model: S005RS-24DC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$109.00
$91.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

00/01 Series Electric Strikes

Light Commercial Strikes

Trine S005
For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 3/4” throw, based on 1/8” door gap.

Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-7/8” -- Cavity Depth 5/8” -- Cavity Width 23/32” -- Cavity Height 1-1/2”

Available Finishes: S005 (Brass Powder Coated) -- S005C (Satin Chrome or - BHMA652)
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

Voltage Amps Ohms (Ω) Duty Sound Wire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

Downloadable content:

Manufacturer Resources

Product Specs

Series:
S005
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Safe
Face Plate:
3-1/2"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine S005RS-24DC – Frequently Asked Questions

1) What kind of jamb and lock does the Trine S005 strike mount into?
It is built for replacement installations in wood jambs and iron gates, and works with bored cylindrical locksets with up to a 3/4 inch latch throw based on a 1/8 inch door gap. The mortise cut is 2-7/8 inch backset, with a cavity 5/8 inch deep, 23/32 inch wide and 1-1/2 inch high, behind a 3-1/2 by 1-3/8 inch faceplate. For an aluminum jamb you'd be looking at something like the Adams Rite 7100 instead.
2) Does fail-safe mean the door unlocks in a power failure?
Yes. With the RS option the strike releases when power is removed, so the opening is free to push open on a power loss. That is the reverse of the standard 00 Series action, which is fail-secure and unlocks only when power is applied. Pick fail-safe where egress or emergency release matters, fail-secure where you want the door to stay locked if power drops.
3) What voltage should I order the Trine S005RS in, and will it run continuous duty?
The fail-safe RS option is DC only, and it is offered in 12 VDC and 24 VDC. Both DC configurations are continuous duty and silent, drawing 0.40 amps at 12VDC (30 ohms) or 0.19 amps at 24VDC (125 ohms). The AC configurations in the 00 Series are intermittent duty and buzz, so they are not an option on a fail-safe unit.
4) Do I need to cut a new jamb prep for the Trine S005, or does it drop into an existing one?
It is intended for replacement installations, so it goes into an existing cut in a wood jamb where the prep matches: 2-7/8 inch mortise backset, cavity 5/8 inch deep by 23/32 inch wide by 1-1/2 inch high, with a 3-1/2 by 1-3/8 inch faceplate. Measure the old cutout against those numbers first. If the prep does not match and you want to avoid cutting, the Locknetics NC450 is a no-cut strike.
5) The Trine S005RS is not fire rated - what electric strike works on a fire-rated opening with a cylindrical lock?
The Trine S005RS carries a Fire Rating of No, so it is meant for non-rated wood jambs and iron gates. For a labeled opening with a bored cylindrical lockset, the Adams Rite 7240 is a fire-rated electric strike for cylindrical locksets with 5/8 inch latchbolt projection, and the Von Duprin 4211 32D is a Grade 1 fire-rated heavy duty strike for cylindrical locks with 12/24 VDC field-selectable voltage. The Hager 2930 is a fire-rated Grade 1 strike for both cylindrical and mortise locks with 12/24 VDC dual voltage.
6) What is the closest fail-safe alternative to the Trine S005RS if I want the option to switch to fail-secure later?
The S005RS is factory fail-safe on DC only. If you want the mode decided in the field instead, the Hager 2925 is an electric strike with a 5/8 inch latch and field reversible fail safe/fail secure operation, and the Hager 2928 offers the same field reversible fail safe/secure function. The Hager 2945 is a fire rated rim exit strike with field selectable fail safe/fail secure and a latchbolt monitor, which suits a rim exit device rather than a bored cylindrical lock.
7) My jamb is aluminum storefront, not wood - is the Trine S005RS the right strike?
No. The S005RS uses a 3-1/2 inch x 1-3/8 inch faceplate sized for replacement work in wood jambs and iron gates. Aluminum storefront jambs take a narrow ANSI-style faceplate: the Adams Rite 7100 Series and the Adams Rite 7160 are electric strikes for aluminum jambs with a 1-1/4 inch x 4-7/8 inch faceplate. For hollow metal or wood jambs with that same narrow faceplate, the Adams Rite 7170 applies.
8) The Trine S005RS is a light commercial strike - what do I use on a high-traffic Grade 1 opening instead?
The S005RS is described as a light commercial strike for replacement installations. Where the specification calls for Grade 1 heavy duty, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, the Locknetics MDS100 US32D and MS100 US32D are heavy duty strikes, and the Von Duprin 6400 32D is a Grade 1 modular heavy duty strike for mortise or cylindrical locks in satin stainless steel.
9) My door has a surface vertical rod or rim exit device, not a cylindrical lock - will the Trine S005RS work?
No. The S005RS is intended for bored cylindrical locksets with up to 3/4 inch throw based on a 1/8 inch door gap. For exit device hardware, the HES Folger Adam 310-4-2 is a complete electric strike pac for surface vertical rods, and the SDC 30-4 Series is a rim mount strike for a 3/4 inch Pullman latchbolt in stainless steel. The Hager 2945 covers rim exit devices on a fire rated opening.
10) Is there an electric strike that avoids cutting the jamb, unlike the Trine S005RS?
The S005RS requires a cavity 5/8 inch deep, 23/32 inch wide and 1-1/2 inch high behind a 3-1/2 inch x 1-3/8 inch faceplate, so the jamb has to be prepped. The Locknetics NC450 US32D is a no cut electric strike, and the Locknetics CS450-32D is another CS Series option for retrofit work.
11) Is the Trine S005 strike handed? I'm not sure which way my door swings.
No handing to specify. The 00 Series locking mechanism is non-handed, so one part covers left or right hand openings, which is useful if you are standardizing across a building with mixed swings.
12) Is the Trine S005 tough enough for an apartment entry that gets used all day?
It is a light commercial strike rated at 500,000 life cycles with 1,000 lbs holding force, and only one moving part in the locking mechanism. That suits light commercial and multi-family entries. For a high abuse opening, ZenSupply carries heavy duty Grade 1 units such as the Alarm Controls AES-100 or the Locknetics MDS100.
13) Can I install the Trine S005 on an exterior gate exposed to weather?
It is listed for use in iron gates, but the S005 is not outdoor rated, so weather exposure is outside what it is built for. For a genuinely exposed gate, the Camden CX-ED1959 Series is an outdoor rated gate strike.
14) My existing latch is only a 5/8 inch throw. Will the Trine S005 still catch it?
Yes. The S005 is specified for bored cylindrical locksets with up to 3/4 inch throw at a 1/8 inch door gap, so a shorter 5/8 inch latch falls inside that range. What matters is that you do not exceed 3/4 inch and that your gap is close to 1/8 inch, since a wider gap eats into effective latch engagement.
15) If I do not know which faceplate the existing jamb prep will take, what strike gives me more options than the Trine S005RS?
The S005RS comes with one fixed 3-1/2 inch x 1-3/8 inch faceplate, so the prep has to match. Universal kits ship with multiple plates instead: the Camden CX-ED1689L-4 is a fire rated universal low profile strike supplied with 4 faceplates, and the Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike supplied with 8 faceplates. The Camden CX-ED1410/ED1420 Series are universal Grade 1 ANSI fire-rated strikes as well.
16) I need latch monitoring on the door - does the Trine S005RS offer it, and what does if not?
The S005RS is a mechanical strike body with a single moving part in the locking mechanism and no monitoring output described. For a monitored opening, the Dortronics 3300 Series includes a latch bolt sensing switch and runs 12/24VDC with a strike plate for ANSI prep at 4-7/8 in x 1-1/4 in. The Camden CX-ED1799L-8 is a dual monitor Grade 1 strike, and the Hager 2945 adds a latchbolt monitor on a rim exit application.
17) What is a simpler, no-frills alternative to the Trine S005RS for a basic access control door?
The S005RS is already a light commercial strike sized for replacement work. Other value-line bodies include the SDC 15 Series with 5/8 inch latchbolt and 12/24 VDC operation, the SDC 25 Series for 1/2 inch latchbolt, and the RCI 15BS economy electric strike for special offset latch entry with fail-secure operation. Note the RCI 15BS is fail-secure, where the S005RS is fail-safe.
18) What strike should I specify for a mortise lock if the Trine S005RS is being used on the cylindrical doors?
The S005RS is listed for mortise or cylindrical lock use with a 2-7/8 inch mortise backset and a 3/4 inch maximum latch throw. Where a dedicated mortise strike is wanted, the Securitron MUNL Mortise UnLatch is a Grade 1 fire rated mortise strike, and the Von Duprin 6210 is a Grade 1 heavy duty strike for mortise locks at 24 VDC fail-secure with UL 10C fire rating. The HES Folger Adam 310-1(X) body accepts 1/2, 5/8 or 3/4 inch throw latchbolts and is Grade 1 fire rated.
19) Can the Trine S005RS be used on a pair of doors with a 3/4 inch keeper?
The S005RS accepts bored cylindrical latches with up to 3/4 inch throw, but it is a single non-handed strike body for wood jambs and iron gates. For a double door application with a 3/4 keeper, the Rockwood electric strike for double doors is a Grade 1 fire rated 310-1 Series unit built for that condition.
20) I have an existing HES 1500 or 1600 strike in the frame - can I swap in the Trine S005RS?
Treat them as different products rather than a drop-in swap. The S005RS carries a 3-1/2 inch x 1-3/8 inch faceplate with a 2-7/8 inch mortise backset for wood jambs and iron gates, and it is not fire rated. The HES 1500 and 1600 lines are Grade 1 fire rated series, and their accessory parts are sold as 1500 Series and 1600 Series items to keep those frames in kind.
21) The Trine S005RS runs on 12 VDC or 24 VDC - which alternatives cover both voltages in one unit?
The S005RS is ordered as a specific voltage, in 12 VDC or 24 VDC, and its fail-safe RS option is DC only. If you would rather select voltage at install, the Von Duprin 4211 32D is 12/24 VDC field-selectable, the Hager 2930 is 12/24VDC dual voltage, the SDC 15 Series offers 12/24 VDC operation, and the Dortronics 3300 Series runs 12/24VDC.
22) I need a radius corner faceplate on a fire rated frame - is the Trine S005RS available that way?
The S005RS uses a flat 3-1/2 inch x 1-3/8 inch faceplate and is not fire rated. For a radius corner plate on a rated opening, the SDC 45F Series is a fire-rated electric strike with 5/8 inch latchbolt compatibility and a radius corner faceplate.
23) What finishes does the Trine S005 come in and will it match satin chrome hardware?
Two finishes: brass powder coated, and satin chrome (626, also called BHMA 652). The satin chrome version orders as S005C and matches the usual satin chrome and brushed stainless trim on commercial openings.
